Rigid-Flex PCB | PCB Supplier

  1. Supplier:Kingsheng PCBA
  2. Product Name:Rigid-Flex PCB
  3. Layers: 1-16L
  4. Surface Finishing: ENIG
  5. Min track space&width: 0.05 mm
  6. Min mechanical drill size: 0.2mm
  7. Molding Tolerance: +/-0.05mm
  8. PCBA Lead time: 3-4 weeks

Description

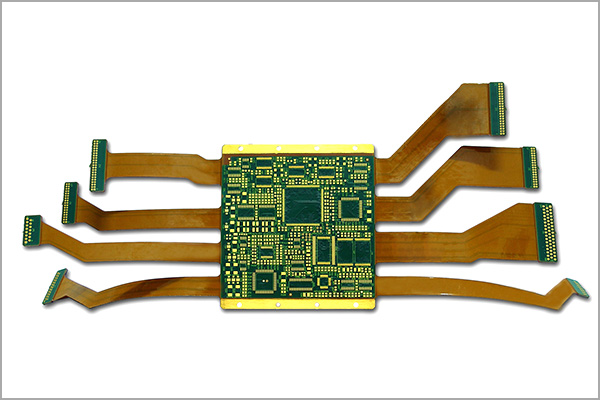

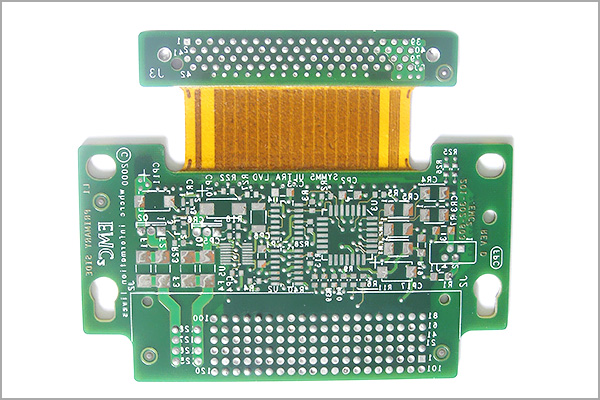

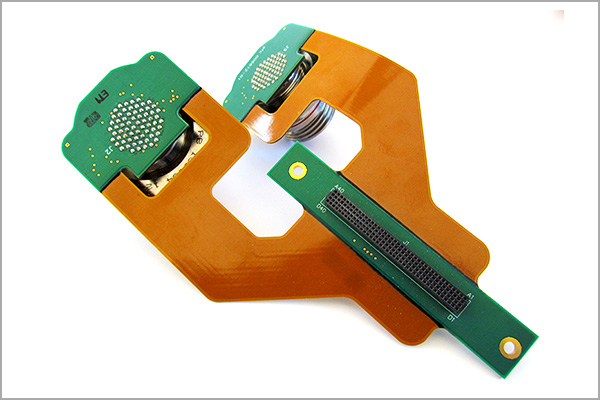

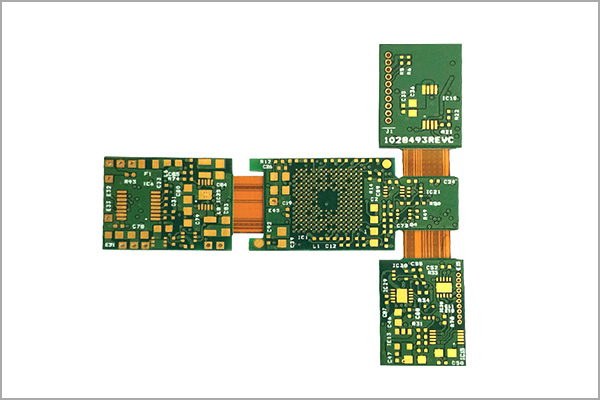

Rigid-Flex PCB



The birth and development of FPC and PCB has given birth to the new product of Rigid-Flex PCB.The Rigid-Flex PCB is rigid pcb and flexible pcb,through pressing and other processes, according to the relevant technological requirements combined together,formed with FPC characteristics and PCB characteristics of the circuit board.

The characteristics of Rigid-Flex PCB determine its application field covers all application fields of FPC and PCB, such as communication, smart home, optoelectronics, industrial control, medical equipment, automotive and consumer electronics.



Advantages



Advantages of Rigid-Flex PCB has both the characteristics of the FPC and the characteristics of the PCB. Therefore, it can be used in some products with special requirements, both a certain flexible area and a certain rigid area, which is of great help to save product internal space, reduce finished product volume and improve product performance.


Services



KingshengPCBA focuses on multi-layer and rigid-flex PCB combined technologies with high aspect ratios and layers. Whether you need a basic single-sided flexible circuit or a complex multi-layer rigid-flex solution, we can provide the help you need to bring your idea to market. From flexible and rigid-flex circuit design to layout, circuit board fabrication or fully assembled flexible or rigid-flex circuit solutions.Our products covers 60 layers Single-sided flex,multi-layer rigid-flex,cross-layer flex,blind holes and buried holes.
