tht

Kingsheng's THT assembly service is suitable for applications that require high reliability and strength, such as industrial control systems, power supplies, and automotive electronics. They have the capability to handle both manual and automated through-hole component insertion, depending on the specific requirements of the project.

Kingsheng's THT assembly process adheres to strict quality standards to ensure that the final product meets customer expectations. They conduct thorough testing and inspection throughout the assembly process, including visual inspection, X-ray inspection, and functional testing.

The Benefits of THT Assembly Service

High reliable DIP for assembly

Ease to repair and replace

Compatibility with legacy components


Many older electronic devices still use through-hole components, making THT assembly a suitable option for repairing or upgrading these devices.

Kingsheng THT Assembly Process

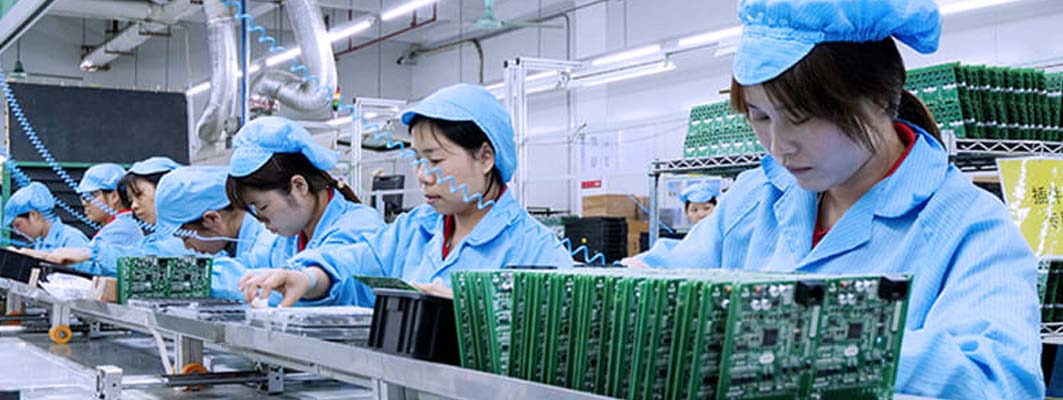

Component Insertion

Many older electronic devices still use through-hole components, making THT assembly a suitable option for repairing or upgrading these devices.

assembly-pcb


Soldering

After the components have been inserted, the next step is to solder them in place. This can be done either manually or using automated equipment. During the soldering process, a soldering iron or wave soldering machine is used to heat the solder and fuse the component leads with the PCB pads.

assembly-pcb


Inspection

Once the components have been soldered in place, the assembly undergoes a thorough inspection to verify that all components are properly aligned and soldered. This includes visual inspections and electrical tests to confirm that the connections are sound and functional.

assembly-pcb


Cleaning

After inspection, the assembly is cleaned to remove any flux residues or other contaminants that may remain from the soldering process. This improves the long-term reliability of the assembly.

assembly-pcb


Packaging

Finally, the assembled PCBs are packaged and shipped to the customer or production line.

assembly-pcb
