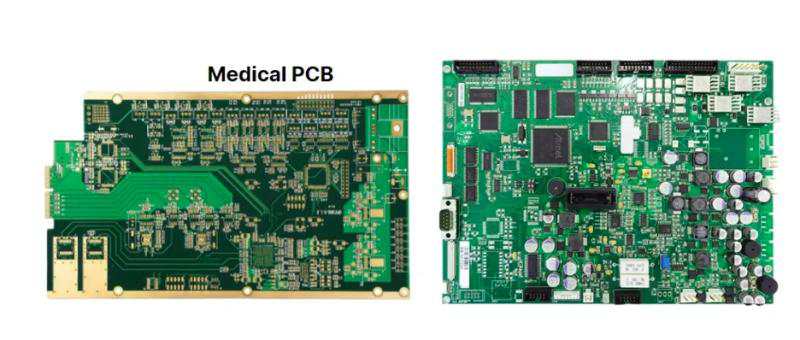

Medical devices play a critical role in patient care, diagnostics, and treatment, making Printed Circuit Board Assemblies (PCBA) a vital component in ensuring reliability, safety, and performance. Unlike consumer electronics, medical PCBA must adhere to strict regulatory standards to prevent failures that could endanger lives.

At C-alley, we specialize in manufacturing medical-grade PCBA with a focus on precision, traceability, and regulatory compliance. In this blog, we will explore the key standards for medical device PCBA and how we meet these requirements to deliver safe and high-performance solutions.

1. Critical Standards for Medical Device PCBA

1.1 ISO 13485: Quality Management for Medical Devices
Requirement: Ensures consistent design, production, and servicing of medical devices.
Our Compliance:
Full documentation control (DQ, IQ, OQ, PQ validation).
Risk management (ISO 14971) integrated into production.
Regular audits to maintain certification.

1.2 IEC 60601-1: Electrical Safety & EMC
Requirement: Covers electrical safety, insulation, and electromagnetic compatibility (EMC).
Our Compliance:
Isolation testing (creepage & clearance distances).
EMC shielding (to prevent interference with other devices).
Leakage current testing (ensuring patient safety).

1.3 FDA 21 CFR Part 820 (US Market) & EU MDR (Europe)
Requirement: Mandates design controls, production processes, and post-market surveillance.
Our Compliance:
Strict change control procedures (no unauthorized modifications).
Full device history records (DHR) for traceability.
Biocompatibility testing (if PCBA contacts patients).

1.4 IPC-A-610 Class 3 & IPC-J-STD-001: High-Reliability Soldering
Requirement: Defines acceptability criteria for medical-grade soldering.
Our Compliance:
Class 3 soldering standards (zero defects in critical areas).
Automated Optical Inspection (AOI) & X-ray inspection for hidden defects.
Conformal coating for moisture and chemical resistance.

1.5 RoHS & REACH: Material Safety Compliance
Requirement: Restricts hazardous substances (lead, mercury, etc.).
Our Compliance:
Lead-free soldering (SAC305 alloy).
Supplier material declarations to ensure compliance.

2. Unique Challenges in Medical PCBA & Our Solutions

2.1 High Reliability & Zero Defects
Challenge: Medical devices cannot afford failures (e.g., pacemakers, ventilators).
Our Solution:
100% electrical testing (ICT, functional testing).
Burn-in testing to detect early failures.

2.2 Sterilization & Biocompatibility
Challenge: Some devices require autoclaving, gamma radiation, or ethylene oxide sterilization.
Our Solution:
Material selection (high-temperature resistant substrates).
Hermetic sealing for implantable devices.

2.3 Long Product Lifecycles (10+ Years)
Challenge: Medical devices must remain functional for years without obsolescence.
Our Solution:
Component lifecycle management (avoiding EOL parts).
Long-term supply agreements with trusted vendors.

2.4 Cybersecurity for Connected Devices
Challenge: IoT-enabled medical devices (e.g., insulin pumps) face hacking risks.
Our Solution:
Secure firmware design (encryption, secure boot).
Penetration testing (IEC 62443 compliance).

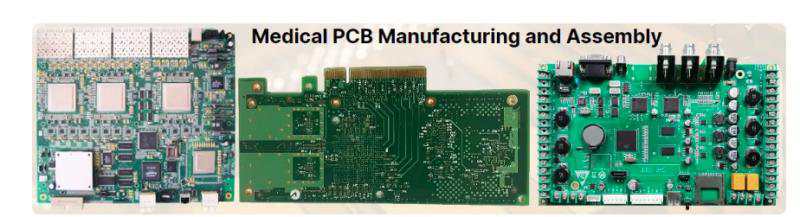

3. Our Manufacturing & Testing Capabilities

3.1 Cleanroom Assembly (For Implantable Devices)
ISO Class 8 cleanroom to prevent contamination.

3.2 Advanced Inspection & Testing
AOI, X-ray, flying probe testing for defect detection.
Environmental stress testing (thermal cycling, humidity).

3.3 Full Traceability & Documentation
Lot tracking, UDI (Unique Device Identification) compliance.
FDA/EU MDR-ready technical files.

4. Case Study: Successful Medical PCBA Projects

(Example: Patient monitoring system PCBA with IEC 60601-1 compliance.)

5. Conclusion

Medical device PCBA must meet the highest standards of safety, reliability, and regulatory compliance. At C-alley, we combine strict process controls, advanced testing, and industry expertise to deliver medical-grade PCBA solutions that healthcare providers can trust.

Partner with us for your next medical electronics project—where precision saves lives!
