Automotive Car PCB: High-Reliability Solutions for Vehicle Electronics

Product Overview & Key Features
Automotive Car PCBs are critical components in modern vehicles, powering everything from engine control units (ECUs) to infotainment systems, ADAS (Advanced Driver Assistance Systems), and battery management systems (BMS). Our high-performance automotive-grade PCBs are designed to meet stringent industry standards, ensuring durability, thermal stability, and resistance to harsh automotive environments.

Applications in Modern Vehicles

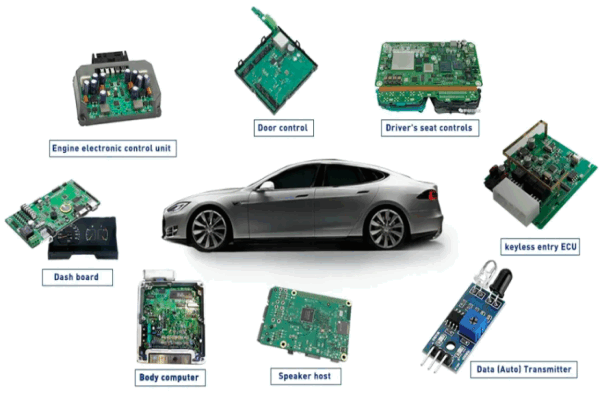

• Engine & Transmission Control Modules (ECM/TCM)
• ADAS (Radar, LiDAR, Camera PCBs)
• EV Battery Management Systems (BMS)
• Infotainment & Telematics Systems
• LED Lighting & HVAC Controls

Why Choose Our Automotive PCBs?

• High-Temperature Resistance – Made with FR-4 High-Tg (≥170°C) and polyimide materials for extreme heat conditions
• Vibration & Shock Resistance – Reinforced structural integrity for long-term reliability
• High-Frequency Signal Integrity – Optimized for RF and high-speed digital circuits (CAN, LIN, FlexRay)
• Automotive Compliance – Meets AEC-Q100, IPC-6012DA, and IATF 16949 standards
• Customization Options – Supports rigid, flex, and rigid-flex PCB designs

Automotive PCB Manufacturing Process
1. Design & DFM (Design for Manufacturing) Review

• Signal integrity analysis (HyperLynx, Altium)
• Thermal & mechanical stress simulations
• EMI/EMC optimization

2. Multi-Layer Lamination & Drilling

• Laser drilling (≤100µm microvias for HDI PCBs)
• Sequential lamination for 6-20 layer boards

3. Plating & Etching

• Copper electroplating (uniform thickness control)
• LDI (Laser Direct Imaging) for fine-line traces (≤3/3 mil)

4. Solder Mask & Silkscreen

• High-Tg LPI (Liquid Photomiageable) solder mask
• Automated optical inspection (AOI) for defect detection

5. Final Testing & Quality Control

• Automated Flying Probe Test (100% electrical continuity)
• Thermal cycling (-40°C to +125°C, 500 cycles)
• Vibration & shock testing (MIL-STD-202G)

Critical Manufacturing Considerations
1. Thermal Management

• Copper-filled vias for heat dissipation
• Metal-core PCBs (MCPCBs) for LED lighting & power modules

2. Vibration & Mechanical Stress Resistance

• Reinforced edge plating for connector durability
• Flex-rigid designs for moving parts (e.g., steering systems)

3. High-Speed Signal Integrity

• Impedance control (±10%) for CAN, Ethernet, and radar PCBs
• Buried capacitance materials for noise reduction

4. Environmental Protection

• Conformal coating (silicone, acrylic, or polyurethane)
• IP67-rated enclosures for outdoor modules

Quality Assurance & Industry Compliance
1. Testing Standards

• AEC-Q100 – Automotive-grade component reliability
• IPC-6012DA – Automotive PCB performance requirements
• ISO 16750 – Environmental & electrical endurance

2. In-House Testing Methods

• X-ray inspection for BGA & via integrity
• Cross-section analysis for plating quality
• HALT (Highly Accelerated Life Testing)

3. Traceability & Documentation

• Full material certifications (UL, RoHS, REACH)
• Lot tracking & failure analysis reports

How to get a quote for automotive PCBs
Let us run DFM/DFA analysis for you and get back to you with a report. We require the following information in order to give you a quote:

• Gerber, ODB++ or IPC-2581
• BOM if you require assembly
• Quantity
• Turn time
