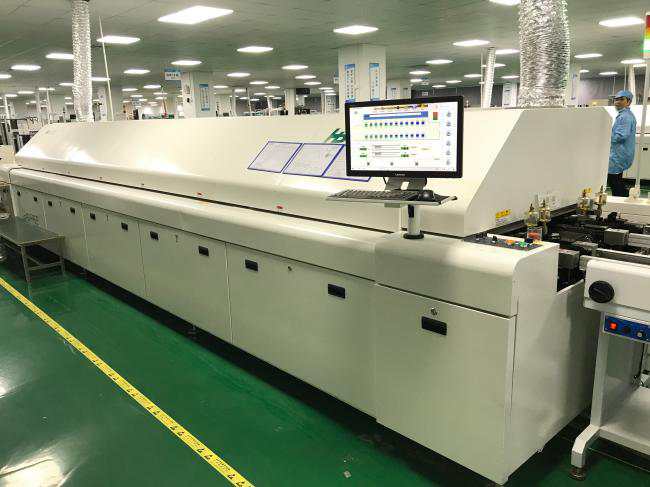

Why Kingsheng Choose to Equip Twelve-zone Lead-free Nitrogen Reflow Soldering Oven to Control SMT Soldering Quality?

Currently, twelve-zone lead-free nitrogen reflow soldering is one of the Top Configurations in SMT (Surface Mount Technology) production lines, which is backed by a comprehensive consideration of high quality, high reliability, high efficiency, and environmental protection requirements. It can be understood from three core aspects: “Twelve-Zone,” “Lead-Free,” and “Nitrogen Environment.”

1.Why “Twelve-Zone”?

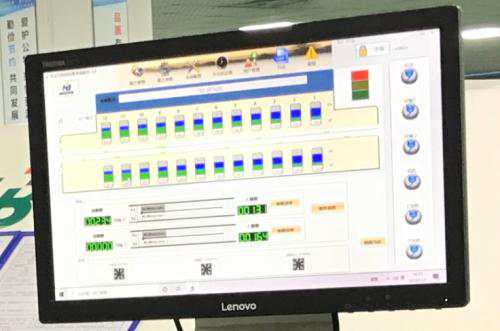

The number of temperature zones is a key indicator of reflow oven performance. Traditional ovens may only have 4, 6, or 8 temperature zones, while 12 zones provide unparalleled process control precision.

More precise temperature profile control:
Components on a PCB vary in size, from tiny 0402 resistors to large BGA (Ball Grid Array) chips. Their thermal capacity and heat demand differ significantly. Engineers can set a very precise and smooth heating, soaking, and cooling curve with 12 temperature zones.
The preheating ramp rate can be precisely controlled to prevent thermal shock from causing component cracking or the ceramic capacitors to develop micro-cracks.
A sufficiently long and stable soaking zone (activation zone) is provided to ensure that the flux in the solder paste is fully activated and oxides are effectively removed.
The temperature in the reflow zone can be strictly controlled to ensure that all solder joints reach a sufficient temperature for metallurgical bonding and prevent any area from overheating and damaging the components or PCB.
The cooling zone rate can also be precisely managed; rapid cooling forms a finer solder joint grain structure, thereby improving solder joint mechanical strength and reliability.

Excellent Process Compatibility:
12 temperature zones enables perfect processing of complex, high-density, mixed-assembly (featuring a wide range of component sizes) PCB boards, ensuring ideal temperature requirements across every region of the board.
It easily handles the higher melting points of lead-free solder and narrower process windows (which will be detailed below).
It is compatible with various special processes, such as underfill curing and the soldering of shielding frames requiring specific temperature profiles.

Enhance Production Efficiency and Yield:

Precise control means fewer soldering defects, such as cold solder joints, insufficient solder, tombstoning, solder balls, oxidation, etc., directly improving First Pass Yield and reducing rework costs and time.
Although the equipment itself is more expensive, higher yield and less scrap may result in lower overall production costs.

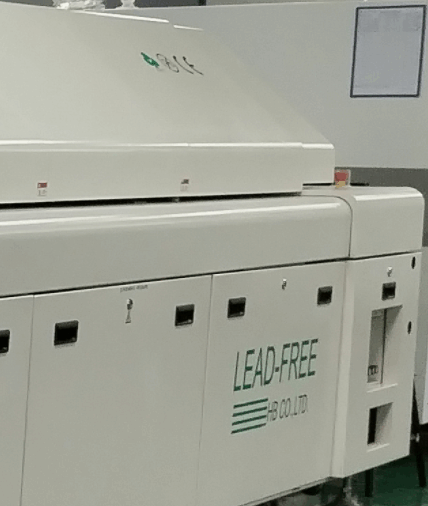

2.Why "Lead-Free"?

This is based on global environmental regulations and market demands.

Environmental and Regulatory Requirements (RoHS):
Lead (Pb) in traditional lead-based solder (Sn63/Pb37) is a heavy metal harmful to the environment and human health. The European Union's Restriction of Hazardous Substances (RoHS) and similar regulations in other countries and regions explicitly restrict the use of lead in electronic products.
Adopting lead-free processes is a mandatory requirement for products to enter the global market, especially the European and American markets.

Technical Challenges and Requirements:
Lead-free solder (e.g., SAC305, with a composition of Sn96.5/Ag3.0/Cu0.5) has a higher melting point (approximately 217°C vs.leaded solder at 183°C), and a narrower process window (a smaller temperature range from melting to component damage).
This places extremely high demands on the heating capability and temperature control precision of reflow soldering equipment. Older reflow ovens with fewer heating zones struggle to stably achieve and control such high temperatures, whereas 12-zone ovens are developed precisely to address this challenge.

3.Why "nitrogen (N₂) environment"?

Nitrogen is injected into the reflow oven chamber (typically, oxygen content is controlled below 1000 ppm, high-end applications even requires <100 ppm); the main purpose is to create a low-oxygen inert environment.

Significantly reduce oxidation, improve solder joint quality:
When soldering in air, molten tin rapidly oxidizes, forming dross, which affects the fluidity of liquid tin.
A nitrogen atmosphere can significantly reduce the oxidation of solder pads, component leads, and the solder itself, thereby leading to lower surface tension of molten solder and better wettability.
Better wettability means that solder can better climb and wrap around component leads, forming fuller, brighter, and stronger solder joints. This is crucial for products with extremely high reliability requirements (such as automotive electronics, aerospace, medical equipment).

Eliminate certain soldering defects:
Excellent wettability can effectively prevent defects such as tombstoning and cold solder joints, especially for tiny chip components (such as 01005, 0201).

Compatible with advanced packaging and special solder pastes:
Many modern advanced packaging technologies (such as PoP stacked packaging) and specially formulated solder pastes (such as certain low-residue no-clean solder pastes) must be used in a nitrogen atmosphere to achieve good soldering results.

Save Solder Paste Cost:
Due to improved wettability in a nitrogen environment, less solder paste can sometimes be used (e.g., by reducing stencil aperture size) to achieve the same soldering results, thereby saving on expensive lead-free solder paste costs.

Summary: Advantages of a Powerful Combination

The selection of a twelve-zone lead-free nitrogen reflow oven is not driven by a single factor, but by the cumulative effect of all the aforementioned advantages, which aimed at meeting the ultimate pursuit of miniaturization, high density, and high reliability in modern electronic products. Therefore, for Kingsheng PCBA, having rich-experienced PCBA production in the field of smartphones, server motherboards, automotive control systems, medical equipment, and high-end communication equipment, investing in such top-tier equipment is a strategic choice to ensure the product quality, production efficiency, and market competitiveness. It represents the current state-of-the-art in SMT soldering processes.
