In the PCBA manufacturing industry, product quality directly determines the reliability and market competitiveness of electronic equipment. However, the industry generally faces many pain points: design defects lead to high production defect rates, unstable supply chains lead to poor quality of incoming materials, insufficient production process control leads to batch scrapping, and after-sales problems cannot be responded to quickly. These problems not only affect the delivery cycle, but may also damage customer trust.

As a company that has been deeply involved in PCBA manufacturing for 15 years, KINGSHENG PCBA has achieved a 99.9% pass rate through strict 19 quality inspection processes, setting a benchmark in the industry. Starting from the pain points of the PCBA industry, this article will analyze how these 19 quality inspection processes are checked layer by layer to ensure zero-defect delivery of products.

PCBA Factory

Why Does PCBA Manufacturing Require an Extreme Quality Control System?

During the PCBA manufacturing process, common issues include:

Design-Production Disconnect: Some customer designs fail to consider Design for Manufacturability (DFM), leading to high defect rates during production and requiring multiple rework cycles.

Supply Chain Risks: Component suppliers vary significantly in quality. Counterfeit or refurbished parts can cause entire batches of products to fail.

Uncontrolled Production Processes: Frequent occurrences of soldering defects, component misalignment, and cold solder joints affect functional stability.

Slow Post-Sales Response: When quality issues arise, some manufacturers lack rapid analysis capabilities, resulting in delivery delays.

These issues directly impact customer satisfaction and can even lead to mass scrapping, causing significant losses. Therefore, a scientific and stringent quality control system becomes the core competitive advantage of a PCBA factory.

Quality Inspection Procedures

How Do 19 Quality Control Processes Achieve a 99.9% First-Pass Yield?

KINGSHENG PCBA quality control system spans five critical stages: R&D, Incoming Materials, Production Process, Functional Testing, and Final Inspection, ensuring controllability at every step.

R&D Stage: Proactively Preventing Design Flaws

DFM (Design for Manufacturability) Analysis: Uses specialized software to simulate and test customer design files, identifying potential process risks like insufficient pad spacing or improper component placement.

Failure Mode and Effects Analysis (FMEA): Predicts potential failure points during production, allowing for preemptive optimization of process parameters.

Incoming Material Inspection: Rigorous Control of Component Quality

Supplier Qualification Audit: Partners exclusively with original component manufacturers (OCMs) or authorized Tier-1 distributors, ensuring reliable material sources.

X-RAY Inspection & Decapsulation Testing: For high-end chips and BGA components, employs X-ray imaging combined with physical decapsulation (de-capping) to eradicate counterfeit or refurbished parts.

RoHS & REACH Compliance Testing: Ensures all materials meet international environmental standards.

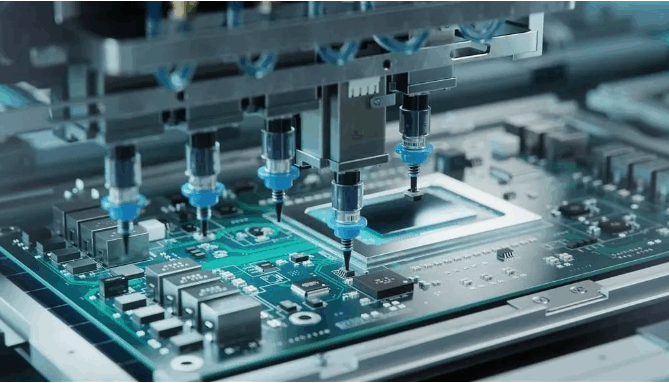

Production Process: Full Automation & Real-Time Monitoring

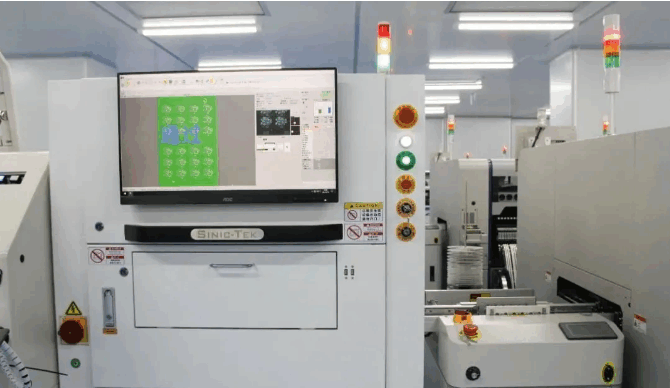

3D SPI (Solder Paste Inspection): Checks solder paste print thickness and area before component placement, preventing cold solder joints or bridging.

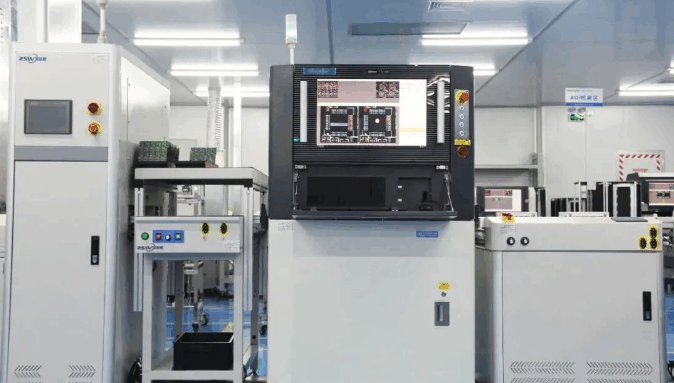

AOI (Automated Optical Inspection): High-speed cameras scan every PCBA, precisely identifying defects like missing, misaligned, or reversed components.

X-RAY Inspection for BGA Soldering: Performs non-destructive inspection of hidden solder joints (e.g., under BGAs) to ensure soldering reliability.

First Article Inspection (Double Verification): The first production sample undergoes double confirmation by both Quality Engineers and Electronic Engineers to ensure correct process parameters.

Quality Inspection Procedures

Functional Testing: Simulating Real-World Conditions

● FCT (Functional Circuit Test): Proprietary test software validates PCBA functions (voltage, current, communication, etc.) with >80% coverage.

● Burn-in Testing: Simulates extended operational environments to screen out potential early-failure products.

Final Inspection & Shipping: 100% Full Inspection

● Conformal Coating Inspection: Ensures uniform, void-free application of moisture/corrosion-resistant coating.

● AQL Sampling & OQC Final Audit: Conducts final verification per international standards (e.g., MIL-STD-105E) to guarantee batch compliance.

How Does KingshengPCBA Achieve 99.9% First-Pass Yield?

Advanced Inspection Equipment: Yamaha placement machines, 3D SPI, X-RAY systems, etc., minimize human error.

Stringent Supply Chain Management: Partnerships with 300+ original manufacturers prevent material defects.

Digital Process Control: MES system enables real-time monitoring and traceability to specific batches/workstations.

Expert Team: Quality Director with 15+ years’ expertise in automotive-grade tools (APQP/PPAP).

Quality Inspection Procedures

Conclusion: Zero-Defect is Not a Slogan, But a Systematic Engineering Approach

In the PCBA industry, achieving a 99.9% first-pass yield is no coincidence—it results from precision control across the entire process, from design to delivery. Through its 19 quality control processes,KINGSHENGPCBA not only addresses industry pain points but has also become a long-term partner for high-end clients in automotive, medical equipment, and other critical sectors.

Looking ahead, as smart manufacturing advances, AI-powered quality inspection and big data predictive analytics will further elevate PCBA quality standards. Yet the core principle remains unchanged: only when every single process is rigorously executed can truly zero-defect delivery be achieved.
