In the competitive world of PCBA manufacturing, the pick-and-place machine is the heartbeat of any SMT assembly line. Choosing the right machines—and more importantly, the right combination—directly determines throughput, placement accuracy, and final product yield. With the growing diversity of electronic products, from smartphones and wearables to automotive controllers and medical devices, a single machine type rarely fits all needs. That is why more and more PCBA factories are adopting a hybrid configuration: high-speed chip shooters for volume production and general-purpose (or multi-function) placers for flexibility and precision. Getting this pairing right is both an art and a science.


Defining the Roles

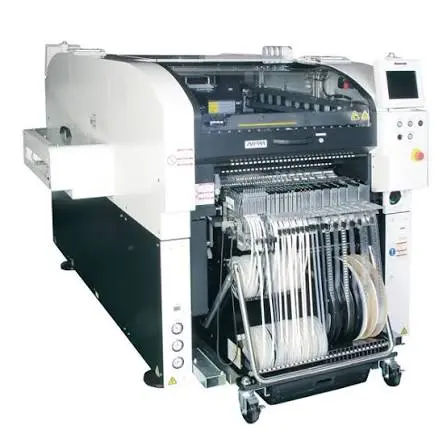

High-speed machines are built for raw velocity. They excel at placing vast numbers of small, standard components—0402, 0201 resistors and capacitors, small-outline transistors, and SOIC packages—at rates often exceeding 30,000 to 80,000 components per hour (CPH), with top-tier models even surpassing 100,000 CPH. Their strength is mass production, where cycle time is king. General-purpose placers, on the other hand, prioritise accuracy and versatility. They handle oddform parts, large ICs, and fine-pitch devices such as BGAs, QFPs, connectors, and shielding cans. With repeatable placement precision down to ±0.03 mm—and sometimes ±0.01 mm for advanced systems—they rely on high-resolution vision systems to verify polarity and automatically correct pin alignment. These machines are indispensable for automotive, industrial, and healthcare electronics, where reliability is non-negotiable.

Why Pair Them?
The synergy is clear. High-speed machines are fast but struggle with non-standard shapes and oversized components. General-purpose machines are flexible but operate at a fraction of the speed. In a typical production flow, the line is arranged with high-speed placers first, followed by general-purpose machines. The high-speed section mounts 70-80% of all components—the standard passives—in rapid succession. The board then moves to the general-purpose station, which carefully places BGAs, connectors, and other complex parts. This division of labour ensures that the line runs at optimal tact time while maintaining high first-pass yield. Without this balance, a bottleneck at either end would cripple overall output.

Common Configuration Scenarios
The ideal pairing depends on product mix and order volume. For medium-volume, mixed-technology assemblies, a simple 1-high-speed + 1-general-purpose line is the most cost-effective entry point. For example, pairing an ASM SX2 (capable of ~74,000 CPH) with an SX1 (~23,000 CPH) gives a theoretical line capacity near 100,000 CPH, covering roughly 70% standard and 30% odd-form components.
When standard components dominate and volumes are high, a 2-high-speed + 1-general-purpose arrangement proves far more efficient. Actual shop-floor data shows this configuration can outperform a 1-high-speed + 2-general-purpose setup by over 30% in total throughput, because the general-purpose machine is no longer the bottleneck. For ultra-high-volume products like smartphone motherboards, lines with three or four high-speed machines feeding a single multi-function placer are common, achieving practical outputs beyond 200,000 CPH when factoring in real-world losses.

Avoiding Common Pitfalls
Yet many factories fall into traps. The most frequent mistake is speed obsession—buying machines solely on peak CPH, only to discover that lengthy changeover times or inability to handle fine-pitch parts turn the line into a bottleneck. A holistic evaluation must consider placement accuracy, feeder capacity, component range, software intelligence, and changeover flexibility.
Another pitfall is imbalance in the ratio. Over-investing in high-speed machines without enough general-purpose capacity leaves the high-speed section waiting. One factory installed three high-speed machines with only one general-purpose placer; the latter became the choke point, wasting nearly 30% of potential output. The ratio should be calculated based on the actual bill-of-material composition—count both the number and the variety of component types.
Finally, many overlook real-world utilisation. Theoretical CPH is rarely achieved in production; factors like feeder setup, board handling, and inspection delays typically reduce effective placement rate to 70-80% of the rated speed. Always base your capacity planning on realistic, shop-floor-proven figures, not marketing brochures.


Strategic Recommendations
So, how should a PCBA factory decide? The answer lies in your product portfolio. If your strength is high-volume consumer electronics with predominantly standard passives, prioritise high-speed machine count and speed. If you serve industrial, automotive, or medical sectors with frequent changeovers and complex components, invest more in precision and flexible feeders—even if it means sacrificing some speed. For most small-to-medium enterprises, a 1+1 configuration offers the best balance of cost, capability, and upgradability. As order volumes grow, you can seamlessly expand to 2+1 or modular clusters.
Beyond hardware, consider the total cost of ownership—maintenance, spare parts, training, and software upgrades. Modern machines come with advanced optimisation algorithms that can dynamically balance workload between stations, reducing idle time and improving overall equipment effectiveness (OEE). Investing in a common platform (e.g., all machines from one vendor) can simplify programming, spare part management, and operator training, further boosting long-term ROI.
In conclusion, there is no "best" machine in absolute terms—only the best match for your specific production reality. A well-thought-out pairing of high-speed and general-purpose placers not only maximises output and yield but also gives your factory the agility to handle both mass-production runs and urgent, small-batch prototypes. By carefully analysing your component mix, volume forecasts, and real-world constraints, you can design an SMT line that delivers sustainable competitive advantage—one precise placement at a time.
