Satellite reception equipment PCBA: the core hardware component for deep-space signal reception

Home | Events | PCB | About Us | News | Contact Us

I.As a key terminal device for applications such as satellite television, meteorological monitoring, maritime communications, outdoor security and satellite navigation, satellite reception equipment plays a vital role in capturing faint satellite signals from space, demodulating and amplifying them, converting the signals, and outputting audio and video. The PCBA circuit board serves as the central hub of satellite reception equipment; the signal sensitivity, reception stability, interference resistance, video and audio quality, and long-term service life of the entire unit are all determined by the design, material selection and manufacturing processes of the PCBA.

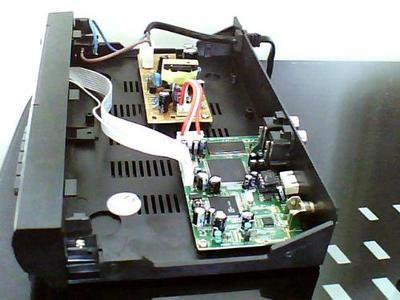

II.The PCBA for satellite reception equipment primarily integrates RF demodulation chips, high-frequency amplification units, main control and decoding chips, filter circuits, power management, storage modules, interface drivers and antenna matching circuits. Its core operating principle involves capturing faint satellite signals from space via the antenna; these signals are then filtered, denoised, amplified and demodulated by the RF circuits on the PCBA, before being converted into audio-visual and digital signals for use by televisions, decoders and monitoring terminals. Whether in domestic satellite set-top boxes, outdoor satellite receivers, or professional meteorological and maritime satellite reception equipment, core performance relies on the PCBA circuit architecture.

III.The greatest challenge in satellite reception lies in the extremely weak signals and their susceptibility to interference. Due to the vast distances involved in space transmission, satellite signals suffer significant attenuation by the time they reach the ground and are highly susceptible to interference from terrestrial radio waves, lightning, industrial electromagnetic fields and building obstructions. If the PCBA layout is disorganised, RF routing is non-compliant or board loss is excessive, this can result in poor signal quality, stuttering images, pixelation, frequent signal dropouts and even an inability to lock onto satellite channels.

IV.In terms of circuit design, the satellite equipment PCBA places the utmost emphasis on RF integrity, low-loss routing and electromagnetic isolation. A multi-layer high-frequency PCB layout is employed, with RF signals routed via dedicated paths, whilst strict impedance matching and antenna clearance planning are implemented. The analogue RF weak signal section, digital decoding section and high-power supply section are physically separated and feature independent grounding and shielding to prevent interference from digital circuits from overwhelming weak satellite signals. Additionally, built-in multi-stage filtering and amplification circuits eliminate noise interference, enhancing signal reception sensitivity and satellite acquisition speed.

V.In terms of materials and manufacturing processes, the PCBA for this high-quality satellite receiver utilises specialised high-frequency, low-loss circuit boards with stable dielectric properties and extremely low signal transmission loss, making them suitable for operation in the satellite UHF band. Key RF components, crystal oscillators and capacitors are all selected to meet high-precision industrial-grade specifications, ensuring low temperature drift and high stability. Production utilises precision SMT assembly technology, ensuring accurate placement of minute RF components and full, reliable solder joints. Strict quality control is enforced through AOI inspection, signal sensitivity testing and ageing tests to eliminate defects such as cold solder joints, frequency drift and signal attenuation. Outdoor models come standard with a triple-proof coating, offering protection against moisture, dust, salt spray and extreme temperatures, making them suitable for harsh environments such as open fields, mountainous regions and coastal areas.

VI.With the accelerated development of Beidou navigation, low-Earth orbit satellite internet and comprehensive satellite broadcasting coverage, satellite reception equipment is evolving towards miniaturisation, multi-satellite compatibility, high-definition decoding, low power consumption and portability. This, in turn, is driving the evolution of PCBA towards higher RF precision, greater integration and stronger anti-interference capabilities.

VII.Whilst satellite reception equipment may appear structurally simple, it is the built-in PCBA that truly determines reception performance. Only through professional RF circuit layout, low-loss high-quality circuit boards and precise SMT processes can faint deep-space signals be accurately captured, enabling rapid satellite acquisition, stable signals, clear picture quality and year-round reliable operation. This lays a solid foundation for satellite reception hardware in fields such as consumer audio-visual, outdoor communications, meteorology and maritime affairs.
