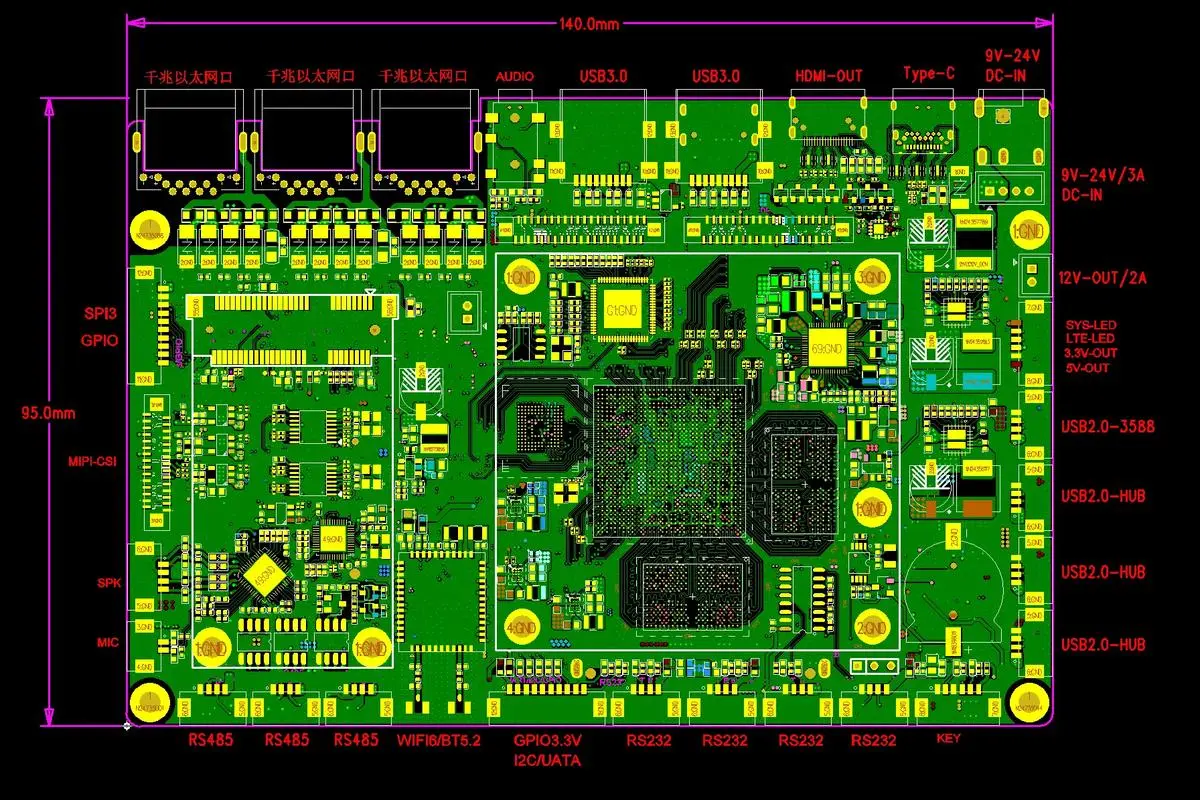

Low-speed boards typically feature large copper pours on the outer layers; high-speed boards often do not. The rationale stems from fundamental differences in signal behavior and grounding requirements.

Core Principle:

• Low-speed designs: Larger ground area reduces parasitic inductance.
• High-speed designs: Ground area is secondary to minimizing return path inductance and achieving controlled impedance.

Parasitic inductance in a ground plane is inversely related to its effective width. A larger ground plane allows return currents to spread, reducing inductance. Conversely, a small or fragmented plane concentrates current flow, increasing inductive impedance.
For low-speed circuits, where signal transitions are gradual, this inductance causes voltage drops during current spikes (V=L⋅di/dtV=L⋅di/dt), potentially corrupting logic levels. A large, continuous ground plane effectively mitigates this.


2. Low-Speed Board Grounding Strategy
Maximize continuous copper area.
On single- or double-layer boards, fill unused areas with copper and connect them to ground. This creates a low-inductance reference plane.
Shorten return paths.
Place component ground pins and decoupling capacitors directly adjacent to the ground pour. Minimal trace length preserves the low-inductance benefit.
Use stitching vias.
In multilayer low-speed boards, add vias to connect ground planes across layers—approximately one via per 10 mm²—maintaining a low-impedance path between layers.

3. High-Speed Board Grounding Priorities
High-speed designs face different constraints. Signal integrity depends on controlled impedance and minimizing return path inductance. A continuous reference plane (typically an internal layer) is essential, but outer-layer copper pours are often omitted to avoid unintended coupling and to simplify impedance control.
The focus shifts from static inductance to maintaining a uniformly low impedance across frequency, achieved through proper stack-up design and via placement rather than sheer copper area.

4. Additional Benefits of Large Ground Planes
Beyond inductance reduction, extensive grounding improves:

• EMI immunity: The plane acts as a shield against external interference.
• Thermal dissipation: Copper spreads heat from power components, enhancing reliability.

5. Trace Width for Low-Speed Signals
For low-speed signals, a width of 12–15 mil is recommended.
Resistance follows R=ρL/(Wt)R=ρL/(Wt). Wider traces reduce resistance, minimizing voltage drop and resistive heating. This is particularly valuable for low-amplitude signals or longer interconnects.

6. Summary

• Low-speed designs: Prioritize large, continuous ground planes and moderately wide traces to reduce parasitic inductance and voltage drop.
• High-speed designs: Prioritize impedance-controlled return paths and consistent reference planes; outer-layer pours are often omitted to preserve signal integrity.
• Both approaches share the same goal: a low-inductance, low-impedance grounding structure that ensures signal integrity and electromagnetic compatibility.
