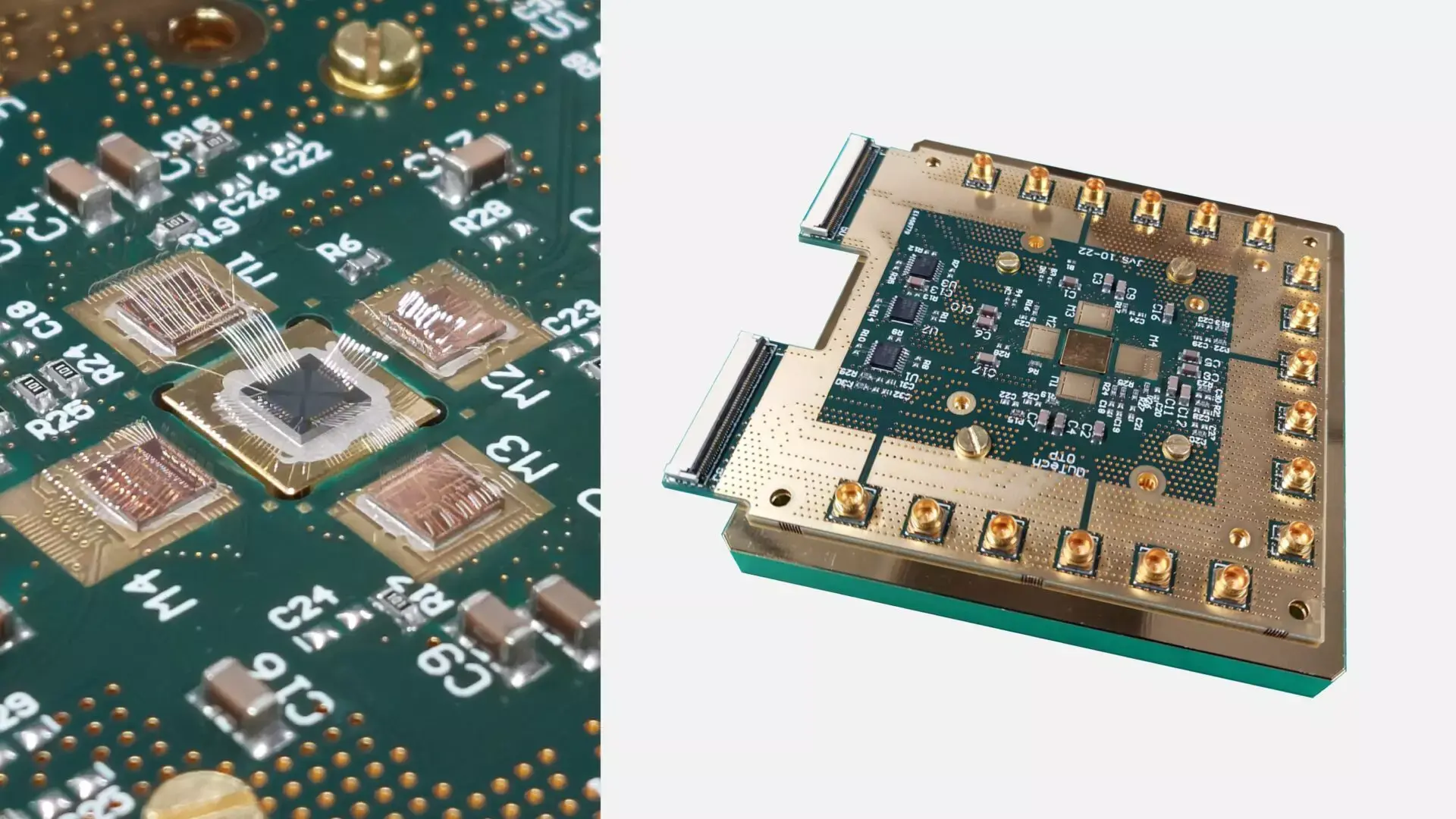

The global quantum computing market is accelerating from research labs to commercial reality. In 2026, the market size reached approximately 1.08 billion,and by 2035,it is expected to exceed 1.08 billion,and by 2035, it is expected to exceed16 billion. Recognized as a top-tier future industry in national strategic plans, quantum computing places extreme demands on supporting hardware—especially printed circuit board assemblies (PCBAs) that control quantum chips. These circuit boards must operate reliably at temperatures near absolute zero, a challenge far beyond conventional electronics manufacturing.


I. The Cryogenic Challenge: Materials and Structures Redefined
Superconducting qubits require stable operation at 4K or even millikelvin (10–15 mK) levels to maintain quantum coherence. This means PCBA must survive thermal cycling from room temperature down to near absolute zero—a ΔT exceeding 300°C—while preserving signal integrity and mechanical reliability. Standard FR-4 substrates become unreliable below -55°C, suffering cracking, delamination, and solder joint failure due to glass transition and thermal expansion mismatches.
For PCBA factories, this demands a fundamental material upgrade. PTFE-based composites (e.g., Rogers laminates) offer excellent microwave dielectric properties and dimensional stability. Polyimide films provide mechanical flexibility for interconnects across different cryogenic stages. Ceramic substrates, with a low coefficient of thermal expansion (CTE 5–7 ppm/°C) and high thermal conductivity, handle high heat flux densities. A truly competitive factory must master rigid, flexible, and rigid-flex board processes, matching material solutions precisely to the operating temperature zone—room, 4K, or millikelvin.

II. Three Technical Barriers: CTE Mismatch, Signal Loss, and EMI
At cryogenic temperatures, PCBA failure mechanisms are unique. For a BGA package cooled from 300K to 10 mK, the CTE mismatch between FR-4 (≈70 ppm/°C) and copper (≈17 ppm/°C) can cause differential shrinkage approaching 0.5%, directly leading to solder joint cracking and delamination. Meanwhile, the dielectric constant of conventional resins drifts during cooling, worsening return loss at high frequencies. One reported study showed that traditional materials suffer a 30% increase in signal loss above 10 GHz in a 64-qubit system.
Equally critical is electromagnetic shielding. Qubits are extremely sensitive to electromagnetic interference; control PCBs must provide >100 dB shielding effectiveness to isolate quantum states from external noise. This requires advanced lamination structures, ground plane design, and plating processes—including coplanar waveguide transmission lines with 50Ω impedance control and differential pairs with double shielding and grounded via arrays. These are hard metrics of a factory's true capability.

III. Beyond Assembly: The Factory as a Materials Partner
Quantum-ready PCBA manufacturing cannot be a simple "build-to-print" assembly house. It demands deep materials engineering collaboration. When PTFE composites need CTE reduced to 10 ppm/°C to match superconducting chip substrates, when indiumbased solders must remain ductile at 10 mK, when diamond heat spreaders with 3000 W/m·K thermal conductivity are required—the factory's engineering team must be involved in material selection, thermo-electrical co-design, and reliability validation from the start.
Leading manufacturers are already demonstrating this. Global players have showcased rigid and flexible PCBs for quantum computing with excellent cryogenic signal integrity. Domestic pioneers have developed diamond-based thermal management substrates achieving thermal resistance as low as 0.0001°C/W at ultralow temperatures, and multilayer metal film shielding reaching 125 dB effectiveness.


IV. Precision, Low-Temperature Soldering, and Full Validation
Quantum wiring demands nanometer-scale precision. Top PCBA factories now achieve placement accuracy of ±8 nm and line/space down to 5 μm. This requires laser direct imaging, micro-via laser drilling, and vacuum lamination with laboratory-grade process control. For soldering, conventional Sn-Ag-Cu alloys become brittle below -200°C, forcing a switch to indium- or bismuth-based low-temperature solders, along with precisely controlled reflow profiles.
Finally, every quantum PCBA must undergo full thermal cycling from room temperature to millikelvin, plus signal integrity testing at microwave frequencies. Factories with in-house cryogenic test capabilities can deliver truly production-ready hardware.

V. Conclusion
The global quantum computing PCB market already exceeds $1 billion. While the spotlight often shines on quantum chips and dilution refrigerators, PCBA factories are building the essential—and often invisible—engineering foundation. From materials expertise to micro-scale fabrication, low-temperature soldering to complete cryogenic validation, the quantum era is redefining what "advanced manufacturing" means. PCBA companies that master these cryogenic barriers today will become the indispensable infrastructure providers of tomorrow's trillion-dollar quantum industry.
