AI Fixes False Calls in PCBA AOI

Home | Events | PCB | About Us | News | Contact Us

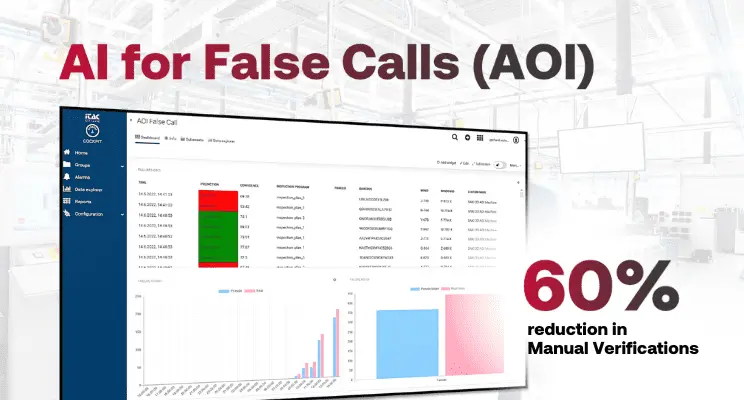

In PCBA manufacturing, Automated Optical Inspection (AOI) has long been the workhorse of quality control. Yet many factory managers know an open secret: to avoid any escape, traditional AOI systems are set with extremely tight thresholds. The result? A flood of false defects. Operators spend hours verifying phantom issues instead of real faults. When false call rates exceed 5%, teams start ignoring alarms, and the entire inspection process loses credibility. This "machine sees, human judges" model drives up labor costs and turns AOI into little more than a decorative bottleneck.
Now, breakthroughs in artificial intelligence are fundamentally changing AOI defect classification. Deep learning models—especially convolutional neural networks (CNN) and Transformer architectures—shift the paradigm from rigid rule-based comparison to intelligent pattern recognition. Instead of relying on manually programmed thresholds, AI learns from thousands of real defect samples. It identifies features, classifies defect types, and dramatically reduces false calls. While traditional AOI can suffer from false-positive rates above 70%, modern AI-enhanced systems consistently bring that number below 5%.


I. Three core breakthroughs
First, AI moves beyond pixel-by-pixel "difference finding". Traditional AOI struggles with dark components on dark boards or reflection from flux residue—often reporting shorts or insufficient solder that don't exist. AI, however, learns to distinguish genuine defects from harmless variations in color, brightness, or texture. It understands features, not just pixel deviations. Second, AI enables few-shot learning. In the past, engineers spent days tuning parameters for every single component. Today, an AI-powered AOI can be trained with as few as 5–10 defect samples and achieve the same accuracy. New product introduction (NPI) lead times shrink dramatically. Some advanced systems can even auto-generate inspection regions from a single golden board, without needing CAD files or component libraries.
Third, AI supports continuous learning and process. The model improves over time by incorporating operator feedback. If the system makes a wrong call, it learns the correct classification and avoids the same mistake next time. Even better, detected defects can be fed back to upstream equipment—printer or pickandplace. For example, if three boards in a row show solder paste shift at the same location, the AI can automatically suggest or trigger parameter adjustments on the printer.

II. Tangible benefits for PCBA factories
The gains go beyond theory. Leading SMT lines report an 80% reduction in false alarms after deploying AI defect classification. Instead of drowning in false calls, rework staff focus only on actual defects, increasing productivity by five times or more. One notebook structural parts manufacturer cut its on-line QC team from 12 to 2 people while more than doubling inspection capacity. The annual cost saving exceeded one million yuan. Today's mainstream AI-AOI systems achieve over 99.5% accuracy, with false-positive rates below 0.3% and inspection speeds above 200 components per second.


III. Practical deployment paths
You do not need to scrap existing equipment. Three practical paths exist:
First, add an AI module on top of your current AOI. The original images are sent to a local edge server or cloud for deep-learning-based re-analysis. This filters false calls and automatically classifies defect types with minimal upfront investment.
Second, upgrade to native AI-AOI systems, especially for new lines. Many vendors now offer 3D AOI combined with built-in AI that measures solder volume, coplanarity, and other three-dimensional features.
Third, for factories with strict data sovereignty requirements, deploy on-premise training using a "pre-train + fine-tune" strategy. With as few as 5–20 labeled defect samples, you can achieve high classification accuracy without any data leaving the plant.

IV. Conclusion
In 2026, AOI has evolved far beyond optical comparison. It is now data-driven, algorithm-enhanced, and fully connected to upstream process control. For PCBA factories, adopting AI defect classification is no longer a "should we?" decision—it is a "when?" question with an increasingly urgent answer. When your inspection system truly understands each board—recognizing wetting angles, distinguishing scratches from reflections, and predicting potential cold joints—quality management shifts from reactive gatekeeping to proactive prediction. That shift is precisely the competitive advantage every PCBA manufacturer needs in the age of smart manufacturing.
