5G Base Station PCBA: Laying the Hardware Foundation for 10-Gigabit Communications

Home | Events | PCB | About Us | News | Contact Us

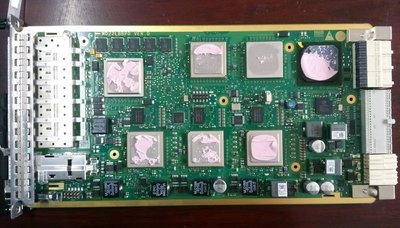

I. As the core nodes of the next-generation information infrastructure, 5G base stations are the key enablers of high-speed, low-latency, and wide-area network coverage. The PCBA (printed circuit board assembly), meanwhile, serves as the ‘nerve centre’ of 5G base stations, performing core functions such as signal transmission and reception, data processing, and power amplification; its performance directly determines the base station’s communication quality, coverage range, and operational stability. With the large-scale deployment of 5G-A (5.5G) and the upgrade to 10 Gbps downlink and 1 Gbps uplink speeds, even more stringent requirements have been placed on base station PCBA, demanding high-frequency low-loss performance, high-density integration and ultimate reliability.



II. The core challenge for 5G base station PCBs lies in high-frequency signal integrity and low-loss transmission. 5G communications span both the Sub-6GHz and millimetre-wave bands; millimetre-wave signals, with their high frequencies, are prone to attenuation, and standard FR-4 boards cannot meet these requirements. Consequently, base station PCBs commonly utilise high-frequency, low-loss substrates such as PTFE and Rogers RO4350B. These substrates feature a stable dielectric constant (Dk) and a dielectric loss tangent (Df) of ≤0.002, significantly reducing signal transmission loss and phase shift. Additionally, a multi-layer mixed-voltage design is employed, with high-frequency materials used for critical RF layers and conventional materials for power and ground layers, thereby balancing performance and cost.

III. High-density integration and precision routing are another key feature. 5G base stations require the integration of RF transceiver units, baseband processing units, power management units, and filter-amplifier circuits; a single PCBA contains over a thousand components, resulting in extremely high routing density. To address this, the PCBA employs HDI blind and buried via technology. A second-order stacked via design reduces the board footprint by 40%, whilst laser drilling enables the production of 0.1mm microvias. Combined with LDI (Laser Direct Imaging) technology, this achieves high-precision routing with line widths and spacing of 0.07mm. High-speed signal lines strictly adhere to equal-length routing and precise impedance control, with impedance tolerance maintained within ±3%, effectively mitigating signal crosstalk and timing errors to ensure stable transmission of 10G/100G high-speed data.

IV. Designs that ensure adaptability to harsh environments and reliability are essential. As 5G base stations are predominantly deployed outdoors, they must withstand harsh operating conditions such as a wide temperature range of -40°C to 85°C, strong winds and rain, salt spray corrosion and lightning interference; this requires the PCBA to possess high stability, a long service life and strong anti-interference capabilities. The design employs a multi-layer board with separate power and ground planes plus an electromagnetic shielding layout, with high-power modules and control modules physically segregated to suppress electromagnetic interference. During production, industrial-grade, high-temperature-resistant components are selected, with reinforced soldering applied to critical components and a triple-proof coating applied to the surface to enhance moisture, mould and corrosion resistance. Prior to shipment, the boards must undergo rigorous testing, including high and low-temperature cycling, vibration and shock testing, salt spray ageing and high-voltage insulation testing, to meet the IPC Class 3 high-reliability standard, ensuring stable, uninterrupted operation 24 hours a day, 7 days a week.

V. Thermal management and process quality control are key to performance assurance. 5G base stations feature high power density, and core components such as power amplifiers generate significant heat; inadequate heat dissipation can easily lead to performance degradation or even burnout. The PCBA utilises a thick copper foil design combined with thermal via arrays and integrated heat sink pads to rapidly dissipate heat, working in conjunction with external heat sinks to form an efficient thermal management system. Precision control is implemented throughout the entire production process. From substrate pre-treatment, lamination and etching to soldering and inspection, parameters are precisely fixed at every stage. This is complemented by AOI optical inspection, X-ray flaw detection and flying probe testing to identify hidden defects such as internal layer breaks, cold solder joints and abnormal impedance, thereby ensuring consistency in mass production.

VI. Currently, China has over 4.95 million 5G base stations, and with the accelerated rollout of 5G-A networks, demand for high-performance PCBs continues to surge. From macro base stations to micro and pico base stations, PCBs are evolving towards higher frequencies, faster data rates, integrated modularity and intelligent functionality. In the future, with the implementation of new 5G-A technologies such as integrated communication and sensing and integrated terrestrial and space networks, base station PCBs will further optimise high-frequency performance and integrate AI computing power. Through stricter manufacturing standards and superior product performance, they will support the smooth evolution of 5G networks towards 6G, thereby laying a solid hardware foundation for the development of the digital economy.
