Ensuring Safety and Compliance in Medical Device PCB Design

Home | Events | PCB | About Us | News | Contact Us

A Comprehensive Guide

The design and manufacturing of printed circuit board assemblies (PCBAs) for medical devices demand unparalleled attention to safety and regulatory compliance. Unlike consumer electronics, medical PCBs operate in life-critical environments where failures can have dire consequences. This blog delves into the key safety considerations and compliance frameworks governing medical PCB design, offering actionable insights for manufacturers and engineers.



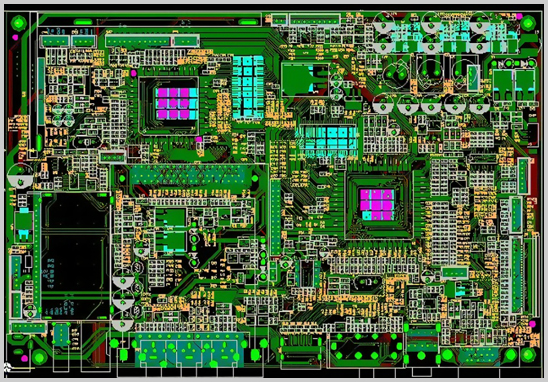

I. Fundamental Safety Requirements in Medical PCB Design
Medical PCBs must adhere to stringent safety standards to ensure reliability, durability, and patient/user protection.

Key design imperatives include:
1: Signal Integrity and Noise Immunity: Medical devices (e.g., pacemakers, MRI machines) require noise-resistant designs to prevent electromagnetic interference (EMI) from disrupting sensitive signals. Techniques like proper grounding, shielding, and differential signaling are critical.

2: Thermal Management:
High-power components (e.g., in surgical lasers) necessitate thermal vias, heat sinks, and material selection (e.g., high-Tg FR4 or ceramic substrates) to prevent overheating and ensure long-term stability.

3: Redundancy and Fault Tolerance:
Critical systems often employ redundant circuits or fail-safe mechanisms (e.g., watchdog timers) to mitigate single-point failures.

II. Regulatory Compliance Frameworks
Medical PCBAs must conform to global and regional regulations, including:

1: IEC 60601-1 (Electrical Safety): The cornerstone standard for medical electrical equipment, covering leakage current, insulation, and mechanical hazards. Designers must ensure creepage/clearance distances and use certified isolation components.

2: ISO 13485 (Quality Management): Requires traceability, risk management (per ISO 14971), and documented design controls. PCB manufacturers must implement rigorous testing protocols (e.g., HALT/HASS).

3: FDA 21 CFR Part 820 (U.S. Market): Mandates design validation, change control, and supplier audits. For example, Class III devices require pre-market approval (PMA) with extensive PCB documentation.

4: EU MDR (Medical Device Regulation): Emphasizes post-market surveillance and material biocompatibility (e.g., RoHS/REACH compliance for PCBs in implantable devices).

III. Material and Manufacturing Considerations
1:Substrate Selection: Polyimide or Rogers materials may replace standard FR4 for flex circuits or high-frequency applications (e.g., ultrasound probes).

2: Cleanliness and Biocompatibility: Conformal coatings (e.g., silicone, parylene) protect against moisture and contaminants, crucial for devices exposed to bodily fluids.

3: Process Validation: Automated optical inspection (AOI), flying probe testing, and burn-in testing are essential to detect latent defects in high-reliability PCBs.

VI. Risk Management and Documentation
1:Failure Mode and Effects Analysis (FMEA):
Proactively identifies potential PCB failures (e.g., solder joint cracks) and their impacts on device performance.

2: Design History File (DHF):
Maintains records of schematic reviews, test reports, and compliance certifications for regulatory audits.

V: Conclusion
Medical PCB design is a multidisciplinary challenge balancing technical precision with regulatory rigor. By integrating safety-first principles, robust materials, and compliance-driven processes, manufacturers can deliver PCBAs that meet the exacting demands of the healthcare industry.
