How High Is the Barrier for Automotive Electronics PCBA? A Third-Party Technical Perspective on Core Requirements for Automotive-Grade Manufacturing

Home | Events | PCB | About Us | News | Contact Us

Automotive electronics — including on-board power supplies, lighting, T-Box, body control modules (BCM), and sensors — operate under extreme conditions. These include wide temperature ranges from -40°C to 125°C, severe vibration and shock, high current loads, and stringent electromagnetic compatibility (EMC) requirements. Any defect at the PCBA level can lead to functional failure or even safety risks. Therefore, automotive PCBA must strictly comply with automotive-grade standards such as AEC-Q100/Q200 and IATF 16949.
From a third-party technical and supply chain evaluation perspective, very few manufacturers are truly capable of mass-producing automotive-grade PCBA.

I. Components Must Be Automotive-Grade: A Non-Negotiable Baseline

• Active and passive components must meet AEC-Q100 (for ICs) or AEC-Q200 (for passives) certification, with an operating temperature range covering -40°C to 125°C.
• PCB substrate materials shall use high-Tg (≥170°C), thick copper (2oz–10oz), CAF-resistant, and high heat-resistant laminates to withstand long-term thermal stress and humid environments.
• Surface finish shall prioritize ENIG (Electroless Nickel Immersion Gold) or ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold) to ensure solderability, corrosion resistance, and long-term contact reliability.

II. Manufacturing Process: Zero Defect + Full Traceability

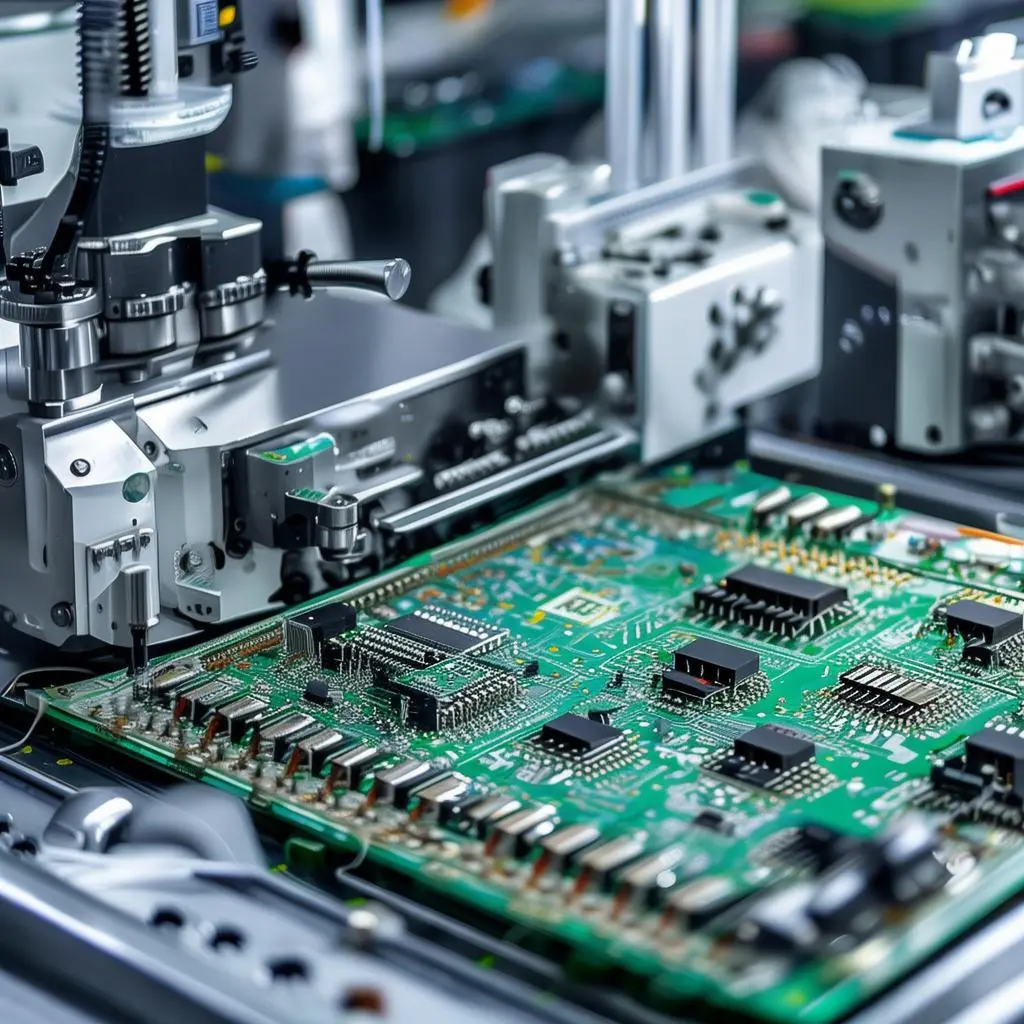

• High-precision placement is achieved using fully automatic SMT lines, with 100% inspection via 3D SPI (Solder Paste Inspection) and AOI (Automated Optical Inspection).
• BGA/QFN inspection requires 100% X-Ray inspection to strictly control void rates (typically <25%) and mitigate cold solder risks.
• End-to-end traceability is implemented in accordance with IATF 16949, covering material lots, process parameters, equipment status, and test data (one-piece flow traceability).

III. Automotive Environmental Adaptation: Far Beyond Standard Industrial Control

• Mechanical reinforcement involves dispensing or underfilling for large components (e.g., inductors, electrolytic capacitors, connectors) to prevent detachment or solder joint cracking under vibration and shock.
• Environmental protection supports conformal coating (moisture, salt spray, and fungus resistance) to withstand harsh under-hood and cabin environments.
• EMC/EMI design is rigorously implemented, including proper layout, filtering, shielding, and grounding strategies, ensuring compliance with automotive EMC standards such as CISPR 25 and ISO 11452.

IV. Testing: Full-Chain Automotive-Grade Coverage
A complete automotive-grade testing chain covers the following nodes:

• IQC (Incoming Quality Control)
• Solder Paste Inspection (SPI)
• Post-reflow AOI
• X-Ray Inspection (for BGA, QFN, and bottom-terminated components)
• ICT (In-Circuit Test)
• FCT (Functional Circuit Test)
• Load Testing
• High-Temperature and Low-Temperature Cycling Validation (-40°C to 125°C)

Third-Party Summary: Essential Qualifications for Automotive-Grade PCBA Manufacturers
1.Certification in IATF 16949 for automotive electronics quality management systems.
2.Proven delivery track record with real-world automotive projects (not laboratory samples).
3.Complete material management system supporting automotive-grade component selection, procurement, and full traceability.
4.Comprehensive testing equipment (X-Ray, SPI, AOI, ICT, thermal chambers, etc.) with controlled processes.
5.Process consistency across prototyping, small-volume, and mass-production stages.

Shenzhen Kingsheng PCBA, certified with IATF 16949, ISO 9001, ISO 13485, and UL, provides stable, reliable, and compliant one-stop PCBA services for automotive lighting, on-board control units, T-Box, power supplies, and sensors. For more information, visit www.kingshengpcba.com.
