I. Introduction
As electronics relentlessly push toward higher integration and smaller form factors, component sizes have shrunk from 0402 and 0201 to 01005 (0.4mm × 0.2mm) and even 008004 (0.25mm × 0.125mm). These “electronic grains” are barely visible to the naked eye, yet they redefine the limits of PCBA process capability. For a professional SMT manufacturer, stable, high yield handling of ultra miniature components is the true benchmark of technical excellence.

At KING SHENG PCBA, we have made systematic investments in equipment, process control, and manufacturing discipline to overcome the unique challenges of 01005 and smaller passive components. This article shares our practical approach.



II Three Core Challenges of 01005 and Below
1.Feeding & Pick up Stability
With a pick up area less than one quarter that of an 0201 part, 01005 components are extremely sensitive to feeder vibration, static charge from tape peeling, and even ambient airflow. Any instability can cause tipping, tombstoning, or loss during feeding. The nozzle placement tolerance must be within ±0.015mm – otherwise pick up failure or misalignment occurs.

2. Solder Paste Printing Precision

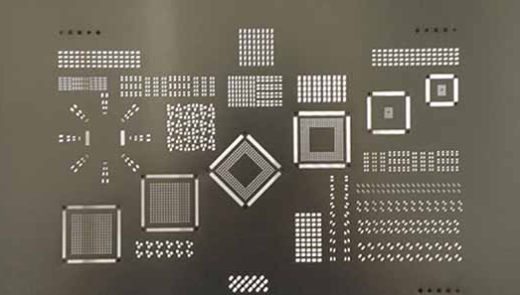

The pad size for 01005 is often equal to or smaller than the component body. Too much paste leads to tombstoning or shifting during reflow; too little causes insufficient solder or cold joints. Stencil aperture design, release speed, and squeegee pressure require dedicated process modeling – traditional empirical values are no longer sufficient.

3.Placement Accuracy & Vision Recognition
Placement accuracy requirements for 01005 are typically ±0.03–0.05mm, demanding high performance linear drive systems. Equally critical is vision recognition: the component’s contour features are minimal, and conventional algorithms are easily disturbed by lighting variations or terminal oxidation. High speed, stable recognition is a dual challenge of hardware and software.

III KING SHENG’s Systematic Solutions
1. High end Equipment Foundation

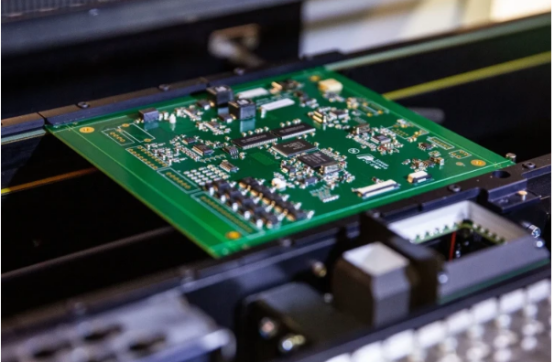

We operate advanced placement platforms such as Fuji NXT III and ASM TX series, featuring linear motor drives and high resolution flying vision systems. These machines achieve a stable Cpk > 1.33 for 01005 assembly. Custom designed high hardness, low wear nozzles and electric smart feeders ensure consistent feeding and pick up.

2. Fine tuned Process Control
Solder paste printing: Closed loop SPI (Solder Paste Inspection) with automatic feedback to the printer. We use step or nano coated stencils, optimized aspect ratio and area ratio, and maintain a dedicated parameter library for different product types. Reflow: Nitrogen reflow with tight oxygen control. Through DOE experiments, we defined optimal ramp rates and peak temperature profiles for ultra small components, effectively reducing tombstoning and wicking defects.

3 Rigorous Inspection & Traceability
A three Level inspection strategy is deployed: Pre reflow: 3D AOI confirms placement position for every component. Post reflow: 2D+3D AOI inspects solder joint shape and component alignment. Xray sampling for hidden solder joints (e.g., under BGAs or ultra miniature parts). All inspection data is uploaded to our MES system, enabling full traceability from material lot to production parameters.

4.Manufacturing Environment & Discipline
We operate a dedicated cleanroom for ultra miniature assembly, with temperature controlled within ±2°C and humidity ±5% RH. Ionizers eliminate static interference. Operators undergo specialized training and certification, following standardized procedures for material handling, program tuning, and maintenance.



IV Results & Outlook
Today, KING SHENG provides volume assembly of 01005 components for customers in consumer electronics, medical devices, and automotive electronics, achieving an overall yield above 99.5%. We have also completed prototyping and low volume production of 008004 components, building a valuable process parameter library. As the boundary between semiconductor packaging and SMT continues to blur, even smaller embedded passives will emerge.

KING SHENG remains committed to continuous investment in process R&D, equipment upgrades, and team expertise. We are ready to be your reliable partner in the age of miniaturization.

V Conclusion
Overcoming the challenges of 01005 and smaller components demands more than just advanced pick and place machines. It requires a systematic approach that integrates precision equipment, rigorous process control, real time inspection, and a disciplined manufacturing environment. At KING SHENG, we deliver exactly that – enabling your high density, high reliability products with confidence.
