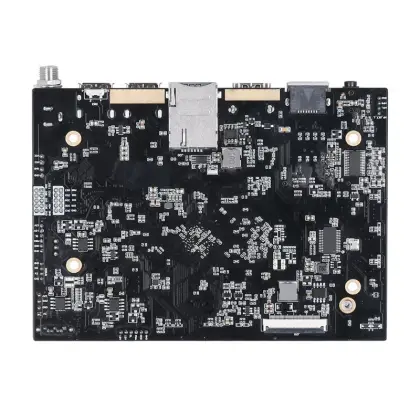

Within the entire computer hardware system, the CPU, graphics card and memory tend to attract the most public attention, whilst the motherboard PCBA—which serves as the hub connecting all hardware components—is a crucial element that is often overlooked. The motherboard PCBA is an integrated circuit board assembly comprising integrated circuits, chips, interfaces and power supply modules. Relying on precision PCB substrates, high-density circuit layouts and mature electronic component soldering processes, it performs core functions such as data transmission, power distribution, hardware coordination and expansion connectivity, directly determining the computer’s operational stability, overclocking potential, expandability and long-term service life.

1. The cornerstone of a motherboard PCBA lies in the design of high-specification PCB materials.
Unlike standard household appliance circuit boards, motherboards handle heavy computational loads, concentrated heat generation and dense high-frequency signal transmission. Consequently, they typically utilise high-precision FR-4 glass fibre laminates with high glass transition temperatures (TG). Mainstream mid-range motherboards feature four to six-layer PCBs, whilst high-end gaming and workstation motherboards can reach eight or ten-layer stacked structures. The multi-layer design isolates the power, ground and signal layers from one another. Combined with 1oz to 2oz thick copper traces, this not only supports the high-current power demands of the CPU and graphics card but also effectively isolates high- and low-frequency signal interference, reducing electromagnetic crosstalk and ensuring high-speed data transmission without lag or packet loss.

2. In terms of manufacturing specifications, the motherboard PCB employs precision impedance-controlled routing.
For high-speed interfaces such as DDR memory, PCIe graphics cards and M.2 SSDs, differential pairs are designed with equal-length traces to precisely control signal impedance and meet high-frequency transmission requirements. The solder mask utilises high-temperature-resistant, eco-friendly ink that is heat-resistant, oxidation-resistant and anti-ageing, ensuring long-term durability in the high-temperature environment inside the chassis; Critical vias utilise resin-filled and gold-plated surfaces, enhancing the solder joints’ resistance to oxidation and improving durability against repeated plugging and unplugging, thereby minimising the risk of poor contact or circuit corrosion during long-term use.

3. The power delivery module is the core component of the motherboard PCBA and a key factor in distinguishing between different tiers of motherboards.
High-end motherboard PCBs feature multi-phase digital power delivery solutions, integrating high-quality MOSFETs, solid-state capacitors and hermetically sealed inductors. Through independent zoning and routing on the PCB, heat sources are centralised and dispersed, optimising current output efficiency. A clean and stable current output not only meets the demands of high-load scenarios such as full CPU utilisation, multi-tasking with games, and video editing, but also provides the hardware foundation for stable processor overclocking, thereby reducing faults such as blue screens, system crashes and automatic reboots caused by voltage fluctuations.

4. Functional integration and expansion are also achieved through an integrated PCBA design.
The entire motherboard PCBA features a high degree of integration, incorporating core control components such as the southbridge, northbridge, sound card, network card, clock generator and temperature monitoring chips, whilst also providing a full range of external interfaces including USB, HDMI, DisplayPort, audio, Ethernet, SATA, M.2 and memory slots. A well-organised separation of high- and low-voltage zones, combined with a modular circuit layout, enables each hardware component to operate independently yet in coordination, facilitating intelligent functions such as high-speed data exchange, hardware auto-detection, real-time temperature monitoring and intelligent fan speed control.

5. Thermal management and protective design are integrated throughout the entire motherboard PCBA process.
For high-heat areas such as the power delivery zone and chipset, the PCBA features dedicated mounting points for heat sinks and thermal armor; the airflow path is optimised across the entire board to minimise heat build-up. Furthermore, standard features include moisture-proof, anti-static and surge-protection designs, with on-board varistors, lightning protection chips and fuses to effectively withstand mains voltage fluctuations, electrostatic discharge and accidental short circuits, providing comprehensive protection for valuable hardware such as the CPU, memory and hard drives. 6.As hardware technology evolves, computer motherboard PCBA designs are also undergoing continuous upgrades. From traditional standard interfaces to full-speed PCIe 4.0 and PCIe 5.0, high-speed DDR5, Gigabit/2.5G network cards and integrated wireless WiFi modules, the trend is towards smaller form factors, higher integration and greater stability.

In summary,  a computer motherboard PCBA is by no means a simple connection medium, but rather a precision electronic product that integrates materials science, circuit design, power supply technology and signal optimisation. A high-quality motherboard PCBA not only ensures the stable operation of everyday office tasks and entertainment applications, but is also capable of handling high-load scenarios such as competitive gaming, professional design and industrial computing; it serves as the solid foundation for the stable operation and full performance of the entire computer.
