The Quality Illusion: Why Visual Inspection Alone is a Recipe for Field Failures

Home | Events | PCB | About Us | News | Contact Us

In the demanding world of electronics manufacturing, particularly for automotive, medical, and industrial control systems, product reliability is non-negotiable. For decades, visual inspection was the cornerstone of quality control. However, in today's era of miniaturized components, high-density designs, and zero-defect expectations, relying solely on the human eye is a dangerous gamble that often leads to costly field failures. At Kingsheng PCBA, our commitment to quality goes far beyond what can be seen.

As an ISO 9001, UL, and CCC certified manufacturer, we leverage a multi-layered inspection and testing​ strategy to shatter the "quality illusion" and deliver the reliability your products demand.

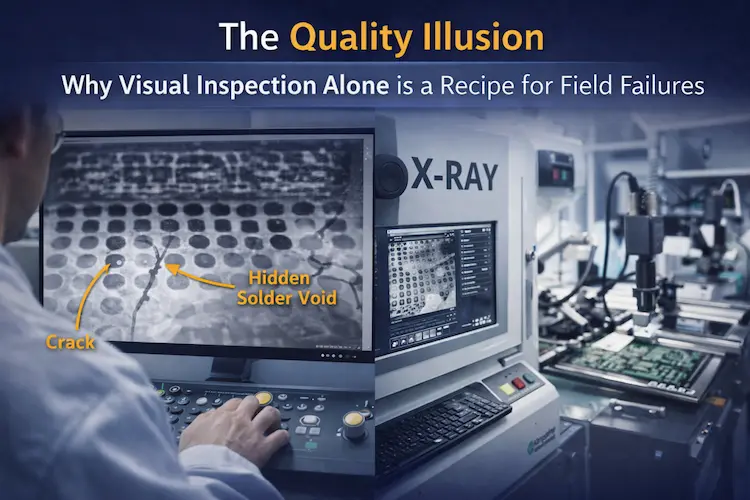

X-ray vs visual inspection for PCBA

The Invisible Threats: Why Human Vision Falls Short

The human eye, while remarkable, is ill-equipped for modern PCBA quality assurance. Its limitations create critical blind spots:

• Subjectivity and Fatigue:​ Inspection standards vary between individuals and degrade with fatigue, leading to inconsistent pass/fail judgments.
• Scale and Complexity:​ Components like 0201 packages​ or fine-pitch QFNs​ have solder joints smaller than a grain of sand. BGA assembly​ presents the ultimate challenge: hundreds of solder balls are completely hidden beneath the component. Visual inspection is powerless here.
• Latent Defects:​ Some of the most pernicious failures aren't visible at all. Micro-cracks in solder joints, insufficient solder paste volume, or voids within a joint may pass a visual check only to fail under thermal stress or vibration in the field—a catastrophic risk for automotive​ or outdoor security products.

Relying on visual inspection alone is akin to checking an airplane's engine by only looking at the exterior. It provides a false sense of security while hidden flaws await to cause system-level failures.

Step 1: Deploying Automated Optical Inspection (AOI) for Consistent Scrutiny

The first layer beyond human vision is Automated Optical Inspection (AOI). Our high-resolution AOI systems perform a rapid, pixel-perfect scan of every board, comparing it against a "golden" standard. They excel at detecting:

• Component presence, correct placement, and polarity.
• Solder bridging and gross solder defects.
• Marking and labeling errors.

AOI brings objectivity and relentless consistency to the inspection process, eliminating human error for surface-level defects. It acts as a high-speed gatekeeper, catching issues immediately after the reflow oven​ or wave soldering machine.

Step 2: Utilizing 3D Solder Paste Inspection (SPI) to Prevent Defects at the Source

The old adage "garbage in, garbage out" applies perfectly to soldering. If the solder paste printing is flawed, perfect component placement and reflow cannot save the board. This is where our 3D SPI full-automatic printing machine​ becomes a game-changer.

Unlike 2D inspection, 3D SPI measures the volume, height, and alignment of every solder paste deposit before components are placed. It proactively identifies:

• Insufficient or excessive paste volume (leading to opens or bridges).
• Misaligned or skewed paste deposits.
• Solder slumping or scooping.

By catching printing defects in real-time, SPI allows for immediate correction, preventing a cascade of downstream soldering failures and significantly boosting first-pass yield. It's a prime example of our optimization solution​ in action.

Step 3: Unveiling Hidden Truths with X-Ray Inspection

For the truly invisible, X-Ray inspection​ is indispensable. Our X-Ray machine​ allows us to see throughcomponents to inspect what visual and AOI cannot:

• The integrity of every single ball in a BGA assembly​ or QFN.
• Solder voids, cracks, or insufficient fill in through-hole joints.
• Internal alignment and potential shorts within complex assemblies.

For high-reliability applications like medical systems​ or automotive​ control units, X-ray inspection is not an option; it's a requirement. It provides the definitive proof that hidden connections are sound, ensuring long-term reliability.

Step 4: Validating Function with Electrical and Functional Testing

Even a visually and structurally perfect board can fail electrically. The final layer of defense is In-Circuit Test (ICT)​ and Functional Test (FCT).
ICT​ checks for correct component values, presence, and basic connectivity.

FCT​ powers up the assembly and tests its operation under simulated real-world conditions, verifying that the entire system functions as designed.
This combination ensures that the PCBA not only looks good but actually works perfectly.

Conclusion: Building Trust Through a Multi-Layered Quality Net

At Kingsheng PCBA, we understand that true quality is built, not inspected. Our philosophy integrates strong engineer services​ for Design for Manufacturability (DFM)​ to prevent issues, followed by a robust, technology-driven inspection net: 3D SPI​ for prevention, AOI​ for surface verification, X-Ray​ for hidden truth, and electrical testing​ for functional validation.

This comprehensive approach is what allows us to guarantee the reliability of your quick-turn prototypes​ and scale with confidence into medium and large production runs. We move beyond the illusion of quality to deliver its certainty.

Don't let hidden defects compromise your product's reputation. Contact Kingsheng PCBA today to discuss how our multi-layered inspection strategy can safeguard your next project.

With 17 years of expertise in PCBA design, manufacturing, and service, KingshengPCBA is ready to help turn your ideas into reality. Feel free to contact us anytime to discuss your requirements and get a professional quotation.
