Introduction: The Critical Shield for High-Reliability Electronics

In the demanding worlds of medical devices and automotive electronics, printed circuit board assemblies (PCBAs) face relentless enemies: moisture, chemical contaminants, dust, and extreme thermal cycling. A single failure can mean a life-critical device malfunctioning or a vehicle system shutting down. Conformal coating—a thin polymeric film applied to a PCB—serves as the essential protective barrier against these threats. However, selecting the wrong coating or applying it inconsistently can be as detrimental as having no protection at all, leading to insulation issues, thermal trapping, or coating failure. This guide breaks down the fundamentals of conformal coating, focusing on the stringent requirements of medical and automotive applications, and outlines the precise process controls necessary for success.

Understanding Conformal Coating: More Than Just a Plastic Layer

Conformal coating is not a one-size-fits-all solution. It is a tailored protective layer designed to "conform" to the topography of components and traces on a PCB. Its primary functions are:

• Environmental Protection:​ Shields against humidity, condensation, and water immersion.
• Chemical & Contaminant Resistance:​ Protects from fuels, solvents, cleaning agents, and dust.
• Dielectric Insulation:​ Prevents electrical shorts from condensation or conductive debris.
• Mechanical Stress Relief:​ Can provide minor protection against vibration and physical shock.
• Fungus Prevention:​ Certain coatings inhibit fungal growth in humid environments.

For medical and automotive applications, these functions are non-negotiable for product longevity and safety.

The Five Primary Conformal Coating Types: A Comparative Guide

Choosing the right material is the first critical decision. Each resin type offers a unique balance of properties.

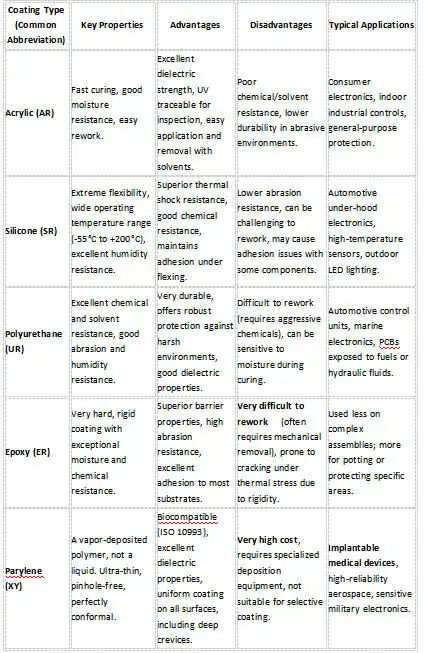

Types of conformal coating for PCBs

For Medical Devices:​ Biocompatibility (per ISO 10993)​ is paramount for devices contacting bodily fluids. Silicone and Parylene are often preferred. Acrylics and urethanes may be used for external devices if they pass specific biocompatibility testing.

For Automotive Electronics:​ Resistance to thermal cycling, vibration, and exposure to automotive fluids​ (like oil, brake fluid) is key. Silicone and Polyurethane are top choices, especially for under-hood applications where temperature extremes are common.

Application-Specific Demands: Medical vs. Automotive

The "why" behind the coating choice differs by industry:
Medical Device PCBA Requirements:

• Biocompatibility & Cleanliness:​ Coatings must not leach harmful substances. The application process often requires a controlled cleanroom environment​ to prevent contamination.
• Reliability in Sterilization:​ Devices may undergo repeated sterilization cycles (e.g., autoclave, gamma radiation, ETO gas). The coating must not degrade, yellow, or lose adhesion.
• Precision & Coverage:​ For life-sustaining devices, 100% reliable coverage with no voids or thin spots is critical. This demands rigorous process validation.
• Automotive Electronics PCBA Requirements:
• Extended Temperature Cycling:​ Coatings must withstand -40°C to +125°C (or higher) for thousands of cycles without cracking or delaminating.
• Resistance to Fluids and Humidity:​ Protection against condensation, salt spray, and exposure to fuels/oils is standard (tested per standards like IPC-CC-830​ and automotive OEM specifications).
• Vibration & Mechanical Stress:​ Coatings must maintain adhesion and integrity under constant vibration to prevent debris generation or short circuits.

The Kingsheng Process: Controlled Coating for Critical Applications

At Kingsheng, our approach to conformal coating is rooted in the discipline required by IATF 16949 automotive quality standards. We treat it as a precision process, not just a finishing step.

Step 1: Pre-Application Preparation & Masking
Cleaning:​ Residual flux or ionic contamination under the coating is a major reliability risk. We employ rigorous cleaning processes to ensure surfaces are pristine.
Precision Masking:​ Protecting connectors, test points, and heat sinks is crucial. We use high-precision laser-cut masks or dispensable liquid maskants to ensure sharp, clean boundaries.

Step 2: Controlled Application
We utilize selective coating machines for accuracy and repeatability. This robotic process ensures:
Consistent Thickness:​ Application is controlled to meet specified thickness requirements (typically 25-75µm per IPC standards)
Uniform Coverage:​ Programmable paths ensure even coating around tall components and under low-clearance parts.
Material Efficiency:​ Redoverspray and waste compared to manual spraying or dipping.

Step 3: Curing & Validation
Curing:​ We control curing parameters (time, temperature, humidity) precisely, whether for UV-cure acrylics or thermal-cure silicones/urethanes, to achieve optimal properties.

• Inspection & Testing:​ Our quality control includes:
• Visual Inspection:​ Under magnification for coverage and defects.
• Thickness Verification:​ Using ultrasonic or eddy-current gauges.
• Adhesion Testing:​ Performing tape tests per ASTM D3359​ to ensure coating adhesion.
• Electrical Testing:​ Verifying no insulation issues have been introduced.

Why Partner with Kingsheng for Your Coated Assemblies?

Our Inspection And Testing​ ethos extends deeply into our conformal coating services. Due to our foundational experience with the "special and high grade requirements of automotive regulations," we understand that protection is meaningless without verifiable quality.


• Process Expertise:​ We don't just apply coating; we help you select the right material for your environmental and regulatory needs.
• Documentation & Traceability:​ For medical and automotive clients, we provide detailed process data and lot traceability, supporting your regulatory submissions.
• Full Turnkey or Consignment:​ Whether you provide the coating material or need us to source it as part of our Turnkey And Consignment Assembly​ services, we manage the entire process with accountability.

Conclusion: Protection You Can Trust

In medical and automotive electronics, conformal coating is a critical reliability investment. The choice between acrylic, silicone, urethane, or parylene, coupled with a rigorously controlled application process, determines the long-term survival of your product in the field.

Ready to ensure your high-reliability PCBA is protected by a robust, precisely applied conformal coating? Contact Kingsheng today to discuss your project requirements and leverage our expertise in safeguarding mission-critical electronics.
