In the drone industry, the total weight of the aircraft directly determines its flight time and manoeuvrability. For consumer drones, every gram of weight saved can add several seconds to hover time; for industrial drones, every single gram counts. As the foundation upon which all electronic systems are built, lightweight PCB design has become one of the core competitive advantages for major drone manufacturers.

I. Three Key Approaches to Lightweight Design

Lightweighting the PCB for drones is not simply a matter of ‘making the board thinner’, but rather the result of comprehensive optimisation across three dimensions: materials, structure and layout.

• 1. Selection of substrate materials: Traditional FR4 boards have a density of approximately 1.8–2.0 g/cm³. For high-end drones, designers are gradually introducing **high-frequency, high-speed materials** (such as the Rogers series) or flexible materials such as **polyimide**. These materials not only have low dielectric loss, but some grades also offer lower density at the same thickness. More importantly, they allow for the design of thinner board structures, such as reducing the standard board thickness of 1.6 mm to 0.8 mm or 1.0 mm, thereby directly reducing the substrate weight by nearly half.
• 2. Optimisation of the Layer Stack: Modern drones require the integration of flight control, video transmission, GPS and power management within a space the size of a palm. This compels designers to adopt higher-density interconnection technologies. Four-layer boards have become the standard entry-level configuration, whilst high-end flight controllers commonly employ **6–8-layer HDI (High-Density Interconnect) boards**. By using blind and buried via technology to replace traditional mechanical through-holes, the space occupied by drilling can be significantly reduced, allowing for high-density component placement on both sides and thereby shrinking the physical dimensions of the PCB.
• 3. The trade-off between copper thickness and copper plating: High-current applications require thick copper to handle the load, but using thick copper across the entire board increases its weight. The solution is to employ a **localised thick copper process**. Use 2 oz or even 3 oz copper foil only in areas of the power supply module where high currents are present (such as the ESC section), whilst using 1 oz copper foil in the signal-intensive flight control section, thereby ensuring resources are allocated where they are most needed.

II. The Balance Between Structural Strength and Weight Reduction

Weight reduction must not come at the expense of reliability. During flight, drones are subjected to continuous high-frequency vibrations and impacts, and the PCB itself acts as a structural component. The following strategies are commonly employed in the design process:

• Lattice-pattern copper plating: In large areas without traces, solid copper plating is replaced with a lattice-pattern copper plating. This not only reduces copper foil usage (by approximately 20–30%) but also prevents board warping caused by the differing thermal expansion coefficients of the resin and copper foil.

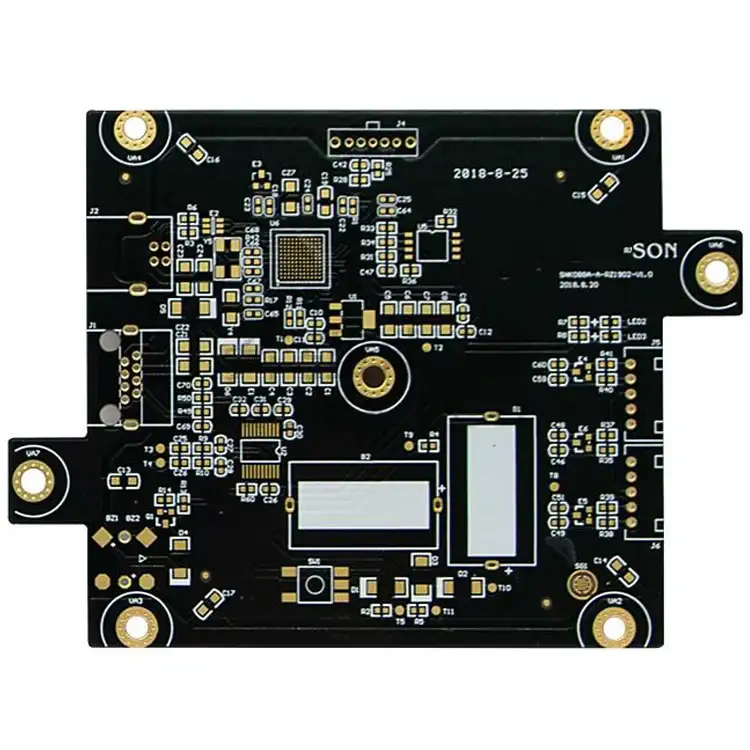

• Reinforcement of mounting holes: Whilst the overall design must be lightweight, it is essential to retain copper rings and solid areas of sufficient width around the mounting holes at the four corners to withstand the stresses caused by screw tightening and the impact of a crash.

III. The trend towards integrated component selection

Another key factor in PCB lightweighting lies in reducing the number of components on the board. A new generation of highly integrated chips is changing the game. For example, Microchip’s latest LX4580 mixed-signal IC integrates pressure sensing, PWM motor drive, current sensing, Hall-effect sensor inputs, dual LVDT/rotary transformer interfaces and dual high-speed SAR ADCs into a single 144-pin LQFP package. This device directly replaces the separate MCUs, ADCs, DACs and driver ICs found in traditional architectures, **significantly reducing PCB routing complexity and the number of external passive components, thereby freeing up valuable board space and making it possible to reduce PCB dimensions.

Conclusion

Lightweighting drone PCBs is a systematic process that spans everything from materials to manufacturing techniques. From selecting the right substrate to optimising every millimetre of copper trace, and incorporating highly integrated core components, the cumulative effect of every detail ultimately translates into those extra few minutes a drone can spend in the air, or those extra few hundred grams of payload it can carry.
