The Eight Pillars of High-Quality PCBA Manufacturing: Systematic Assurance from Raw Materials to Environmental Control

Home | Events | PCB | About Us | News | Contact Us

In a market characterised by rapid product iteration, PCBA factories face significant challenges in ensuring high-quality electronic assembly production processes. High-quality PCBA production not only affects product performance and service life, but also has a direct impact on brand reputation and market competitiveness. So, how can PCBA factories ensure high-quality electronic assembly production processes? This article will explore in depth the eight pillars of high-quality PCBA manufacturing, revealing the underlying logic of systematic quality assurance.

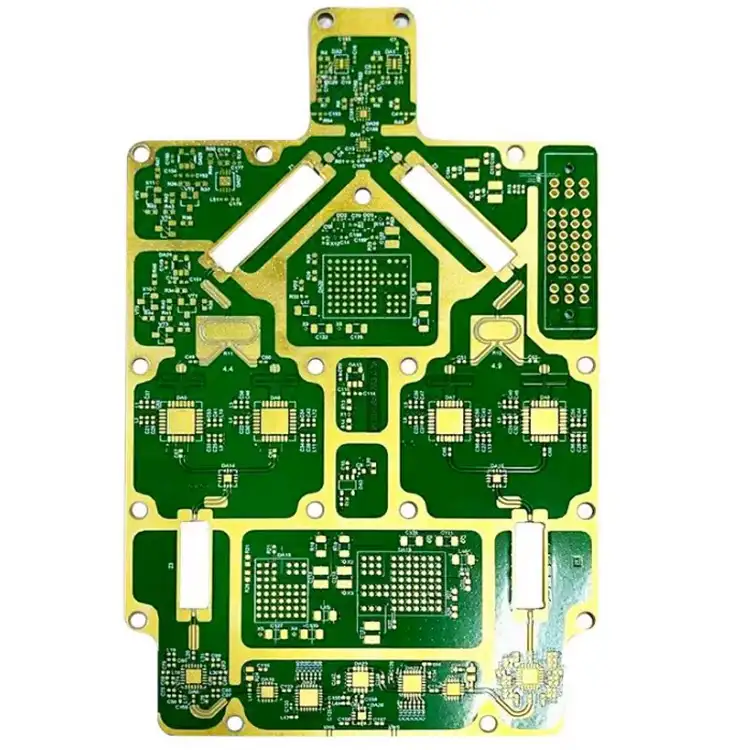

Ⅰ. Strict quality control of raw materials


Ⅱ. Advanced Process Design and Optimisation

1.Process design is a critical step in ensuring high-quality PCBA production. Professional PCBA factories invest significant resources in process research, development and optimisation. Firstly, they adopt a Design for Manufacturing (DFM) approach, taking manufacturability into account right from the product design stage. This means that process engineers need to liaise closely with the client’s design team to provide expert advice on aspects such as circuit layout and component selection.

2.Secondly, bespoke process routes are tailored to the specific characteristics of each product. High-density boards require more precise stencil aperture designs; flexible boards require specialised carrier support; and thick copper boards require adjustments to the reflow soldering temperature profile to accommodate greater thermal capacity. The development of these customised process solutions demands extensive experience and rigorous validation procedures.

3.The continuous optimisation of process parameters is equally important. Through Design of Experiments (DOE) methods, the impact of parameters such as stencil thickness, printing pressure and reflow temperature on solder joint quality can be systematically investigated to identify the optimal process window. Standard Operating Procedures (SOPs) are established to ensure that every process step has clear operational guidelines.

Ⅲ.Precision manufacturing equipment and automation

1.Modern PCBA factories rely on high-precision equipment to ensure production quality. Imported high-end SMT equipment, such as placement machines from brands like Fuji and Panasonic, can ensure placement accuracy within ±0.05 mm. High-speed placement machines, combined with vision alignment systems, can reliably handle micro-components of 0201 size and smaller.

2.In the inspection phase, AOI (Automated Optical Inspection) equipment performs automated checks on solder joint quality; SPI solder paste inspection systems monitor solder paste printing quality in real time to prevent soldering defects. The introduction of automated test equipment not only enhances testing efficiency but also ensures the consistency and repeatability of test results.

3.It is worth noting that the value of the equipment lies not only in the hardware itself but also in the accompanying software systems and maintenance framework. Regular calibration, preventive maintenance and spare parts management—these seemingly basic tasks are, in fact, key to ensuring the long-term stable operation of the equipment.

Ⅳ.Comprehensive Quality Control System

1.Multi-tiered quality inspection is a crucial safeguard for ensuring the quality of PCBA. First-article inspection is an essential step prior to each production batch—it verifies process feasibility and prevents the occurrence of batch defects. In-process inspection involves regular sampling checks during production to promptly identify any abnormal fluctuations. Final inspection entails a 100% visual and functional check of the finished products to ensure that shipped items meet quality standards.

2.Reliability testing serves as an extension of the quality inspection system. High-temperature ageing tests simulate long-term operating conditions to identify early failures; vibration tests verify the product’s resilience during transport; and drop tests assess the product’s mechanical strength. Although these tests are time-consuming, they are indispensable for high-reliability products.

Ⅴ.Data-driven quality improvement

1.Leading PCBA factories establish comprehensive data collection and analysis systems. The MES system monitors production data in real time; every production parameter is recorded, ranging from solder paste print thickness to reflow soldering temperature, and from placement offset to AOI inspection results.

2.By applying SPC (Statistical Process Control) methods, abnormal trends can be identified promptly. For example, when the offset of a particular placement machine gradually increases, the SPC control chart will issue an early warning, indicating that the equipment requires calibration, thereby avoiding a reactive response only after specifications have been exceeded. A quality traceability system is established to ensure full traceability from raw materials to finished products. Should a quality issue arise, the affected batch can be quickly identified and the root cause traced.

3.Regular quality analysis meetings are held to formulate corrective and preventive actions in response to issues. This PDCA cycle of continuous improvement serves as the driving force behind the ongoing optimisation of the quality system.

Ⅵ.Staff Training and Skills Development

1.A highly skilled workforce is central to quality assurance. Advanced equipment requires skilled operators, and precision processes demand experienced engineers. A comprehensive training system, comprising induction training, on-the-job training and regular refresher courses, ensures that every employee possesses the necessary knowledge and skills.

2.A skills certification system ensures that operators possess the appropriate qualifications. SMT operators must master skills such as placement machine programming and fault troubleshooting; inspectors must be familiar with the IPC-A-610 standard and be able to accurately identify various defects. We foster a quality-conscious mindset among staff, embedding the ‘quality first’ philosophy into our corporate culture. We have established an incentive scheme to encourage employees to propose quality improvement suggestions, thereby transforming the insights of frontline staff into productive output.

Ⅶ.Environment and ESD Control

1.The production environment has a significant impact on PCBA quality. The SMT workshop must maintain a Class 100,000 cleanroom standard to prevent dust from causing short circuits or soldering defects. Temperature and humidity must be controlled at 22±3°C and 40–60% RH to prevent solder paste from absorbing moisture or PCBs from warping.

2.Electrostatic discharge (ESD) protection is another key aspect of environmental control. Operators must wear anti-static wrist straps and bracelets, and workbenches must be fitted with anti-static mats. Components must be stored in anti-static packaging, and transport trolleys must be earthed. For electrostatic-sensitive devices, such as MOSFETs and high-frequency ICs, additional protective measures must be implemented. The effectiveness of the ESD protection system must be regularly tested to ensure that the ESD control system remains under control at all times.

Ⅷ.Continuous Improvement and Innovation

1.Quality improvement is a never-ending process. By adopting lean manufacturing principles, we eliminate waste and enhance efficiency—reducing material handling distances through optimised production line layouts and minimising changeover times through rapid changeovers. We employ Six Sigma methodologies to reduce variation and improve process capability—resolving complex quality issues through the DMAIC process system and quantifying the results of improvements using statistical tools.

2.Keeping abreast of the latest industry technologies, such as assembly processes in emerging fields like 5G and AIoT. Participating in the formulation of industry standards to maintain a leading technological position. Establishing technical partnerships with customers and suppliers to jointly tackle process challenges. This open and innovative approach enables PCBA factories to remain at the forefront of technological change.

Conclusion

Through the systematic quality management measures outlined above, specialist PCBA factories are able to ensure high-quality output throughout the electronic assembly production process. In an increasingly competitive market environment, only through continuous investment in quality management can companies guarantee product reliability whilst meeting customers’ comprehensive requirements regarding cost, lead times and other factors, thereby securing opportunities for long-term collaboration. Quality is not inspected into existence, but rather designed and manufactured into the product—a philosophy that should permeate every stage of the PCBA manufacturing process.
