In the field of PCBA，the solder paste printing process is the foundation upon which successful electronic assemblies are built. At KINGSHENG PCBA, we emphasize to our clients that if the first step is flawed, no amount of optical inspection or rework can fully recover the quality. Central to this process is the stencil tension.

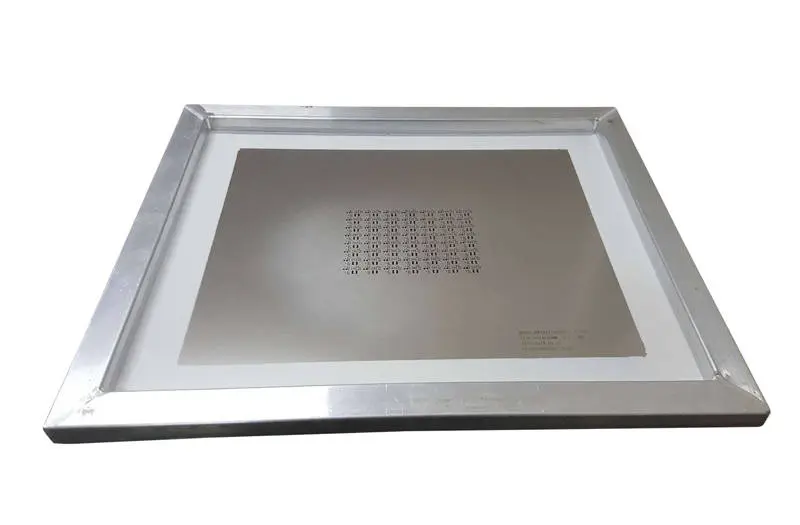

A stencil is essentially a precision tool. The metal foil must be stretched uniformly across a mesh frame to create a consistent plane. When this tension is correct, the stencil acts like a trampoline: it touches the PCB during printing, then snaps back immediately, leaving the paste perfectly deposited on the pads.

Ⅰ.The Symptoms of Low Tension

When a stencil loses its elasticity—often due to wear and tear, improper cleaning, or frame damage—it becomes "loose." This condition is a primary culprit behind a host of SMT assembly defects that we actively guard against at KINGSHENG.
If tension drops below the acceptable threshold (usually < 30 N/cm ), you will likely encounter:

• 1.Solder Bridging: A loose foil allows the squeegee to push paste underneath the stencil in areas where it shouldn't go, particularly between fine-pitch leads.
• 2.Skips and Smears: Instead of a clean release, the paste sticks to the stencil walls or smears across the aperture, leading to messy prints.
• 3.Tombstoning and Misalignment: Insufficient tension leads to inconsistent paste volume. Too little paste on one pad of a passive component (like a resistor) can cause it to lift and "tombstone" during reflow.

Ⅱ.Our Testing Frequency at KINGSHENG PCBA

To prevent these defects, KINGSHENG PCBA implements a strict stencil tension testing regimen. We don't rely on guesswork; we use calibrated tensiometers to measure force at multiple points on every stencil. But how often is "often enough"?

• 1.New Stencil Validation: Every new stencil entering our facility is tested immediately. We require a baseline reading of ≥ 40 N/cm to ensure it meets our quality benchmarks before it ever touches a production PCB.
• 2.Setup & Pre-Production Check: Every time a stencil is pulled from our inventory for a job, it is tested before setup begins. This catches any degradation that may have occurred during storage or from previous cycles.
• 3.Scheduled Re-Testing: For long-running production batches, we do not simply "set it and forget it." We conduct mid-run checks. If a stencil has a high usage history (approaching 50,000 prints), we increase the frequency of testing to ensure it hasn't suddenly fatigued.

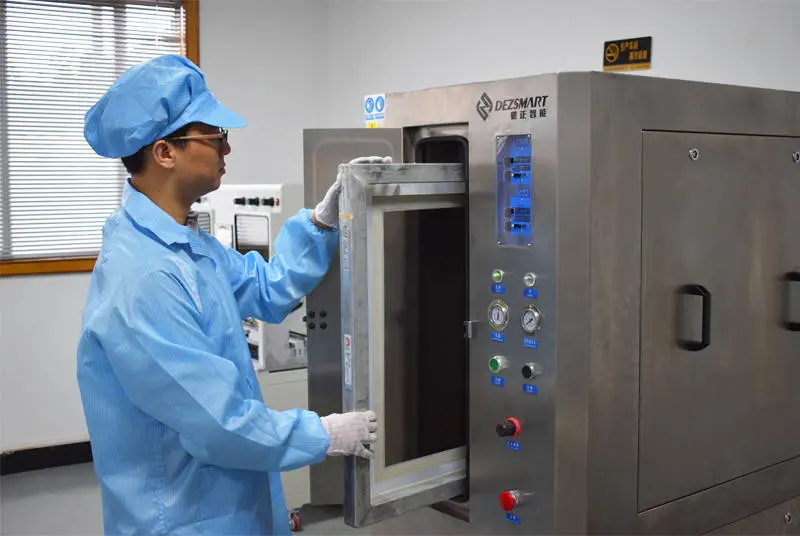

• 4.Post-Production Verification: After the job is complete and the stencil has been thoroughly cleaned, we perform a final test. If the tension has dropped below 35 N/cm, the stencil is flagged for retirement or re-stretching. This ensures that a worn-out tool isn't accidentally used for a critical future project.

Ⅲ.The KINGSHENG Commitment

By adhering to this rigorous testing schedule, KINGSHENG PCBA guarantees consistent solder paste deposition. We understand that proper tension equals proper gasketing, which equals a defect-free board. When you partner with us, you are ensuring that your assemblies are built using tools maintained to the highest industry standards.
