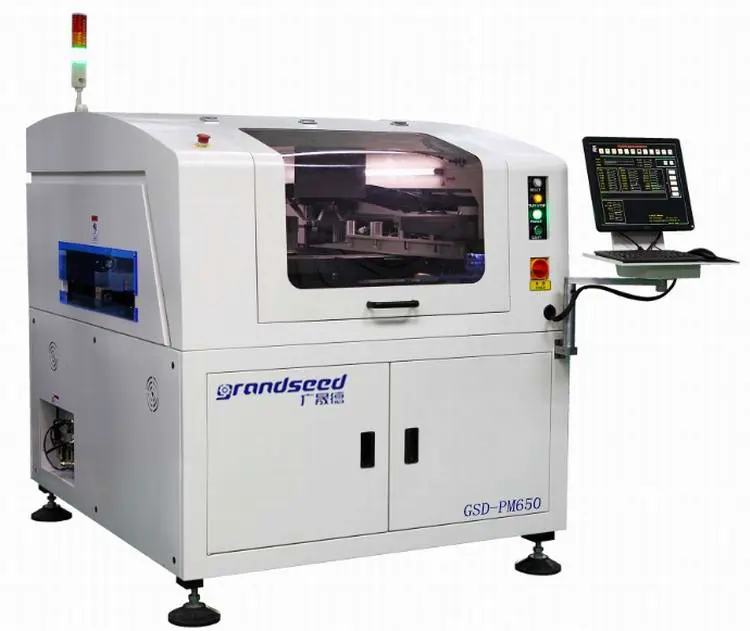

In the electronics manufacturing, the stencil printing process is the foundation of a successful SMT assembly line. At KINGSHENG PCBA, we know that even the most advanced pick-and-place machines cannot compensate for poor solder paste deposition. That is why we place immense emphasis on the selection of squeegee materials and angles—a decision that directly impacts yield, reliability, and production efficiency.

Two primary squeegee types dominate the industry: metal (typically stainless steel) and polyurethane. Each offers distinct advantages depending on the solder paste formulation and the specific board design. Here is how we leverage our production capabilities to match the right tool to the job.

Ⅰ.Metal Squeegees: Precision for Standard Lead-Free Alloys

Metal squeegees are the workhorses of high-volume SMT lines. Their rigid, non-deformable edge ensures consistent pressure across the stencil, creating an excellent seal that forces solder paste cleanly into apertures without smearing. At KINGSHENG PCBA, we deploy metal squeegees primarily for standard lead-free solder pastes, such as SAC305 (Sn96.5Ag3.0Cu0.5).

Ideal for Fine-Pitch Components: When printing for 0.4mm pitch QFNs or micro-BGAs, metal blades prevent bridging and ensure precise volume control. Their stiffness guarantees that paste is fully transferred, even from the smallest laser-cut apertures.

• High-Volume Stability: In long production runs, metal squeegees maintain their geometry, eliminating the need for frequent adjustments. This stability translates to consistent print quality across thousands of boards.
• Angle Matters: We typically set metal squeegees at a 60° attack angle. This steep angle maximizes downward pressure, forcing paste into apertures while keeping the stencil surface clean.

Ⅱ.Polyurethane Squeegees: Gentle Handling for Specialty Pastes

While metal excels at rigidity, polyurethane blades bring flexibility. The softer edge conforms to subtle variations in stencil and PCB topography, making them indispensable for certain applications.
At KINGSHENG PCBA, we switch to polyurethane squeegees when handling:

• Low-Temperature Solder Pastes (e.g., Sn42/Bi58): These alloys have different rheological properties and can be more sensitive to aggressive shearing. A polyurethane blade, typically set at a 45° to 55° angle, provides a gentler rolling action that deposits low-temperature pastes evenly without scooping them out of apertures.
• Flux and Adhesive Printing: For tacky materials like SMT adhesives or no-clean fluxes, poly blades reduce skipping and ensure complete coverage across the stencil.
• Uneven Substrates: When printing on flexible circuits, thick PCBs, or panels with warpage, the blade’s flexibility maintains contact, preventing insufficient solder deposits.

The trade-off is wear: polyurethane blades require more frequent replacement than metal, especially in high-abrasion environments with standard pastes.

Ⅲ.The Angle Factor: Fine-Tuning for Quality

Beyond material, squeegee angle is a critical parameter. At KINGSHENG PCBA, our process engineers calibrate angles based on the paste type and board complexity:
Steeper angles (60°) increase downward force, ideal for dense, fine-pitch designs.
Shallower angles (45°) create a larger rolling front, which helps with paste release for large ground planes or when using tackier materials.
We also adjust print speed and pressure in tandem with angle selection to achieve the perfect transfer efficiency.

ⅣConclusion: Matching Technology to Demand

At KINGSHENG PCBA, we do not believe in a one-size-fits-all approach. Our production floor is equipped to seamlessly transition between metal and polyurethane squeegees, ensuring that every solder paste—whether standard SAC305 or a specialty low-temperature alloy—is printed with optimal consistency. By understanding the interplay between blade material, angle, and paste rheology, we deliver boards with impeccable solder joint integrity, no matter the complexity.
