What Causes Solder Joint Failure in PCBA Processing?

Home | Events | PCB | About Us | News | Contact Us

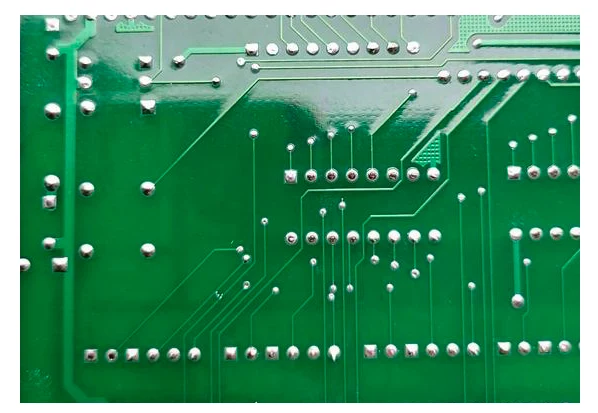

As the Operations Manager of a PCBA factory, my primary focus is not just on how fast we can assemble boards, but how reliable those boards will be in the field. In the electronics manufacturing industry, a solder joint is much more than a simple connection; it is the structural and electrical bridge that ensures a device functions correctly.

However, solder joint failure remains one of the most common causes of electronic product malfunction. When a joint cracks, becomes loose, or fails to conduct properly, the entire system can grind to a halt. Understanding the root causes of these failures is the first step in preventing them. Here, I will break down the primary reasons behind solder joint failure in PCBA processing.

1. Poor Welding Process Control (Reflow Soldering Issues)

The reflow soldering profile is the heartbeat of the SMT line. If the temperature curve is not set correctly, the solder paste will not melt and solidify as intended.

• Insufficient Heat: If the peak temperature is too low or the time above liquidus is too short, the solder paste may not fully melt. This results in a "cold solder joint," which looks grainy and has poor electrical conductivity and mechanical strength.
• Excessive Heat: Conversely, if the temperature is too high, it can damage the components or the PCB substrate. It can also cause excessive intermetallic compound (IMC) growth, making the joint brittle and prone to cracking under stress.

2. Solder Paste Quality and Management

Solder paste is a complex mixture of solder powder and flux. It is highly sensitive to environmental conditions.

• Oxidation: If the solder powder is oxidized before use (due to poor storage or expired shelf life), the flux cannot remove the oxide layer effectively during reflow. This leads to poor wetting, resulting in "virtual soldering" or weak joints.
• Improper Storage: Temperature fluctuations during storage can cause the flux to separate from the powder. Using degraded paste often results in solder balls or insufficient solder volume on the pad.

3. PCB and Component Oxidation

Even the best solder paste cannot fix a dirty surface. The solderability of the PCB pads and component leads is critical.

• Pad Oxidation: If the PCB has been stored for too long without proper sealing, or if the surface finish (like ENIG or HASL) is of poor quality, the copper pads will oxidize. Oxide layers act as a barrier, preventing the solder from bonding with the copper.
• Component Lead Oxidation: Similarly, if component terminals are oxidized, the solder will bead up rather than spread evenly. This creates a weak mechanical bond that can detach during vibration or thermal cycling.

4. Design Flaws: Thermal Mismatch and Stress

Sometimes, the failure is designed into the product before it even reaches the factory floor.

• CTE Mismatch: The Coefficient of Thermal Expansion (CTE) describes how much a material expands when heated. If the CTE of the component body differs significantly from the PCB substrate (e.g., a large BGA on a standard FR4 board), the joint will experience immense stress during temperature changes. Over time, this cyclic stress causes the solder joint to fatigue and crack.
• Pad Design: Incorrect pad sizes can lead to "tombstoning" (where one end of a component lifts off the pad) or uneven stress distribution.

5. Mechanical Stress and Handling

Solder joints, particularly those on leadless components like QFNs or BGAs, can be surprisingly fragile immediately after assembly.

• In-Circuit Testing (ICT): If the test probes apply too much pressure on the reverse side of the board, it can flex the PCB, causing micro-cracks in the solder joints.
• Depaneling: The process of breaking apart individual boards from a panel can generate significant vibration and mechanical shock. If not done carefully with proper routing or V-scoring, this shock can fracture the solder meniscus.

Conclusion

Solder joint failure is rarely the result of a single factor; it is usually a combination of material quality, process control, and design considerations. As a PCBA factory, our responsibility is to control the controllable variables—strict solder paste management, precise reflow profiling, and careful handling—to ensure the final product stands the test of time.

By understanding these failure modes, we can implement rigorous Quality Assurance (QA) protocols, such as X-ray inspection and cross-section analysis, to catch potential defects before they leave the factory. After all, a strong solder joint is the foundation of a reliable product.
