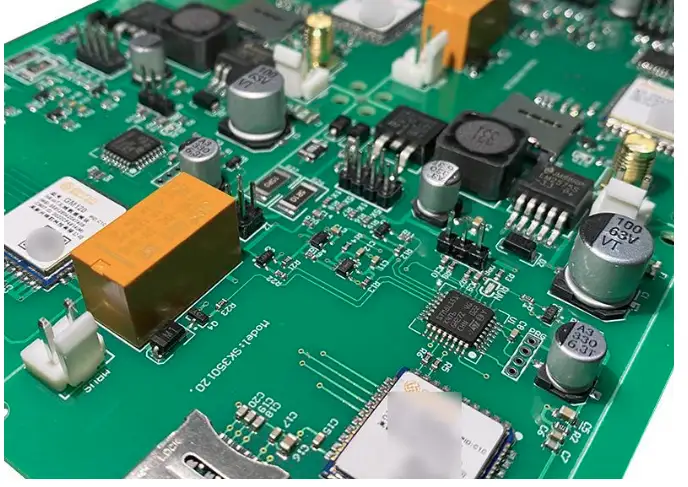

Wave soldering remains the backbone of Through-Hole Technology (THT) assembly. While Surface Mount Technology (SMT) gets much of the attention, the reliability of connectors and large components often depends on a stable wave soldering process. As an Operations Manager, I know that wave soldering is notoriously sensitive to process drift. When defects rise, the root cause is often a combination of parameter settings and, surprisingly, pallet maintenance.

Here is how we approach defect reduction and the often-overlooked necessity of fixture cleaning.

Common Wave Soldering Defects and Improvement Measures

To maintain a high First Pass Yield (FPY), we focus on the "Big Three" defects:

1. Solder Bridges (Shorts)
Cause: Excessive solder on the board, poor drainage, or an incorrect wave angle.
Improvement Measures:
Optimize the Wave Geometry: Adjust the immersion depth and the angle of the PCB travel. A slight increase in the conveyor angle often helps drainage.
Air Knife Adjustment: Ensure the hot air knife (if equipped) is correctly angled to blow off excess solder.
Flux Application: Verify flux uniformity; insufficient flux often leads to bridging due to poor wetting.

2. Cold Solder Joints
Cause: Insufficient heat transfer, often due to low preheat temperatures or fast conveyor speeds.
Improvement Measures:
Preheat Profile: Ensure the top-side temperature reaches at least 100-120°C before hitting the wave. This activates the flux fully.
Dwell Time: Slow the conveyor speed slightly to increase contact time with the solder wave.

3. Solder Balls
Cause: Moisture in the PCB or flux spattering during preheat.
Improvement Measures:
Baking: Pre-bake PCBs if they have been stored in humid environments.
Flux Control: Reduce the flux spray volume and ensure the preheat ramp is smooth to prevent rapid volatilization.
The Hidden Variable: Wave Soldering Fixture Cleaning
One of the most frequent mistakes I see in operations is neglecting the maintenance of the solder pallets (fixtures). Over time, flux residues build up on the pallet surface and, more critically, inside the component clearance holes.

Why Cleaning Matters:


• Contamination: Residue on the pallet can transfer to the next batch of PCBs, causing contamination or poor solder adhesion.
• Blocked Apertures: Flux buildup narrows the component holes, restricting the flow of solder and causing skips or insufficient fill.
• Thermal Insulation: A thick layer of residue acts as an insulator, preventing the pallet from reaching the correct preheat temperature, leading to thermal shock.

Introducing Wave Soldering Fixture Cleaning Agents
Simply wiping pallets with a rag is insufficient. We utilize specialized Wave Soldering Fixture Cleaning Agents to ensure process integrity.

Key Characteristics of Effective Cleaners:


• Flux Dissolution Power: These agents are formulated to break down rosin-based and synthetic flux residues that standard solvents cannot remove.
• Material Compatibility: A good cleaner must be safe for the pallet material (usually Durostone or composite materials). It should not cause swelling, cracking, or degradation of the composite resin.
• Fast Evaporation: To maintain production cycle times, the cleaner must evaporate quickly without leaving a film that could interfere with the next soldering cycle.
• Safety & Compliance: Modern cleaning agents should be non-flammable or have a high flash point and be compliant with environmental standards (low VOCs).
• Operational Workflow: At our facility, we schedule pallet cleaning at the end of every shift or after a set number of runs. We spray the fixture cleaning agent directly onto the pallet, use a non-abrasive brush to clear the apertures, and wipe clean. This simple step has reduced our defect rate by nearly 15% by eliminating "ghost" defects caused by dirty tooling.

Conclusion

Wave soldering success is not just about the solder pot; it is about the entire ecosystem. By rigorously controlling parameters and investing in proper fixture maintenance using dedicated cleaning agents, we transform wave soldering from a variable process into a predictable, high-quality operation.
