In today’s high-reliability electronics manufacturing, a robust PCBA quality control system is no longer optional — it is a core competitiveness factor. For industrial automation, medical devices, and automotive electronics, even the smallest defect can lead to system failure, safety risks, regulatory penalties, and massive recall costs. This comprehensive guide explains how a professional PCBA factory builds a complete quality control system, covering incoming inspection, SMT process control, testing methods, reliability validation, and continuous improvement mechanisms, helping buyers and engineers select the right manufacturing partner.

What Is a PCBA Quality Control System?

A PCBA Quality Control System is a full-process quality management framework that ensures every assembled circuit board meets design specifications, industry standards, and customer reliability requirements.
It covers:

• Incoming material inspection (IQC)
• SMT & THT production process control (IPQC)
• Automated and manual testing
• Reliability and environmental validation
• Data traceability and continuous improvement

A mature QC system focuses on defect prevention rather than post-production repair, ensuring stable yield, consistent quality, and predictable delivery.

Why PCBA Quality Control Is Critical in High-Reliability Industries

Different industries impose strict reliability requirements:

• Industrial Electronics
• 24/7 continuous operation
• Resistance to vibration, dust, heat, and humidity
• Long lifecycle and stable performance

• Ultra-high reliability
• Strict regulatory compliance (ISO 13485, IEC 60601)
• Zero tolerance for functional failure

Automotive Electronics

• Wide temperature range (-40°C to +125°C)
• High vibration and mechanical stress
• Compliance with IATF 16949 and automotive safety standards

Without a complete QC system, stable mass production becomes impossible.

Complete PCBA Quality Control System Framework

1. Incoming Quality Control (IQC): Quality Starts from Materials
More than 60% of PCBA defects originate from incoming materials. Strict IQC prevents defects from entering production.
Component Inspection

• BOM verification: Check part number, package, tolerance, polarity
• Appearance inspection: No oxidation, deformation, contamination
• Solderability testing: Ensure lead finish quality
• X-Ray sampling: For BGA, QFN, CSP internal defect screening
• ESD protection verification: Prevent electrostatic damage

PCB Board Inspection

• Surface cleanliness
• Warpage measurement (≤0.5% for BGA boards)
• Solder mask integrity
• Pad flatness and oxidation check
• Electrical continuity testing

Solder Paste & Consumables Inspection

• Alloy composition verification
• Viscosity and slump test
• Oxidation resistance
• Storage temperature & humidity compliance

2. Process Quality Control (IPQC): Stable Manufacturing Execution
Solder Paste Printing Control

• SPI inspection of solder volume
• Stencil aperture optimization
• Paste thickness control: 0.12–0.15 mm typical
• Printing pressure and speed optimization

• High-speed placement machines calibration
• Accuracy ≤ ±0.05 mm
• Component polarity and rotation detection
• Real-time AOI feedback

Reflow Soldering Process Control

• Temperature profile optimization
• Ramp rate: 1–3°C/s
• Soak zone stability
• Peak temperature control
• Cooling rate management

Typical Defects Prevented:

• Tombstoning
• Solder bridging
• Cold solder joints
• BGA voids
• Component shifting

3. Automated & Manual Inspection System
SPI – Solder Paste Inspection

• Paste height
• Area coverage
• Volume distribution

AOI – Automated Optical Inspection

• Component presence
• Placement accuracy
• Solder joint quality
• Polarity check

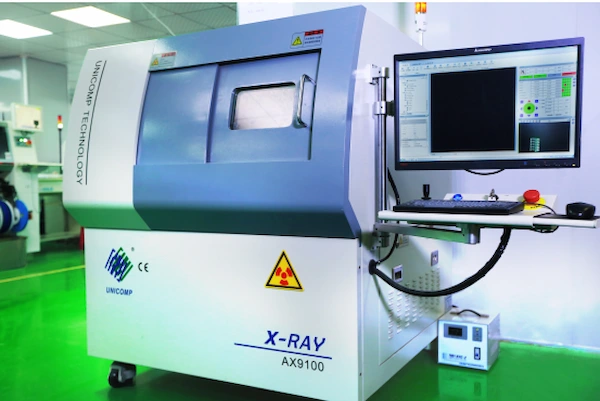

X-Ray Inspection

• BGA solder ball integrity
• Void ratio control (typically <25%)
• Hidden short circuits

Visual Inspection

• Fine-pitch manual verification
• Critical component confirmation

Purpose: Achieve zero-defect flow into functional testing.
4. Electrical & Functional Testing System
ICT – In-Circuit Test

• Open/short circuit detection
• Component parameter verification
• Power rail stability testing

FCT – Functional Circuit Test

• Simulate real working environment
• Software burning & verification
• Signal communication testing

HIPOT & Insulation Resistance Test

• Safety compliance verification
• High-voltage stress testing
• Leakage current control

Purpose: Guarantee full electrical and functional compliance.
5. Reliability & Environmental Testing
Thermal Testing

• High temperature: +85°C / +125°C
• Low temperature: -40°C
• Thermal shock cycling

Humidity Testing

• 85°C / 85% RH aging
• Corrosion and leakage prevention

Mechanical Reliability Testing

• Vibration testing
• Drop and shock testing
• Mechanical stress simulation

Aging Test (Burn-in Test)

• 8–72 hours continuous operation
• Early failure screening
• MTBF improvement

6. Quality Traceability & Continuous Improvement System
MES Manufacturing Execution System
Full traceability:

• Component batch
• Process parameters
• Equipment ID
• Operator records

SPC Statistical Process Control

• Defect trend analysis
• Process capability index (CPK)
• Yield monitoring

Root Cause Analysis & CAPA

• 8D analysis
• Fishbone diagram
• Corrective and preventive actions

Objective: Continuous yield improvement & defect elimination.

PCBA Quality Control Standards & Certifications

A reliable PCBA manufacturer should comply with:
ISO 9001 – Quality Management
ISO 13485 – Medical Electronics
IATF 16949 – Automotive Electronics
IPC-A-610 – Assembly Quality Acceptance
IPC-7711/7721 – Rework & Repair Standards
RoHS / REACH / UL compliance

How a Strong QC System Reduces PCBA Total Cost


Total manufacturing cost drops by 30–50% when yield exceeds 99.5%.

How to Evaluate a PCBA Factory’s Quality Control Capability

When selecting a PCBA supplier, buyers should evaluate:

• Does the factory have full IQC + IPQC + OQC process?
• Do they provide SPI + AOI + X-Ray + ICT + FCT?
• Are reliability and aging tests available?
• Is traceability system in place?
• Can they provide full quality documentation?

Conclusion: Quality Control Is the Core Competitiveness of PCBA Manufacturing

A complete PCBA quality control system ensures:

• Stable mass production
• High yield (>99.5%)
• Zero critical failure
• Long-term product reliability

For industrial, medical, and automotive electronics, choosing a PCBA manufacturer with a mature QC system is the single most important decision affecting product success.
