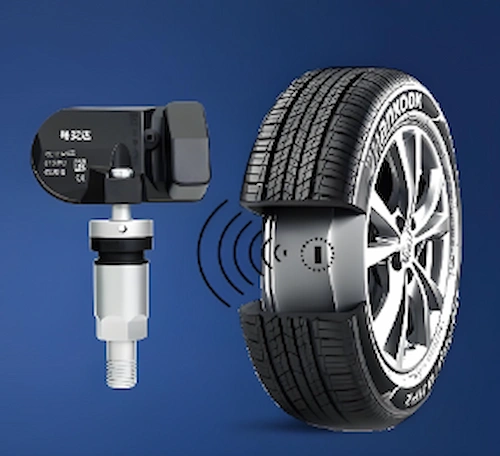

Proper tire pressure is more than just a maintenance item—it’s a critical factor in vehicle safety, fuel efficiency, and tire longevity. Tire Pressure Monitoring System (TPMS) transmitters provide real-time pressure data to drivers, and at the core of these compact, rugged devices are specialized printed circuit boards built to withstand extreme conditions.
At Shenzhen Kingsheng Tech Co., Ltd., we have over 15 years of experience designing and manufacturing PCBs for automotive electronics, including the demanding TPMS transmitter market. We partner with leading safety system suppliers and OEMs in Australia, the United States, and Italy to deliver reliable, high-performance solutions.
Understanding TPMS Transmitter Requirements
TPMS transmitters must operate reliably under the harshest automotive conditions:
Constant exposure to vibration and shock
Wide temperature extremes (-40°C to +125°C)
High centrifugal forces at highway speeds
Continuous exposure to moisture and road chemicals
Ultra-low power consumption for long battery life
Our PCB Solutions for TPMS Applications
1. Compact Sensor Integration Boards
Integration of pressure, temperature, and acceleration sensors
Optimized layouts for minimal board size
Robust interconnects for mechanical durability
Multi-layer designs in ultra-thin profiles
2. RF Transmission Boards
315/433 MHz UHF transmitter circuits
Efficient antenna designs for metal-wheel environments
Low-power RF amplification and modulation
Frequency stability under temperature variation
3. Power Management & Processing Boards
Advanced power management for 5-10 year battery life
Wake-up and sleep mode control circuits
Data processing and encryption for secure transmission
Self-diagnostic and fault reporting capabilities
Technical Excellence in TPMS PCBs
Extreme Environment Reliability
Specialized conformal coatings for chemical resistance
Vibration-resistant component mounting techniques
Thermal management for temperature extremes
Hermetic sealing support for sensor protection
Low-Power Optimization
Ultra-low-power microcontroller interfaces
Efficient DC-DC conversion circuits
Smart wake-up and transmission scheduling
Battery voltage monitoring and compensation
RF Performance in Challenging Conditions
Antenna designs optimized for wheel well mounting
Impedance matching for consistent RF output
EMI/EMC compliance in metallic environments
Transmission range optimization
Why Choose Our TPMS PCBs?
Proven Automotive Electronics Expertise
15+ years serving the automotive electronics industry
Deep understanding of TPMS market requirements
Experience with both direct and indirect TPMS systems
Knowledge of global regulatory requirements
Advanced Manufacturing Capabilities
High-precision SMT assembly for miniature components
Specialized testing for vibration and environmental resistance
Statistical process control for consistent quality
Experience with battery attachment and sealing processes
Quality & Reliability Assurance
IATF 16949 certified manufacturing
AEC-Q100/200 qualified components
Extensive environmental and life testing
Complete traceability and quality documentation
Customer Benefits
Complete solutions from design to volume production
Technical support for sensor integration challenges
Cost-effective designs without compromising reliability
Flexible production scaling for market demands
Applications & Market Coverage
Original equipment (OE) vehicle applications
Aftermarket replacement and upgrade solutions
Commercial vehicle and fleet monitoring systems
Specialty vehicle and motorsport applications
Future TPMS Innovations
Energy harvesting for battery-free operation
Advanced predictive maintenance capabilities
Integration with vehicle automation systems
Enhanced security and anti-tamper features
Partner with Us
TPMS transmitters represent one of the most challenging environments for automotive electronics. These devices must perform flawlessly for years while surviving conditions that would defeat most electronic systems.
Whether you're developing next-generation smart sensors or enhancing existing TPMS platforms, we have the expertise and manufacturing capabilities to support your requirements for reliability, performance, and cost-effectiveness.
Ready to enhance your TPMS solutions?
Contact Shenzhen Kingsheng Tech today to discuss how our specialized PCB solutions can help you build more reliable, efficient, and innovative tire pressure monitoring systems for the global automotive market.
