The Printed Circuit Board Assembly (PCBA) manufacturing process is a complex series of steps, each of which requires precision to ensure the final product functions reliably. However, various process issues can arise, leading to defects that affect the quality and performance of the finished assembly. In this blog post, we’ll address two common process problems in PCBA manufacturing—solder paste printing defects and placement accuracy issues—and provide effective solutions to mitigate these challenges.

1. Solder Paste Printing Defects

Problem Description:
One of the most common issues in PCBA manufacturing is solder paste printing defects, such as uneven printing or missed areas. If the solder paste is not applied evenly across the PCB or certain areas are left unprinted, it can result in poor solder joints, leading to electrical failures, weak connections, and the need for costly rework.

Solution:
To address solder paste printing defects, several measures can be implemented. First, regular cleaning of the stencil is crucial to prevent blockages that can lead to uneven paste application. Stencils should be cleaned to remove any residual paste that could obstruct the flow during the printing process.

Adjusting the printing machine’s pressure and speed parameters is also vital for ensuring consistent paste deposition. If the pressure is too low or too high, it can result in insufficient or excessive paste application, both of which affect the quality of the solder joints.

Additionally, using high-quality stencils and solder paste ensures that the paste adheres properly and flows consistently across the PCB. Poor-quality paste can result in poor print quality and less reliable soldering.

2. Placement Accuracy Issues

Problem Description:
Another challenge in PCBA manufacturing is placement accuracy. When components are not placed correctly on the PCB, it can lead to issues such as misalignment, poor solder joints, or component damage. Factors like temperature fluctuations and machine vibrations can cause components to shift or become misaligned during placement, which negatively affects the final product.

Solution:
To resolve placement accuracy issues, the vision system of the pick-and-place machine should be regularly calibrated to ensure precise component placement. Accurate vision systems allow the machine to identify the exact location of each component and ensure it is placed in the correct position on the PCB.

Optimizing the placement program and using accurate positioning tools can greatly improve placement accuracy. Adjusting placement pressure, speed, and component handling settings helps prevent misplacement during the pick-and-place process.

Controlling temperature and time during soldering is also crucial to keep components in place. Too much heat or incorrect timing can cause components to shift. Therefore, careful temperature control minimizes the risk of misalignment during soldering.

Another important factor is to review the design of PCB reference points. Ensuring that the reference points are accurately designed and easily identifiable helps the placement machine align the components correctly.

In some cases, adhesive or glue can be used to fix components in place before soldering, further preventing component movement during the soldering process. This ensures that the components stay exactly where they need to be for precise soldering.

Conclusion

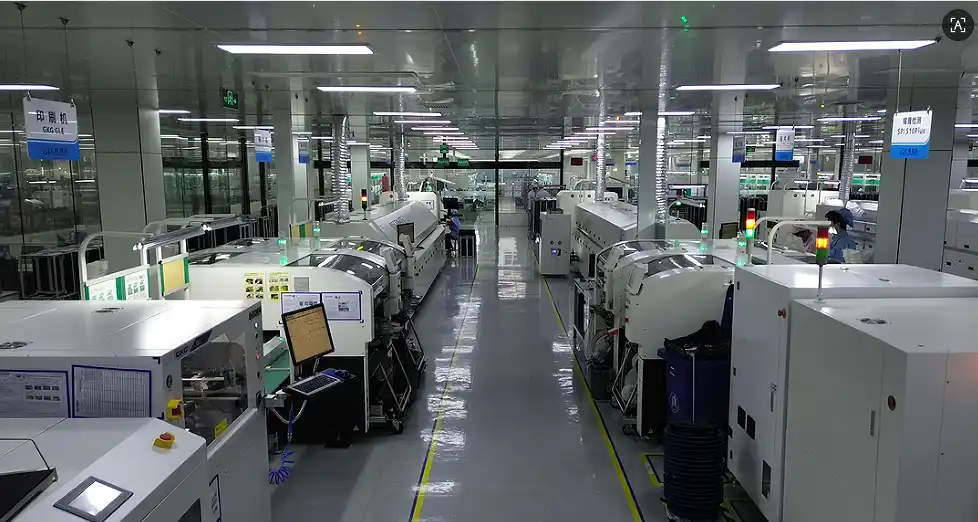

In PCBA manufacturing, solder paste printing defects and placement accuracy are common issues. With a skilled team and advanced equipment, Kingsheng PCBA effectively addresses these challenges, ensuring high-quality products.

By cleaning stencils, using quality materials, and adjusting printing settings, we improve solder paste quality. For component placement, we calibrate equipment, optimize programs, and control soldering temperatures. Standardized processes and adhesives also help prevent component movement.

These methods, along with regular maintenance and monitoring, reduce defects and rework, meeting the high standards of the electronics market. Through continuous improvement, Kingsheng PCBA enhances product reliability, boosts customer satisfaction, and maintains competitiveness.
