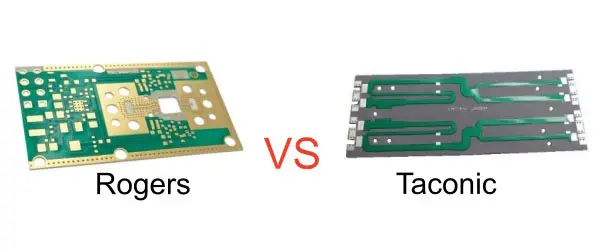

In RF and high-speed digital circuit design, choosing the right PCB material is crucial for system performance. Faced with a variety of high-frequency board brands, Rogers and Taconic, two leading players, often become the focus of engineers' selection. This article compares these two types of materials from the perspectives of key indicators, typical applications, and cost to help you make a quick decision.

I. Core Parameter Comparison: More Than Just Dielectric Constant

1. Dielectric Constant (Dk) Stability
*Rogers: Uses PTFE composite materials, with multiple Dk values available between 2.2 and 10.2, offering excellent temperature stability (±15ppm/°C). The RO4000 series exhibits Dk variation of less than 2% over a wide bandwidth.
*Taconic: Renowned for its ceramic-filled PTFE, offering a Dk range of 2.1-10.0, providing more refined gradient options. Its RF-35 series exhibits Dk fluctuation <0.025 at 24GHz.

2. Dissipation Factor (Df) Performance
*At 10GHz, Rogers RO3003 has a Df of 0.0013, while Tecnikov TLY has a Df of 0.0009, with the latter having a slight advantage in the millimeter-wave band. However, Rogers RO4835 (0.0035) strikes a balance between cost and performance.

3. Other Key Indicators
*Thermal Conductivity: Rogers uses high thermal conductivity fillers, with RO4350B reaching 0.69 W/m/K, suitable for high-power applications.
*Z-Axis Expansion Coefficient: Tecnikov Tac-PLY (25ppm/°C) is slightly better than Rogers RO4000 (40ppm/°C), making it more favorable for the reliability of multilayer boards.

II. Application Scenarios Matching: Choose the Right One, Not the Most Expensive

Rogers Preferred Scenarios

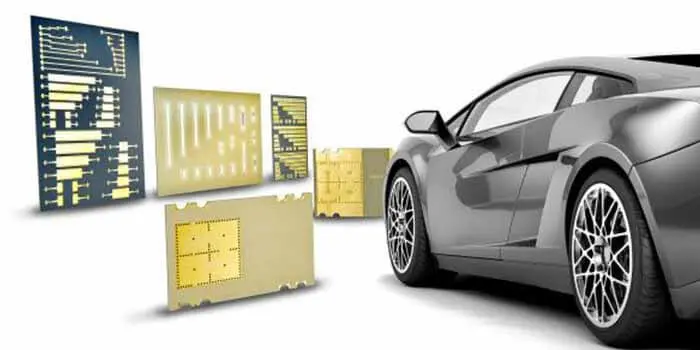

1. Automotive-grade Radar (77GHz): RO4830 is recommended; its Dk tolerance of ±0.05 ensures phase consistency.
2. Power Amplifiers: RO4350B's thermal conductivity supports smaller heatsink designs.
3. Multilayer Hybrid Lamination: RO4450F prepreg has proven compatibility with FR4.

Taconic Preferred Scenarios
1. Satellite Communication (Ka-band): The TLY series offers significant low-loss advantages.
2. Massive Array Antennas: Taconic RF-35's batch consistency is controlled within ±0.02.
3. Cost-Sensitive Mass Production: 15-25% lower price compared to comparable performance.

III. Overall Analysis of Process and Cost

1. Processing Complexity
*Rogers provides detailed drilling and copper plating parameters; the RO3000 series can directly use the FR4 process.
*Tecumseh materials require strict control of the lamination temperature profile, but free process training is provided.

2. Calculation of Total Cost
Taking 1000pcs 10-layer boards (20GHz) as an example:
*Rogers RO4350B solution: Material cost accounts for 38%, yield is typically 94-96%.
*Tecumseh RF-35 solution: Material cost accounts for 31%, but requires an additional 2% process debugging cost.

IV. Selection Decision and Recommendations

1. Frequency > 30GHz: Prioritize testing the insertion loss of the Tecumseh TLY series.
2. Power density > 0.5W/mm²: Rogers RO4350B has better thermal management.
3. Limited budget and batch size > 5k: Taconic's significant cost advantage.
4. Hybrid dielectric design: Rogers' bonding sheet system is more mature.

V. Future Trends

5G millimeter-wave base stations are driving material iteration: Rogers' RO4835™ LoPro version is optimized for low-profile copper foil, while Taconic has launched the Taconic TLY-5G series. It is recommended to request the latest batch samples for actual testing—small improvements in material processing can bring a system-level improvement of 0.2dB.

Finally, a word of advice: Regardless of the material chosen, be sure to create 1-2 test boards and measure the Dk/Df curves as a function of temperature and frequency. High-frequency circuit performance is always based on the true properties of the material, not the numbers in the datasheet.
