In today's booming smart agriculture, field sensors are becoming the fundamental sensing units for agricultural datafication. However, the harshness of the agricultural environment—continuous sun exposure, torrential rain, high humidity, fertilizer and pesticide corrosion, and even insect intrusion—places extremely high demands on the reliability and lifespan of electronic devices. As a professional PCBA assembly plant, we delve into agricultural application scenarios and have developed a comprehensive specialized PCBA assembly solution, from material selection to manufacturing processes, truly enabling electronic products to operate stably and for extended periods in the fields.

I. Core Assembly Process: Sealing and Protection

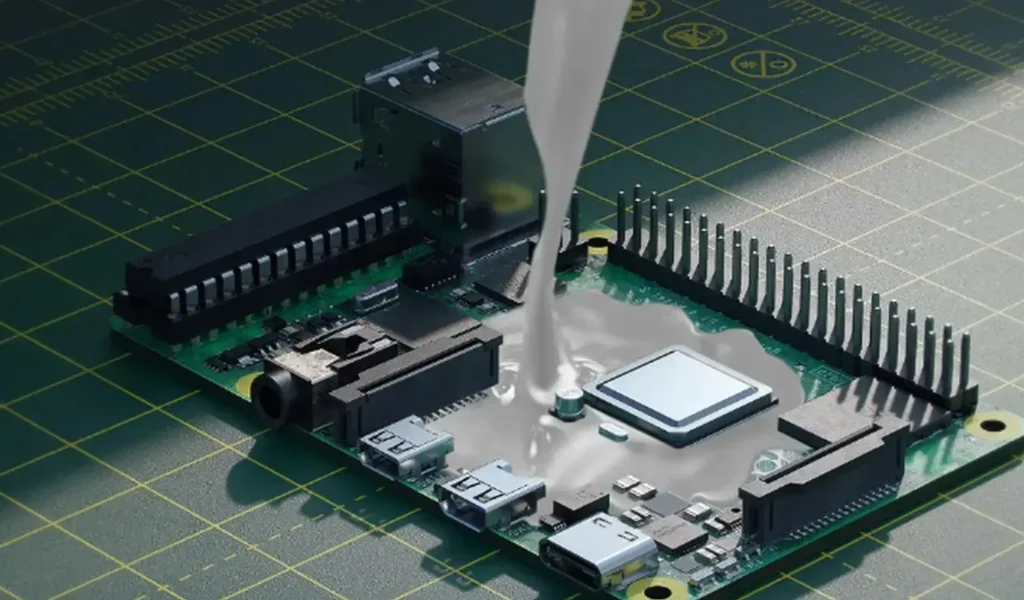

1. Fully Sealed Potting Process
This is our core process for meeting outdoor challenges. High thermal conductivity insulating potting compound is used, followed by precision potting after complete assembly. This process achieves: *Waterproof and moisture-proof: Completely isolates liquid water and water vapor, achieving a protection level of IP68 or higher.
*Corrosion resistance: Effectively resists corrosion from fertilizers, pesticides, and other chemicals.
*Vibration Resistance: The cured colloid provides structural support for the entire PCBA, adapting to the vibration environment of agricultural machinery operation.
*Heat Dissipation Management: The thermally conductive potting compound evenly dissipates heat from components to the housing.

2. Conformal Coating Process
For modules requiring future maintenance, we employ selective conformal coating technology:
*Uses silicone-based conformal coating, offering excellent flexibility and a wide temperature range (-60℃~200℃).
*Precision spraying equipment ensures a uniform coating, avoiding excessive thickness that could affect connector mating or heat dissipation.
*Precisely cover the areas such as connectors and interfaces, while maintaining their functionality.

II. Material Selection and Pre-treatment

1. Component Pre-treatment
*Reinforcement Treatment: Underfill adhesive is used to reinforce BGA, QFN, and other packages to prevent solder joints from cracking due to thermal expansion and contraction.
*Coating Protection: A protective layer is pre-coated onto sensitive components to enhance corrosion resistance.
*Stress Relief: Stress relief structures are added to wire harness interfaces to prevent connection failure due to long-term use.

2. Connector and Interface Processing
*Use waterproof connectors (IP67 or higher).
*Employs a double-sealing design with silicone sealing rings and threaded locking.
*Uses waterproof and breathable valves at the interfaces to balance internal and external air pressure while preventing moisture ingress.

III. Low-Power Assembly Optimization

1. Power Management Unit Assembly Key Points
*Uses low thermal resistance solder paste to solder power devices, optimizing heat dissipation paths.
*Reinforces battery connection points to ensure long-term contact reliability.
*Uses no-clean solder paste in low-power circuit areas to avoid micro-current leakage caused by residue.

2. Special Treatment for Antenna Modules
*The wireless transmission antenna uses a flexible connection design to prevent rigid connections from breaking under vibration.
*The thickness of the encapsulation glue in the antenna area is strictly controlled to ensure that the signal transmission is not affected.

IV. Testing and Verification System

1. Process Inspection
*Performs 100% electrical performance testing before potting to ensure PCBA functionality.
*Monitors parameters such as colloid temperature, viscosity, and curing time in real time during the potting process.
*X-ray inspection is performed after potting to confirm the absence of defects such as bubbles and voids.

2. Reliability Verification
*Environmental stress screening: Temperature and humidity cycling test (-40℃~85℃, 95%RH, 5 cycles).
*Chemical tolerance test: Simulated environment of fertilizer and pesticide spraying, continuous monitoring of electrical performance.
*Protection rating test: IP68 waterproof and dustproof test to ensure compliance with nominal rating.
*Long-term aging test: 1000 hours of continuous operation in an environment of 85℃/85%RH.

Conclusion

Field sensors are not precision instruments in a laboratory, but specialized field equipment that needs to operate stably under wind and sun. Our specialized assembly solutions, from reinforcing every weld point to sealing every interface, and finally to the potting protection of the entire module, are all carefully designed and rigorously verified. With these solid manufacturing processes, we help agricultural technology companies ensure that smart hardware truly withstands the test of the field, providing a reliable data foundation for smart agriculture.
