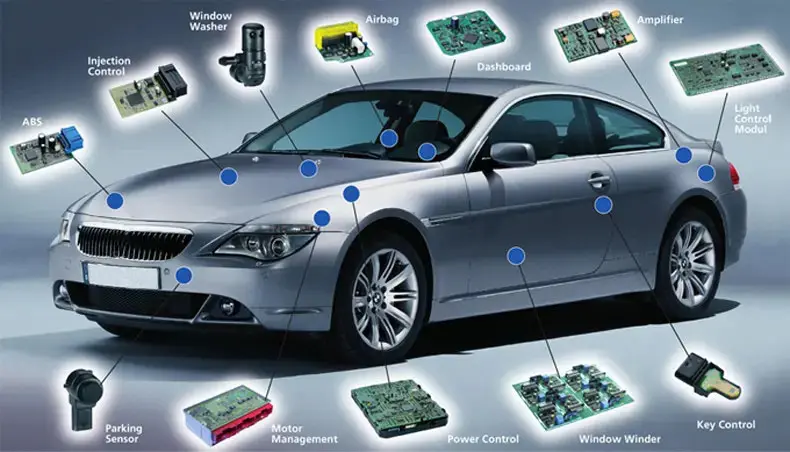

In the automotive electronics sector, "zero defects" is not merely a quality objective; it is a prerequisite for entering the supply chain. As a globally recognized quality management standard for the automotive industry, IATF 16949's core value lies in building a quality culture of prevention rather than inspection. For PCBA manufacturing, achieving zero defects means proactively managing risks in every process step.

Practical Application of IATF 16949 Core Tools in PCBA Manufacturing

PFMEA (Process Failure Mode and Effects Analysis) is the first line of defense in risk control. During the SMT (Surface Mount Technology) assembly stage, we identified the deviation in the solder paste printing thickness, which potentially could lead to incomplete soldering. Through root cause analysis, we adjusted the frequency of screen cleaning from every 200 pieces to every 100 pieces, reducing the risk coefficient from 128 to 45.
CP (Control Plan) converts the preventive measures from the PFMEA into executable instructions. In the reflow soldering process, the control plan clearly stipulates that the reflow oven temperature profile must be verified every 4 hours. Key parameters, including the ramp-up rate (1-3°C/s), peak temperature (235-245°C), and time above liquidus (45-90s), must be recorded in the process control chart.
SPC (Statistical Process Control) ensures process stability. We use X-R control charts to monitor solder paste volume, a critical characteristic of solder joint quality. By collecting solder paste measurement data in real time after printing, a maintenance alert is immediately triggered when seven consecutive points trend upwards, preventing the generation of batch defects.
MSA (Measurement System Analysis) ensures data reliability. A GR&R study is performed on the Automated Optical Inspection (AOI) equipment to ensure that the variance percentage of repeatability and reproducibility of the measurement system is less than 10%, which prevents misjudgment of product quality due to measurement errors.

Specific Control System for AEC-Q Certified Components

The reliability requirements for automotive electronic components far exceed those for consumer electronics, and AEC-Q certification is a basic requirement. We have established a four-level control process:
1. Factory entry verification: In addition to routine Certificate of Conformance (COC) verification, samples are taken from each batch for solderability testing to ensure that the component leads still meet soldering requirements after accelerated aging.
2. Storage Control: A dedicated anti-static storage area is set up, with real-time temperature and humidity monitoring (22±3°C, 40-60%RH). Moisture Sensitive Devices (MSD) are classified according to their moisture sensitivity level, and must be soldered within 24 hours after the vacuum packaging is opened.
3. Process Adaptation: A separate reflow soldering profile is developed for AEC-Q100 certified chips. It is essential to strictly control the component body temperature to not exceed the certified temperature rating, reduced by a margin of 10°C.

Bidirectional Traceability Chain: A two-way traceability chain is established, which extends from the wafer lot number to the PCBA finished product. Any anomaly can be precisely located to the original production batch.

Zero-Defect Implementation Mechanism

Technical tools must be integrated with a quality culture to truly achieve zero defects. We promote the "Three No's Principle": do not accept defective products, do not manufacture defective products, and do not pass on defective products. Responsibility is assigned to each workstation through quality gate control points. Daily quality meetings are held directly on the production line, and root cause analysis is initiated for any minor anomaly.
In the automotive electronics arena, the quality system is not a cost center; it is a core competency. Through the systematic implementation of IATF 16949 tools and the full lifecycle management of AEC-Q components, we are building not only a production line that meets automotive specifications but also a quality assurance capability that earns the trust of original equipment manufacturers. The next generation of smart cars will run on today's PCBAs, and a zero-defect system is the only option to bear this responsibility.
