In SMT assembly, several process steps are critical to final product quality.
If these steps are well controlled, stable yield and long-term reliability can be achieved.
If not, manufacturers may face reflow defects, low yield, and reduced production efficiency.
Among all SMT processes, reflow soldering is one of the most critical stages. However, soldering defects are not caused by reflow temperature alone. In practice, reflow quality is the result of design, materials, equipment, and process conditions working together.

1. Reflow Soldering Issues Are Not Only Process-Related
Many engineers mistakenly attribute soldering defects solely to reflow profiles. In reality, reflow soldering quality can be affected by:

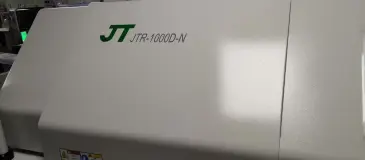

- Reflow oven performance and temperature uniformity
- SMT line configuration and environmental conditions
- PCB pad design and layout
- Component size, structure, and termination design
- Solder paste quality and printing consistency
- PCB surface finish and board quality
- Process parameters and operator handling
Among these factors, PCB pad design has the most significant influence on SMT reflow soldering quality.
2. Why PCB Pad Design Is Critical to Reflow Soldering Quality
A well-designed PCB pad can self-correct minor placement deviations during reflow through balanced surface tension.
Conversely, poor pad design cannot be compensated, even if placement accuracy is perfect.
If the pad geometry is incorrect, reflow soldering may result in:
- Component shifting
- Tombstoning
- Solder bridging
- Uneven solder fillets
Therefore, mastering PCB pad design principles is essential for reliable SMT assembly.
3. Key PCB Pad Design Principles for Reliable Reflow Soldering
Based on practical experience from SMT assembly factories, PCB pad design must ensure reliable solder joint formation. The following four principles are critical:
3.1 Pad Symmetry
Pads on both sides of a component must be symmetrical to ensure balanced surface tension during solder melting.
Asymmetrical pads often cause component movement or tombstoning.
3.2 Proper Pad Spacing
The overlap between component terminations (or leads) and pads must be correctly sized.
Improper spacing can lead to:
- Insufficient solder wetting
- Component misalignment
- Increased defect rates
3.3 Adequate Toe and Heel Allowance
After the component termination overlaps the pad, sufficient remaining pad length must be available to form a reliable solder fillet (meniscus).
This ensures mechanical strength and long-term reliability.
3.4 Consistent Pad Width
The width of pads should match the width of component terminations or leads.
Inconsistent pad width can result in uneven solder volume and unbalanced surface tension.
4. Common Reflow Soldering Defects and Their Root Causes
4.1 Tombstoning and Component Shift
These defects typically occur when:
- Pad spacing is too large or too small
- Pad sizes are mismatched or asymmetrical
In such cases, solder surface tension becomes unbalanced during reflow, pulling the component upright or causing displacement.
4.2 Insufficient Solder Volume
This often occurs when:
- Pads are connected to through-holes
- Solder paste flows into vias during reflow
As a result, insufficient solder remains on the pad, leading to weak or open joints.
5. Design Violations Lead to Manufacturing Losses
If PCB pad design principles are violated, SMT assembly may suffer from:
- Persistent soldering defects
- Production interruptions
- Increased rework and scrap
- Higher manufacturing costs
For this reason, SMT assembly manufacturers strongly recommend strict adherence to PCB pad design guidelines and DFM rules during the design stage.
Conclusion
SMT reflow soldering quality is a system-level result, not a single-process outcome.
While reflow profiles are important, PCB pad design, component compatibility, solder paste behavior, and process consistency play an equally critical role.
For industrial, medical, and automotive electronics, where solder joint reliability is non-negotiable, optimizing PCB pad design is one of the most effective ways to improve reflow soldering quality and overall yield.
