In SMT (Surface Mount Technology) assembly, low yield and high defect rates are common challenges that directly impact production cost, delivery time, and product reliability. SMT assembly quality is a critical factor in electronic manufacturing, as it determines the final product's performance, stability, and service life.

So how can manufacturers effectively improve SMT yield and ensure consistent assembly quality?

Based on real-world PCBA production experience, this article summarizes three core requirements that can significantly improve SMT first-pass yield (FPY) and reduce defect rates by up to 50%, covering the entire process from pre-production preparation to in-process control and final inspection.


1. Strict Material Management and Incoming Inspection

Component Quality Control
Electronic components are the foundation of SMT quality. Even with advanced equipment, poor materials will inevitably lead to defects.
        - Component selection: Ensure all SMT components (resistors, capacitors, ICs, etc.) meet datasheet requirements for package size, tolerance, temperature rating, and electrical parameters.
        - Critical components inspection: For key packages such as BGA, QFN, CSP, X-ray inspection should be applied to verify internal structure integrity and solder ball quality.
        - Supplier management: Work only with qualified and traceable suppliers. Regular audits of supplier quality systems help prevent counterfeit or substandard components from entering production.
        - Storage conditions: Control temperature and humidity (typically ≤10% RH for moisture-sensitive devices). Proper ESD protection is essential for static-sensitive components.

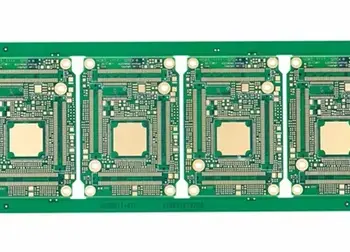

PCB Substrate Inspection
Before SMT assembly, the PCB itself must be thoroughly inspected:
        - Check board flatness, solder mask integrity, and pad surface condition
        - Ensure no oxidation, scratches, short circuits, or open circuits
        - Verify PCB dimensional accuracy and hole tolerance to prevent placement deviation

2. Precision Equipment Control and Process Optimization

Equipment Accuracy and Maintenance
High-precision equipment is meaningless without proper calibration and maintenance.
        - Pick-and-place machine calibration: Regularly calibrate nozzle vacuum pressure, placement accuracy, and rotation angles. Typical placement tolerance should be ≤ ±0.05 mm.
        - Solder paste printing control: Optimize stencil design (aperture size and shape) and control solder paste thickness (commonly 0.12–0.15 mm) to avoid solder bridging or insufficient solder.
        - Reflow soldering profile: Set appropriate ramp-up, soak, peak, and cooling profiles based on PCB material, component type, and solder paste. Improper thermal profiles may cause solder voids, cold joints, or component
damage due to thermal stress.

Key Process Parameter Optimization
        - Placement force: Adjust nozzle pressure to avoid cracked components or unstable placement
        - Speed control: Balance throughput and accuracy; high-speed placement must be dynamically adjusted according to component size and type
        - SPI and AOI inspection: Use SPI (Solder Paste Inspection) after printing and AOI (Automated Optical Inspection) after placement to monitor solder volume, component position, polarity, and orientation in real time

3. Comprehensive Inspection and Traceability System

In-Process and Final Inspection
A robust inspection strategy is essential for stable SMT yield:
        - First Article Inspection (FAI): For every batch and new product, the first assembled board must pass full inspection before mass production begins
        - X-ray inspection: Required for hidden solder joints on BGA, CSP, and QFN packages to detect voids, bridging, and insufficient solder
        - Electrical testing: Use ICT (In-Circuit Test) and FCT (Functional Circuit Test) to verify electrical performance, ensuring no shorts, opens, or parameter drift

Data Traceability and Continuous Improvement
        - MES system integration: Record key process parameters such as placement coordinates, reflow profiles, inspection results, and defect data for full traceability
        - Defect root cause analysis: Analyze common SMT defects (tombstoning, misalignment, cold solder joints) and identify causes such as clogged stencils or worn nozzles
        - Continuous optimization: Regularly review production data and fine-tune equipment and process settings. High-reliability SMT production typically targets defect rates of ≤50 ppm

4. Additional Factors That Significantly Affect SMT Yield

Environment control: Maintain cleanroom conditions (e.g., ISO Class 7), temperature at 22 ±2°C, and humidity at 45–65% RH to reduce dust and ESD risks
Operator training: Ensure operators are fully trained in SMT processes, equipment operation, and abnormal condition handling
Poka-yoke design: Implement error-proofing measures on PCB design, such as polarity markings and fiducial alignment holes, to prevent incorrect placement or orientation errors

Conclusion

Improving SMT yield is not the result of a single adjustment, but the outcome of systematic control across materials, equipment, processes, and inspection systems. By implementing strict material management, precision process control, and a complete inspection and traceability system, manufacturers can significantly improve first-pass yield, reduce rework costs, and ensure high reliability in electronic products.

For industries with stringent quality requirements—such as industrial automation, medical devices, and automotive electronics—these three principles are essential to achieving stable and scalable SMT production.
