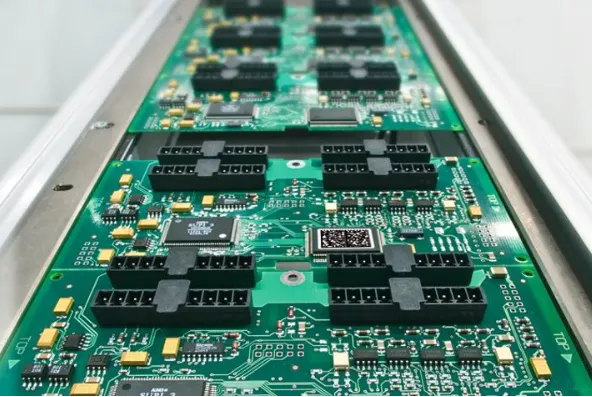

In the intricate world of Printed Circuit Board Assembly (PCBA) manufacturing, every component plays a vital role. Among these, connectors often hold a position that is both fundamental and frequently underestimated. They are the critical interfaces that enable electrical connectivity between the PCB and external devices or between different boards within a system. A poor connector choice can lead to signal integrity issues, power delivery failures, or mechanical breakdowns, undermining the entire assembly's reliability. This blog provides a concise guide to connector classification, selection, and trends in modern PCBA.


Classification: Understanding Connector Types

Connectors can be categorized to help narrow selection based on application needs:
1.By Function: Power connectors (e.g., AC/DC types) handle current delivery. Signal connectors (e.g., RCA, BNC) transmit analog or digital signals in audio/video systems. Data connectors (e.g., USB, RJ45, HDMI) are specialized for high-speed digital communication.
2.By Form Factor: Circular connectors offer robust, environmentally sealed solutions for aerospace and industrial uses. Rectangular connectors are common in automotive and robotics. D-Sub connectors (DB9, DB25) remain staples for legacy serial/parallel interfaces.
3.By Termination Method: Plug-and-socket types are ubiquitous for cable-to-board links. Board-to-board connectors stack or connect parallel PCBs. Press-fit connectors eliminate soldering by using a compliant pin pressed into a plated through-hole, ideal for high-reliability and automated assembly.
4.Selection Criteria: Key Parameters for a Robust Design
Choosing the right connector involves balancing multiple factors:
5.Electrical Performance: Evaluate current rating, contact resistance, and—critically for data paths—impedance matching, crosstalk, and bandwidth to ensure signal integrity.
6.Mechanical Performance: Consider mating cycle durability, insertion/withdrawal forces, and solder joint or retention strength to withstand physical stress.
7.Environmental Suitability: The operating environment dictates needs for temperature tolerance, moisture resistance, and robustness against vibration or corrosion (e.g., salt spray).
8.Cost-Effectiveness: While performance is paramount, optimizing cost across the entire project is essential. This includes considering the total cost of ownership, factoring in assembly time and potential field failures.

Installation and Future Trends

Proper installation is crucial. While soldering is traditional, requiring precise thermal profiles to avoid damage, press-fit technology is gaining traction for its reliability and compatibility with automation. Looking ahead, connector evolution is driven by several key trends: relentless miniaturization (smaller pitch, higher density); optimization for high-speed/frequency performance to support technologies like 5G and PCIe Gen5; designs tailored for automated manufacturing to improve yield and reduce cost; and enhanced foolproofing through color-coding, keying, and tactile features to prevent mating errors.

In conclusion, connectors are far more than simple passive components. They are engineered subsystems whose selection requires careful consideration of electrical, mechanical, and environmental demands aligned with the end application. By thoughtfully integrating connector selection into the early design stages, engineers can significantly enhance the performance, manufacturability, and long-term reliability of the final PCBA product.
