Practical Guide to Design for Manufacturability (DFM) in PCB Design

Home | Events | PCB | About Us | News | Contact Us

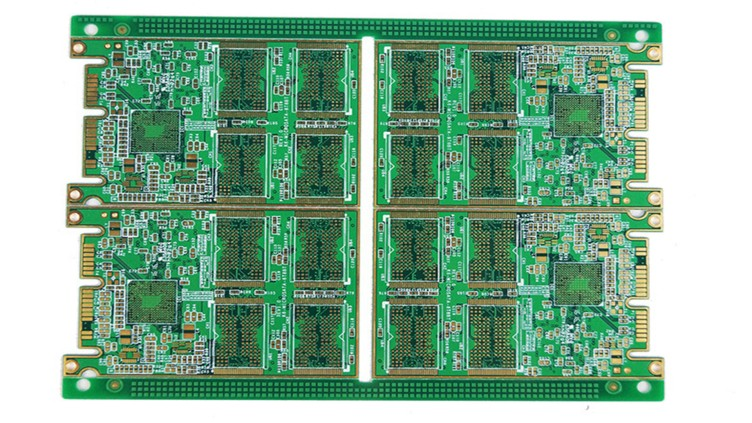

Design for Manufacturability (DFM) is essential for transforming a PCB design into a reliable, cost-effective product. By integrating DFM principles early in the layout phase, designers can reduce production errors, improve yield, and accelerate time-to-market. Below are key DFM considerations organized by design area.

1. PCB Layout DFM Guidelines

Component Placement: Group components by function (e.g., power, analog, digital). Place frequently adjusted or fragile components (e.g., connectors, crystals) in accessible areas.
Spacing: Maintain at least 0.5mm between SMT components to allow for soldering and inspection. For through-hole parts, adhere to standard pin spacing requirements.
Board Edge Clearance: Keep components and traces ≥10 mil from the board edge to prevent damage during panelization and assembly.


2. Pad & Via Design Best Practices

Pad Dimensions: Match pad size to component leads. For example, 0805 resistors/capacitors typically require pads measuring 1.2mm–1.4mm (length) × 0.6mm–0.8mm (width).
Via Sizing: Use 0.3mm–0.5mm vias for signals; increase size for power paths. Avoid excessively small vias that complicate drilling.
High-Speed Signals: Minimize via count in critical paths. For impedance-sensitive lines, use back-drilling or microvias to reduce stubs.

3. Routing DFM Recommendations

Simplicity: Prefer short, direct routes. Minimize vias and avoid sharp angles; use 45° or curved traces.
Spacing Rules: Apply the 3W rule (3× trace width between signals) to reduce crosstalk. Follow the 20H rule (power plane inset ≥20× dielectric thickness) to limit edge radiation.
Differential Pairs: Maintain equal length, consistent spacing, and same-layer routing.

4. Test Point Design

Accessibility: Place test points evenly across the board, avoiding obstruction by tall components.
Size & Finish: Use 0.6mm–1.0mm diameter test points with ENIG or HASL finish for reliable contact.
Coverage: Ensure all critical nets are testable. Consider using test point arrays or flying probe-compatible layouts.

Conclusion

Integrating DFM into PCB design is a proactive approach to preventing manufacturing issues, controlling costs, and ensuring smooth transition from prototype to mass production.

At KingshengPCBA, we offer professional DFM analysis and design feedback to help optimize your boards for manufacturability and performance.

Contact us to validate your design and streamline your next PCB production.
