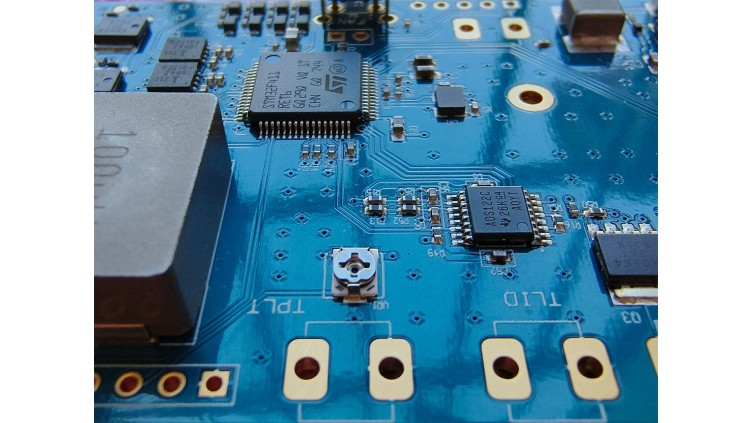

The SMT placement process is critical in PCBA manufacturing, yet several issues can arise during production that affect both quality and efficiency. Below is an analysis of common defects along with practical solutions.

1. Solder Paste Printing Defects

Insufficient Solder: Often caused by clogged stencil apertures, inadequate squeegee pressure, or inappropriate solder paste viscosity.
Solution: Regularly clean the stencil, optimize squeegee settings, and use solder paste with suitable viscosity.

Solder Bridging (Short Circuits): Typically results from excessive solder paste, misalignment, or poor separation.
Solution: Adjust stencil alignment, optimize printing parameters, and ensure proper paste volume control.

Paste Misalignment: Can occur due to warped PCBs or insufficient support during printing.
Solution: Improve PCB support with custom fixtures and verify PCB flatness prior to printing.

2. Component Placement Defects

Misalignment: Often caused by low placement machine accuracy, worn nozzles, or unstable feeders.
Solution: Calibrate placement equipment regularly, replace faulty nozzles, and maintain feeders.

Tombstoning: Usually due to uneven paste deposition or asymmetric pad design leading to imbalanced surface tension during reflow.
Solution: Optimize stencil design for uniform paste volume, balance pad size/layout, and fine-tune reflow profile.


3. Reflow Soldering Defects

Cold Solder Joints: May result from low peak temperature, short time above liquidus, or poor-quality solder paste.
Solution: Increase reflow temperature appropriately, extend dwell time, and use high-quality paste.

Solder Balls/Bridging: Can be caused by excess paste, high ramp rates, or oxidized paste.
Solution: Reduce stencil aperture sizes, adjust reflow profile (especially preheat zone), and ensure proper paste handling.

Oxidation Issues: Occur when oxygen is present in the reflow oven atmosphere.
Solution: Use nitrogen reflow ovens or monitor oxygen levels to maintain a clean soldering environment.
