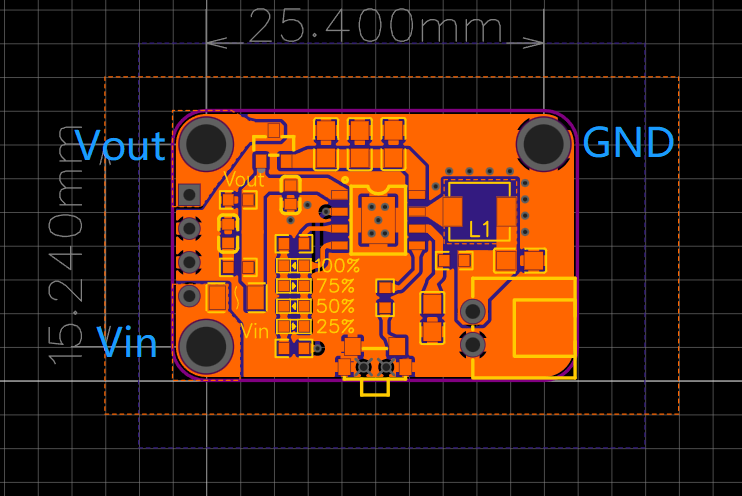

A single error in your PCB footprint can bring your entire assembly process to a halt. Incorrect pad sizes, misaligned components, or missing solder mask definitions lead to manufacturing defects, costly reworks, and frustrating project delays.

At Shenzhen KingshengPCBA, with over 15 years of experience manufacturing PCBs for clients in the United States, Australia, and Russia, we've seen how a well-designed footprint is the foundation of a successful board. Here are 5 practical rules to ensure your footprints are perfect for manufacturing.


1. Trust, but Verify the Datasheet

The component datasheet is your starting point, but it's not always perfect.

Find the "PCBA" Section: Look for a section titled "PC Board Layout," "Land Pattern Design," or "Packaging Information." This provides the recommended footprint.
Beware of "Nominal" Values: Some datasheets show idealistic dimensions. Cross-reference the recommended footprint with the component's actual measurements.
Use Library Tools with Caution: While EDA library tools are helpful, always double-check their output against the manufacturer's latest datasheet.

2. Master the Solder Pad Geometry

The solder pads are the most critical part of the footprint.

Pad Size is Key: Pads must be large enough to form a reliable solder joint but not so large that they cause bridging. A good rule of thumb is to extend the pad beyond the component's terminal by a small margin (e.g., 0.2mm - 0.5mm for chip components).
The Goldilocks Zone for Solder Mask: The solder mask opening (SMD) must be slightly larger than the copper pad. This prevents the mask from spilling onto the pad, which would hinder soldering, while still providing a sufficient barrier to prevent solder bridging.

3. Don't Forget the Human Touch: Silkscreen & Polarity

A clear silkscreen is vital for assembly, debugging, and rework.

Clear Outline: Draw a clear outline of the component body. This helps our operators visually verify correct placement and orientation.
Polarity Markings: For diodes, capacitors, and ICs, always include an unambiguous polarity indicator (e.g., "+", a band for diodes, a dot for pin 1). This is a simple step that prevents catastrophic assembly errors.

4. Design for the Real World: Assembly & Inspection

Think beyond the CAD screen to how the board will be built and checked.

Adequate Spacing: Ensure there is sufficient space between components for the soldering iron tip or rework nozzle during potential repairs.
Inspection Access: For BGAs or other hidden solder joints, consider adding side-view access for automated optical inspection (AOI) or space for X-Ray inspection.

5. The Golden Rule: Create a Physical Sample

This is the most reliable verification step.

Print and Check: Before finalizing your design, print your PCB layout at a 1:1 scale on a sheet of paper.
Place the Component: Take a real component and place it directly onto the printed paper footprint. This instantly reveals any errors in size, spacing, or orientation.

Your Partner in Design for Success

Perfect footprint design requires a blend of meticulous attention to detail and practical manufacturing knowledge. Even a small error can be costly to fix once the boards are produced.

With our 15+ years of industry experience and deep understanding of the manufacturing process, the team at Shenzhen Kingsheng Tech is your ideal partner. We offer comprehensive DFM (Design for Manufacturability) checks on every order, meticulously reviewing your footprints to catch potential issues before they go to production.
