In modern PCBA, many critical flaws are hidden from view. How can you be sure of the quality beneath a Ball Grid Array (BGA) or within a multi-layer board? The answer often lies in X-ray inspection.

But is it always necessary? As a pragmatic manufacturer, we know that every quality control step must be justified by value.

At Shenzhen KingshengPCBA, with over 15 years of experience delivering to clients in the USA, Australia, and Russia, we use a simple, risk-based approach to determine when X-Ray inspection is a wise investment.


When is X-Ray Inspection Non-Negotiable?

X-Ray allows us to see through components and substrates to inspect hidden connections. Here are the most common scenarios where we strongly recommend it.

For Components with Hidden Solder Joints:

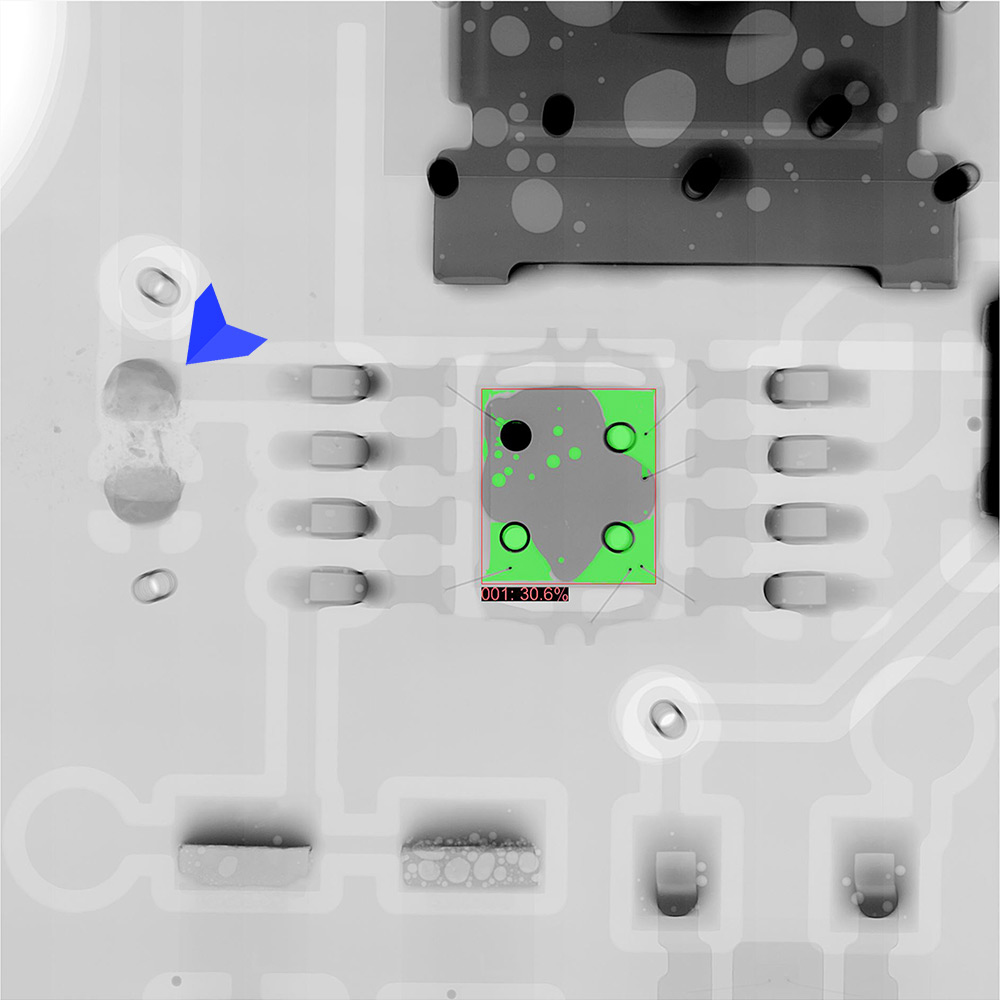

BGAs (Ball Grid Arrays), LGAs, and QFNs: These components have terminations underneath their body. X-Ray is the only way to check for solder bridging, voids, cold solder joints, or misalignment without destroying the part.
For Complex & High-Reliability Products:
Automotive, Medical, or Aerospace Boards: In these industries, failure is not an option. X-Ray provides a critical layer of verification for internal PCB integrity, such as barrel cracks in vias and layer alignment.
During Process Setup & First Article Inspection (FAI):
When starting a new production run, we use X-Ray to validate that our stencil design and reflow oven profile are producing perfect solder joints. This prevents a large batch of defects.
For Failure Analysis (FA):
When a board fails, X-Ray is an indispensable diagnostic tool to quickly pinpoint internal problems like cracked vias or defective wire bonds inside a component.

The Cost vs. Risk Balance: A Pragmatic View

We understand that adding a step like X-Ray inspection impacts cost and lead time. The decision ultimately comes down to a simple equation: Weighing the cost of inspection against the cost of failure.

The Cost of X-Ray Inspection: This includes the machine time, operator labor, and a slight increase in turnaround time.

The Cost of Skipping X-Ray:

Field Failure: A single faulty board that fails in the end product can lead to warranty claims, recalls, and irreparable damage to your brand's reputation.
Rework Cost: Finding a defective BGA after assembly requires expensive, time-consuming rework that often damages the board beyond repair.
Project Delays: Tracing a mysterious failure back to a hidden solder joint can take days of debugging, stalling your entire project.
The Verdict: For most prototypes and simple boards with through-hole components, visual inspection may be sufficient. However, for any board with BGAs, or for products where reliability is critical, X-Ray inspection is a low-cost insurance policy against potentially massive downstream losses.

Our Approach: Smart and Risk-Based

At Shenzhen KingshengPCBA, we don't apply a one-size-fits-all rule. Our experienced engineering team assesses your specific project:

We review your design for high-risk components.
We consider the end-use application and its reliability requirements.
We provide a professional recommendation on whether X-Ray inspection is crucial, optional, or unnecessary for your build.
We give you the information to make the smartest cost-benefit decision for your business.

Protect your product's quality from the inside out.
