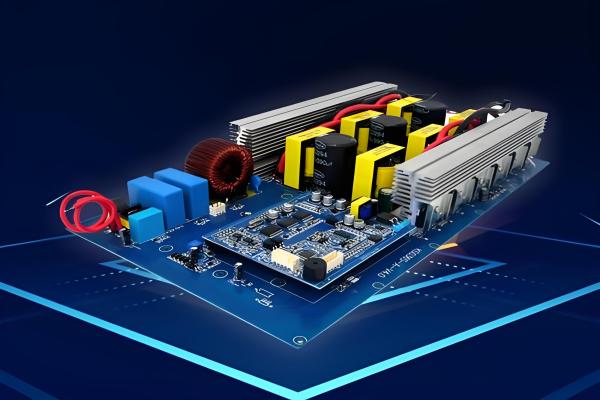

Power Supplies PCB Assembly

The production of printed circuit boards (PCBs) is a dynamic and evolving field. As technology advances, so do the demands placed on these intricate boards, which serve as the backbone of electronic devices, ranging from everyday appliances to high-performance servers.

Power Supplies in PCBs

A critical component of PCBs is the power supply, which consists of a power supply unit, a power cord, and a power connector. The power cord and connector deliver alternating current (AC) to the power supply, while the power supply converts and provides direct current (DC) to the PCB.

The PCB power supply unit serves as the gateway to an external power source, performing two essential functions: regulating the current and voltage entering the PCB and converting the incoming power into a usable form. Power can come in either direct current (DC) or alternating current (AC), each with its unique features and applications. AC-powered PCBs are commonly used in low-power devices like household appliances and office electronics, while DC-powered electronics are typically found in high-power applications such as military equipment, automotive systems, and industrial uses.

Classifications of PCB Power Supplies

The variety of electronic applications necessitates different types of PCB power supplies, tailored to specific needs. Broadly, PCB power supplies can be categorized into two main types:

1. Linear Power Supplies:
   Linear power supplies operate on the principle of converting AC into DC using a transformer. They are known for their simplicity and efficiency, making them suitable for applications where size and weight are not critical factors. However, their larger size and potential for heat dissipation can limit their use in compact, weight-sensitive devices. Industrial systems, which have ample space and prioritize reliability, are ideal candidates for linear power supplies.

2. Switched-Mode Power Supplies:
   Switched-mode power supplies use transistors to convert AC to DC, making them lighter and smaller than linear power supplies. This quality makes them suitable for devices such as cell phones and computers, where size and weight are crucial considerations.

In conclusion, the PCB power supply is a vital component of any electronic system, ensuring that devices operate reliably and efficiently. Selecting the right type of power supply and implementing best practices in design and protection are essential for creating high-performance electronic products. As technology continues to evolve and consumer demands grow, the need for innovative and high-quality PCB power supply solutions becomes increasingly important.

At KingshengPCBA, we specialize in offering comprehensive PCB manufacturing and assembly services tailored to meet the unique requirements of modern electronics. Our expertise includes developing custom PCB power supply solutions with precise design, robust protection mechanisms, and industry-leading reliability. Whether you are working on telecommunications, automotive systems, or consumer electronics, our team is ready to partner with you to bring your designs to life.
