Digital Camera Systems PCB/PCBA

Digital cameras are used much less than previously due to the widespread use of smartphones. However, the global demand for PCB camera assembly is increasing due to the trends of the Internet of Things (IoT), smart transportation, smart home, automatic industrial production, and intelligent surveillance for military and medical fields. Camera modules are also used in smartphones.

What is a PCB Camera?

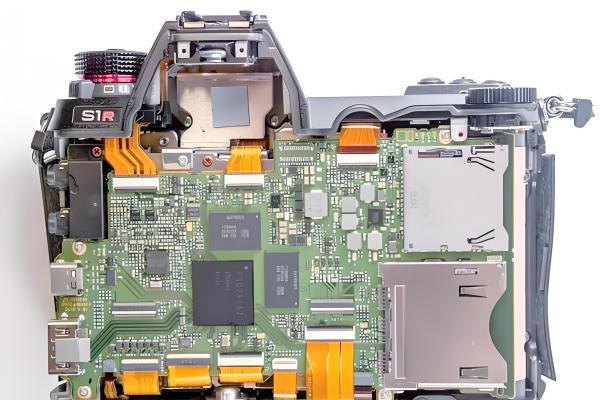

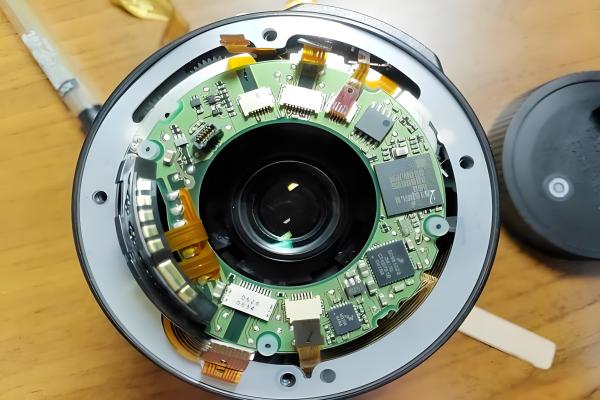

A PCB camera or a camera PCB is usually a small circuit board with a camera and other electronic components mounted on it. The PCB cameras, with their ability to assemble required parts such as optical devices and image sensors, Et cetera, provide the possibility to produce smaller devices. Hence, PCB cameras are quite favored and serve best in automobile, security & safety, and mobile phone industries.

A PCB camera is an electronic printed circuit board with a camera lens and other essential components mounted on it. A camera PCB provides an opportunity to connect different camera essentials like sensors and other circuitry in a limited place to produce smaller and more efficient cameras. A PCB camera has wide applications in mainstream industries--mobile phones, security cameras, space, inspection devices, and automobiles.

Printed Circuit Board cameras are automated cameras that have their stuff, including optical recording devices, lenses, and image sensors, mounted on the printed circuit board with input/output.

The recording of a PCB camera is transferred through the input/output of the printed circuit board via a monitor. When combined with a programmable logic regulator, PCB cameras can serve as a visual or vision framework. A camera PCB assembly includes several modules, including an image sensor board, an FPGA control board, an image processing board, and other modules according to the needs of the camera application.

The PCBs used for a camera can be FR4 PCBs of any Tg, flexible PCBs, and rigid-flex PCBs. High-frequency, ceramic, and metal-core PCBs are rarely used for a camera.

KingshengPCBA has been offering a one-stop solution for PCB manufacturing, assembling, and testing services for over 15 years. We at KingshengPCBA use the latest technology with every possible approach to carry out complex to high-level Interface Circuit Boards and offer a wide range of PCBs, including metal-core, LED, High-frequency, High-Speed, Waterproof PCBs, and PCB Cameras. The KingshengPCBA provides PCB cameras with every possible feature, desired camera lens, and customized silicon covers.
