Smart Lock PCBA with Fingerprint & Wi-Fi: A Billion-Dollar Opportunity

Introduction

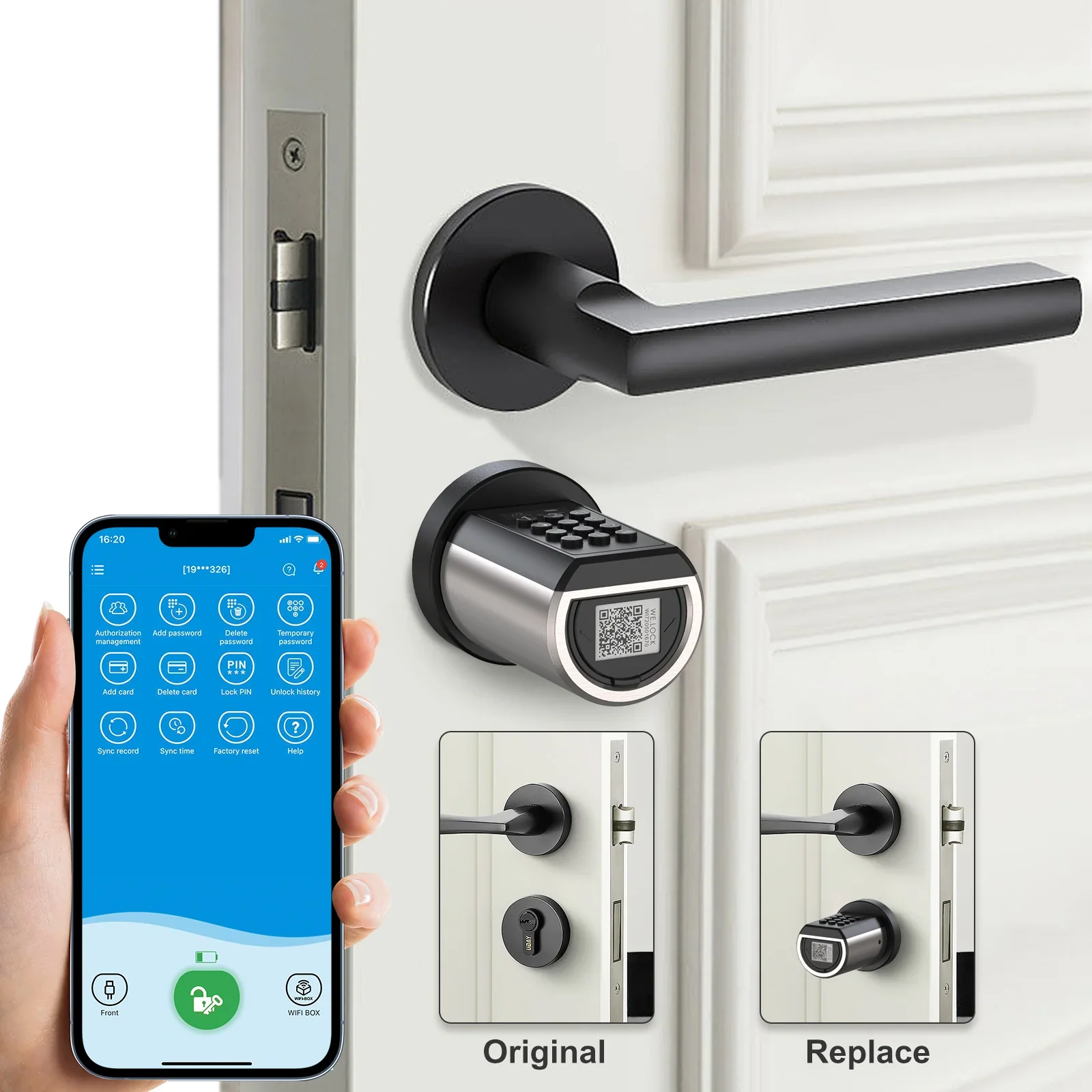

Smart homes are reshaping the way we live, and the first line of defence – the front door – is undergoing a radical transformation. Smart locks are rapidly replacing traditional mechanical locks, driven by soaring consumer demand for convenience and security. At the heart of every reliable smart lock lies a high-performance, robust PCBA – the true brain of the device.
As a professional manufacturer dedicated to smart lock PCBA solutions, we are proud to introduce our integrated fingerprint recognition + Wi-Fi control board PCBA. This article explores the market prospects, core technologies, product barriers, and our factory's manufacturing strength – showing how we help customers move from concept to mass production with confidence.


I.  Market Outlook: The Golden Era of Smart Locks
The smart lock industry is evolving from explosive growth to high-quality development. In 2025, China's total retail volume of smart locks reached 19.51 million units, generating RMB 21.2 billion in revenue. Although volume slightly adjusted, the average selling price increased, signalling a structural shift – price wars are over; innovation and quality now drive the market.
Facial recognition, video doorbells, and AI-powered multi-modal biometrics are becoming mainstream in premium products, yet fingerprint recognition remains the most mature and widely adopted biometric solution. Meanwhile, Wi-Fi connectivity, as the core of IoT ecosystems, is now a standard feature in smart locks. With rising penetration in new buildings, hotels, apartments, and retrofit markets, the demand for reliable, high-performance PCBA modules is stronger than ever.

II. Core Technology: Fingerprint + Low-Power Wi-Fi – Defining a New Benchmark
2.1 Fingerprint Recognition
Our PCBA is designed to work with leading capacitive fingerprint sensors, which use 3D finger ridge/valley capacitance mapping – offering superior accuracy, anti-spoofing capability, and resilience against wet or dirty fingers. Integrated with advanced fingerprint algorithms and live-finger detection, the solution achieves an extremely low false acceptance rate (FAR) and fully complies with industry security standards such as GA374 and GA701.
2.2 Low-Power Wi-Fi Connectivity
Smart locks are powered by batteries (typically 4–6 AA cells) and must last at least 6 months. Traditional Wi-Fi is power-hungry, but modern SoCs have greatly improved energy efficiency. Our PCBA employs a proven low-power MCU Wi-Fi/Bluetooth combo module that supports IEEE 802.11 protocols, built-in hardware encryption, and rich I/O interfaces. Careful antenna design and PCB layout ensure stable wall-penetrating communication even through steel security doors.
2.3 System Architecture & Security
The board uses a main SoC + fingerprint coprocessor architecture, achieving deep sleep currents in the microamp range. Communication links support AES128 encryption, and cloud management follows bank-grade security practices. The design is also future-ready, with reserved support for emerging protocols like Matter and Thread.

III. Overcoming Key Technical Barriers
3.1 Strict Security Standards
New national standards (e.g., GB 21556.2—2025) and cybersecurity certifications impose high compliance requirements. Our PCBA is designed from the ground up to meet physical, electronic, and biometric security criteria, saving customers costly redesigns and launch delays.
3.2 Balancing Low Power and High Performance
Wi-Fi can draw tens of mA in standby – unacceptable for battery-powered locks. We implement a time-scheduled Wi-Fi connection strategy: the module stays in deep sleep most of the time and only wakes for periodic communication or trigger events. Combined with ultra-low-power wake-up sensors, this approach keeps average consumption extremely low, achieving battery life comparable to BLE-only smart locks.
3.3 EMI and Thermal Management
The compact lock body houses both Wi-Fi radio and fingerprint sensor circuits, risking electromagnetic interference (EMI) and signal degradation. Our PCBA layout uses split grounding, zone partitioning, and optimised power traces to minimise EMI. We also conduct rigorous EMC/ESD and thermal cycling tests to guarantee reliable operation under real-world conditions.

IV.  Factory Strengths: Precision, High Yield, and Reliable Delivery
A great PCBA requires not only a smart design but also world-class manufacturing capabilities. Our factory is fully equipped to ensure consistent quality and fast, scalable delivery.
4.1 Automated SMT Lines
We operate 30 automated SMT production lines with high-end placement equipment from Siemens and Panasonic, plus fully automatic solder paste printers and reflow ovens. This enables high-precision mounting and flexible scheduling for both small and medium batches. Fastest prototype delivery in 3 days gives customers a competitive time-to-market advantage.
4.2 DIP & Post-Soldering
Smart lock PCBAs often require through-hole components such as connectors and capacitors. We maintain 8 auto-insertion lines and 8 wave soldering lines, integrated seamlessly with our SMT shop floor to avoid semi-finished inventory losses and quality degradation.
4.3 Comprehensive Testing & Quality Control
Quality is our core commitment. Our inspection equipment includes solder paste thickness gauges, SPI, AOI, and X-ray systems to keep SMT defect rates far below industry averages.
For smart lock PCBAs, we implement a multi-level test strategy:
ICT (In-circuit Test): Detects shorts, opens, missing/wrong components – coverage ≥98%.
FCT (Functional Test): Simulates real lock operation – fingerprint response, Wi-Fi communication, motor driver, battery management, etc.
Burn-in & Reliability Tests: Temperature cycling, humidity, vibration, and long-time powered burn-in to verify long-term stability.
4.4 DFM (Design for Manufacturing) Support
Our engineering team provides a DFM assessment before PCB fabrication, delivering a report within 48 hours. Customers enjoy a first-pass success rate >94% after implementing our recommendations, dramatically reducing board spins and production ramp-up time.
4.5 Certifications & One-Stop Service
We are certified to ISO9001 and ISO14001, with strict ESD controls throughout the production flow. From component sourcing, PCB fabrication, SMT assembly, DIP, testing, to conformal coating – we offer a genuine turnkey PCBA service, simplifying your supply chain and accelerating your project.


V. Conclusion: Partner with an Expert to Win the Billion-Dollar Smart Lock Market
The smart lock industry is shifting from price-based competition to technology differentiation. The fingerprint + Wi-Fi control board PCBA is the heart of any smart lock, directly impacting security, user experience, and supply chain stability.
When you choose our PCBA manufacturing solution, you get more than a highly integrated, high-performance board – you gain a full-spectrum partner. From design engineering and compliance guidance to mass production and quality traceability, we are here to support you. With our intelligent SMT lines, strict quality systems, fast turnaround, and deep understanding of security certification requirements, we have already delivered millions of smart lock PCBA modules to hundreds of satisfied customers.

Shenzhen Kingsheng Technology Co., Ltd. has rich experience and a professional technical team in PCBA. Contact Kingsheng PCBA today to request a quote or discuss your PCBA project.
