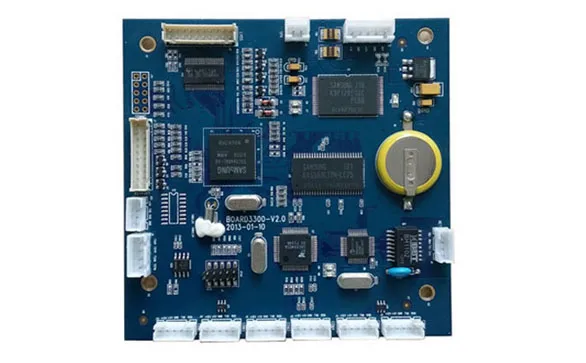

Medical Monitor 8-in-1 PCBA

Medical Monitor 8-in-1 PCBA: Market & Tech

The global patient monitoring market is growing fast due to aging populations, chronic diseases, and digital healthcare. The multi-parameter patient monitor segment alone reached USD 9.57 billion in 2025 and is expected to grow at 8.0% CAGR. At the core of every modern monitor is the 8-in-1 signal acquisition PCBA, which integrates ECG, SpO₂, heart rate, respiration, NIBP, temperature, pulse, and body movement onto a single board.
As a medical electronics EMS provider, we recognize both the opportunity and the manufacturing challenges. This article briefly covers market outlook, key technologies, entry barriers, and how our factory delivers high-reliability 8-in-1 PCBA solutions.


I. A Booming Market with Strong Policy Tailwinds

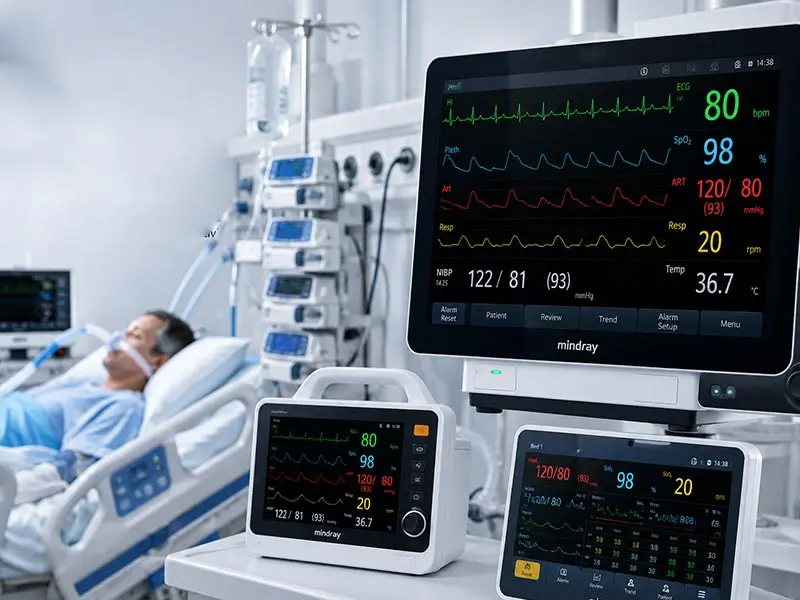

Multi-parameter patient monitors are indispensable in ICUs, emergency rooms, post-operative wards, and increasingly in primary care and remote patient monitoring. The global patient monitoring equipment market (including hardware, software, and services) is forecast to grow from USD 55.6 billion in 2026 to USD 122.1 billion by 2035, representing a CAGR of 9.1%.
In China—a major manufacturing and consumption hub—the "domestic substitution" policy and the tiered diagnosis and treatment system are creating exceptional demand. Effective January 1, 2026, the revised Medical Device Supervision and Administration Regulations require that "domestic" medical devices must have raw materials, components, and final assembly all sourced and certified within China. Meanwhile, the National Health Commission's "Ten Practical Matters" for 2026 includes adding 1,000 township hospitals with pediatric services, where child-friendly portable multi-parameter monitors become a necessity. These factors will generate an estimated 200,000 new monitor units in the grassroots market over the next three years.

II. Core Technologies Behind the 8-in-1 PCBA
High Integration & Synchronous Acquisition
Traditional monitors use separate boards for each parameter, leading to larger size, higher power consumption, and synchronization errors. Our 8-in-1 PCBA integrates eight sensing front-ends on a single board using ultra-low-power analog front-end (AFE) ICs. It supports simultaneous PPG and ECG sampling at up to 1 kHz with a dynamic range of 100 dB. Advanced digital signal processing (DSP) algorithms extract weak biosignals while rejecting noise, ensuring clinical accuracy.
Mixed-Signal Design Excellence
The coexistence of sensitive analog circuits (e.g., biopotential amplifiers, SpO₂ photodiode interfaces) and high-speed digital circuits (MCU, DSP, communication interfaces) poses a formidable design challenge. Our layout partitions analog and digital grounds with a single-point connection via a ferrite bead or zero-ohm resistor. Sensitive analog traces are shielded with ground planes, and power distribution is optimized to minimize crosstalk and supply noise.
Ultra-Low Power for Portable Use
Portable monitors rely on battery life. By using high-density interconnect (HDI) technology, system-in-package (SiP) concepts, and active power management (dynamic voltage/frequency scaling), we reduce total board power consumption without compromising signal fidelity. This enables continuous monitoring for >24 hours on a single charge.
EMI/EMC Compliance
Medical environments are electrically noisy. With a 4-layer or higher stack-up, we separate sensitive analog layers from high-speed digital layers, provide low-impedance return paths through internal ground planes, and integrate local shielding cans and filtering circuits. The design passes medical-grade electromagnetic compatibility standards such as YY 9706.102-2021.

III. Key Barriers to Entry in Medical PCBA Manufacturing
Bringing an 8-in-1 signal acquisition PCBA to market is not a typical electronics project. It must overcome several high-hurdle challenges:
ISO 13485 & IPC-A-610 Class 3
Medical PCBA manufacturing facilities must be ISO 13485 certified (quality management for medical devices). Moreover, the finished assemblies must meet IPC-A-610 Class 3—high-reliability electronics that operate under harsh conditions with no hidden failures. Every process, from solder paste inspection (SPI) to AOI, X-ray, and in-circuit/functional test, must be validated and documented.
Full Traceability & Component Authenticity
All components must come from original manufacturers or authorized distributors, with complete certificates and batch traceability. A MES (Manufacturing Execution System) tracks each PCBA's unique serial number, recording component lot codes, process parameters, and test results. If an issue arises, root cause analysis and targeted recall are possible within hours.
High-Density, High-Reliability Assembly
The 8-in-1 PCBA uses miniature packages (01005/0201 passives, fine-pitch BGAs down to 0.3 mm). Void control under BGAs, strict ESD protection, and precise reflow profiling are mandatory. Any minor process variation can degrade signal integrity or long-term reliability.

IV.  Our Factory Capabilities: Built for Medical Grade
We have invested in every aspect of manufacturing to address the above barriers and deliver 8-in-1 PCBA that our customers can confidently integrate into multi-parameter monitors.
Certifications & Quality Systems
ISO 13485:2016 certified for medical device manufacturing.
ISO 9001 for fundamental quality management.
Internal audit program following IPC-A-610 Class 3 as the acceptance criteria.
IQ/OQ/PQ validation for all critical processes (solder paste printing, reflow, cleaning, conformal coating).
Advanced SMT & Assembly Capabilities
High-speed placement machines supporting 01005/0201 chips and micro-BGAs.
3D SPI for solder paste volume and height inspection.
In-line 3D AOI and X-ray (2D/3D) for BGA void detection and hidden solder joint inspection.
HDI and multilayer (up to 12+ layers) board capabilities with blind/buried vias.
Conformal coating and potting for enhanced insulation and moisture resistance.
Full Traceability with MES
Every PCBA receives a unique barcode. Our MES records:
Incoming material lot numbers and certificates.
SMT process parameters (reflow profile, placement coordinates).
In-circuit test (ICT) and functional test (FCT) results.
Burn-in and aging test logs.
This provides end-to-end traceability required for medical device technical files.
Pre-compliance EMI scanning.
Turnkey Material Sourcing (Consignment or Full BOM)
We offer both consigned and turnkey (full BOM) services. Our supply chain team sources only from franchised distributors or original manufacturers, maintaining an approved vendor list (AVL) and enforcing strict change control (ECO). We eliminate counterfeit or substandard components—critical for medical safety.


V. Conclusion: Your Partner for High-Performance Medical PCBA
The 8-in-1 signal acquisition PCBA is the "heart" of any modern multi-parameter patient monitor. As demand surges globally—driven by aging populations, grassroots healthcare expansion, and domestic substitution policies—the need for a reliable, certified, and technically capable manufacturing partner has never been greater.
Our factory combines ISO 13485 certification, IPC Class 3 workmanship, precision SMT lines, full traceability, and turnkey material management to deliver medical PCBA that meets the strictest safety and performance standards. Whether you are a medical device OEM launching a new monitor or upgrading an existing design, we are ready to collaborate.

Shenzhen Kingsheng Technology Co., Ltd. has rich experience and a professional technical team in PCBA. Contact KingshengPCBA today to request a quote or discuss your PCBA project.
