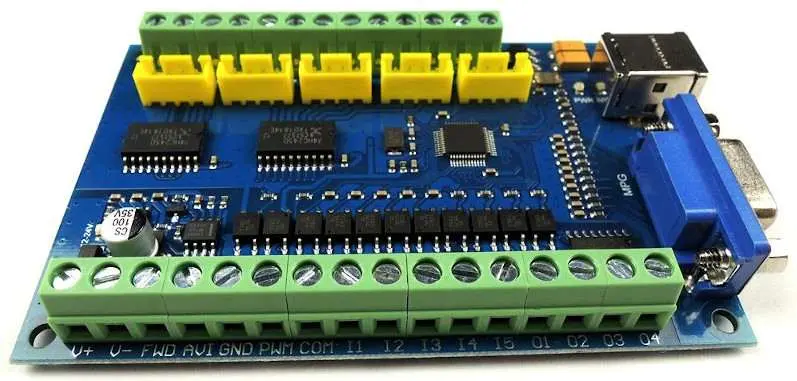

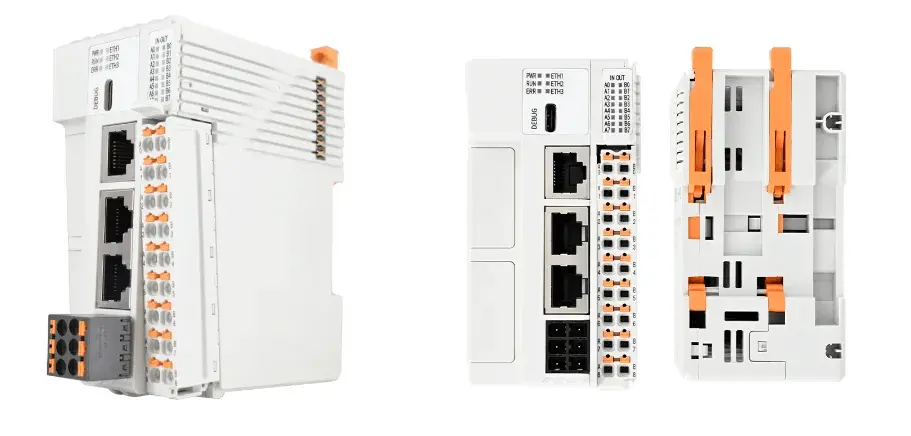

PLC PCBA

High-Reliability PLC PCBA: Seizing Domestic Replacement

Introduction
Programmable Logic Controllers (PLCs) are the brains of modern manufacturing. Their motherboard PCBA directly determines control accuracy, anti-interference capability, and overall line uptime. As the trend of domestic replacement accelerates in China's industrial automation sector, more PLC OEMs are turning to local PCBA partners with proven high-reliability capabilities. This article explains the market opportunity, core technologies, key manufacturing barriers, and how our factory delivers robust PLC motherboard PCBA solutions.


I. Market Outlook – A Dual Dividend of Growth and Localization
The global PLC market is expanding steadily. Industry data projects growth from approximately USD 12.18 billion in 2025 to USD 17.79 billion by 2032, at a CAGR of about 5.7%. China's market is even more dynamic – expected to exceed RMB 32 billion (approx. USD 4.4 billion) in 2026 with an annual growth rate above 9%, driven by large-scale projects in the 15th Five-Year Plan period and continued investment in industrial automation.
More importantly, domestic substitution is reshaping the landscape. By 2025, Chinese PLC brands have captured over 45% of the small-to-medium PLC market and more than 38% of the small PLC segment, with players like Inovance, Xinje, and Liancheng gaining ground in OEM machinery. Government policies further support this shift: the Ministry of Industry and Information Technology has set a target of raising the localization rate of key industrial control equipment to 40% by 2027.
For PCBA factories, this means a surging demand from local PLC manufacturers for high-quality, reliable motherboard assemblies. Those who master industrial-grade PCBA manufacturing will lead the charge.

II. Core Technology – Designing for Extreme Industrial Conditions
Unlike consumer electronics, PLC motherboards operate in harsh environments – high temperature, vibration, dust, and strong electromagnetic interference. Our approach is built on four technical pillars.
1. Substrate & Component Selection
We use high-Tg FR-4 materials (Tg ≥170°C) to maintain rigidity across -40°C to +85°C. All critical components (MCU, power management ICs, passives) are industrial or automotive grade, rated for -40°C to +125°C, with strict temperature drift verification.
2. PCB Layout – Functional Zoning
The board is divided into power, digital, analog, and I/O interface zones. The power zone (DC-DC modules, relays) is kept away from sensitive circuits. Analog sections receive separate power and a dedicated ground plane. I/O interfaces are fitted with shielding and filtering. High-frequency clock traces use 45° or arc routing to minimize signal reflection.
3. Grounding & EMC Design
Low-frequency circuits use single-point grounding to avoid ground loops; high-frequency circuits use multi-point grounding to reduce impedance. Analog and digital grounds are routed separately and connected only at the power entry point. For EMC protection, a global bulk capacitor is placed at the power input, and each IC is bypassed with a 0.1 µF ceramic capacitor.
4. Thermal Management
The "10°C rule" is critical – every 10°C rise halves component life. We run thermal simulations to optimize thermal vias, enlarge copper pour under power devices, and add exposed copper pads with thermal pads to keep junction temperatures within safe limits.

III. Key Manufacturing Barriers – What Makes PLC PCBA Different
1. Long Lifecycle (5–10 years continuous operation)
Industrial equipment often runs non-stop for 7–8 years. Capacitor lifespan, MOSFET switching cycles, and connector durability must all be designed for a decade of service.
2. Wide Temperature & Voltage Extremes
From -20°C cold storage to 40°C control cabinets, and from dusty cement plants to high-humidity workshops. Only industrial-grade components (-40°C to 105°C+) survive.
3. Strong EMI Environments
Motor starts/stops create intense electromagnetic noise. The PLC motherboard must maintain analog measurement error ≤±0.5% (4-20 mA loops) and communication delay ≤100 ms (RS485/Profinet) even under 10 kHz–1 MHz interference.
4. High-density Mixed Assembly
Placing 0201 passives, 0.4 mm pitch BGAs, and through-hole power devices on the same board requires placement accuracy of ±0.03 mm and strict zoning.
5.Long-term Component Supply
Consumer electronics chase the newest chips, but PLCs need "long-life" bill-of-materials (BOM) with stable supply for 5-8 years. We maintain authorized sourcing and alternative part plans to avoid end-of-life risks.


IV. Our Factory Capabilities – Delivering High-Reliability PCBA
1. Design for Manufacturing (DFM) at the Front End
We review Gerber and BOM files before production, checking component spacing, BGA pad-to-stencil matching, heat dissipation paths, and impedance control. Early DFM eliminates >80% of potential manufacturing defects.
2. Strict Component Sourcing
All parts come from original or authorized channels. Incoming inspection includes visual check, electrical test, and X-ray where needed – no counterfeit or substandard components. Dual-source backup ensures continuity.
3. High-Precision Assembly
Our SMT lines achieve placement accuracy of ±0.03 mm. Mixed-technology boards use selective wave soldering to prevent thermal shock to already-placed SMT parts. ESD protection (Class 10,000 or better) is enforced throughout.
4. Multi-Stage Testing
We implement a layered verification process: AOI → X-ray (for BGA/under-component voids) → ICT → FCT → environmental reliability tests → 72+ hour burn-in under load. Batch yield for industrial PLC boards consistently exceeds 98%, with key process variation controlled within ±5%.
5. Full Traceability & Quality System
ISO 9001 certified. Every board is serialized, and all material lots, process parameters, and test results are recorded for full lifecycle traceability.

V. Conclusion – Partner for the Localization Era
The 15th Five-Year Plan period (2026-2030) has begun, and large industrial projects are accelerating. Demand for servos and medium-to-large PLCs is rising, and the automation industry's growth is expected to continue through 2027. Choosing the right PCBA partner – one that truly understands industrial reliability – will directly impact your product's competitiveness in this critical window.
We are ready to support your PLC motherboard PCBA projects, from design optimization to volume production, with proven high-reliability processes. Contact us for technical data sheets or a customized manufacturing proposal.
