65W Fast Charging PCBA – Powering Ultra-Fast Charging

Introduction: Fast Charging Is No Longer a Luxury
With nearly 7 billion smartphone users worldwide, "battery anxiety" has become a universal pain point. As GaN (gallium nitride) technology matures, fast charging is undergoing unprecedented growth. Among all power levels, 65W has emerged as the market driver. By 2024, 65W GaN chargers had already captured the largest revenue share in the GaN charger market. This power level is expected to remain the dominant segment through 2035. Why? Because 65W strikes the perfect balance between output power, physical size, and thermal performance. It not only delivers extreme charging speeds for high-end smartphones but also supports tablets, ultrabooks, and even some lightweight laptops.
As a high-tech PCBA manufacturer, we understand the key technical challenges and mass-production realities of 65W fast charging control boards. In this article, we will explore market prospects, core technologies, critical barriers, and how our factory's capabilities enable reliable, cost-effective PCBA solutions.


I. Core Technology: From Design to PCBA Reality
A high-quality 65W fast charging control board must deliver multi-protocol identification, high efficiency, and robust protection in a tiny footprint.
1. Protocol Chip – The Brain of the System
The protocol chip detects the connected device and negotiates optimal voltage/current. Modern chips are highly integrated:
Hynetek HUSB382D – Dual-port controller supporting 65W per port, built-in N-MOSFET driver and zero-external-component design.
Fuman FM83X series – Integrates VBUS switches, CV/CC loops, and optocoupler drivers for 20–65W multi-port adapters.
Nations NP series – 32-bit ARM Cortex-M4 core, supports PD3.1/QC2.0/QC3.0/UFCS, with built-in CC/CV control and protections.
We select the optimal chip based on cost and feature requirements. The trend toward "zero-external" chips (e.g., HUSB382D) significantly reduces BOM cost and PCB area.

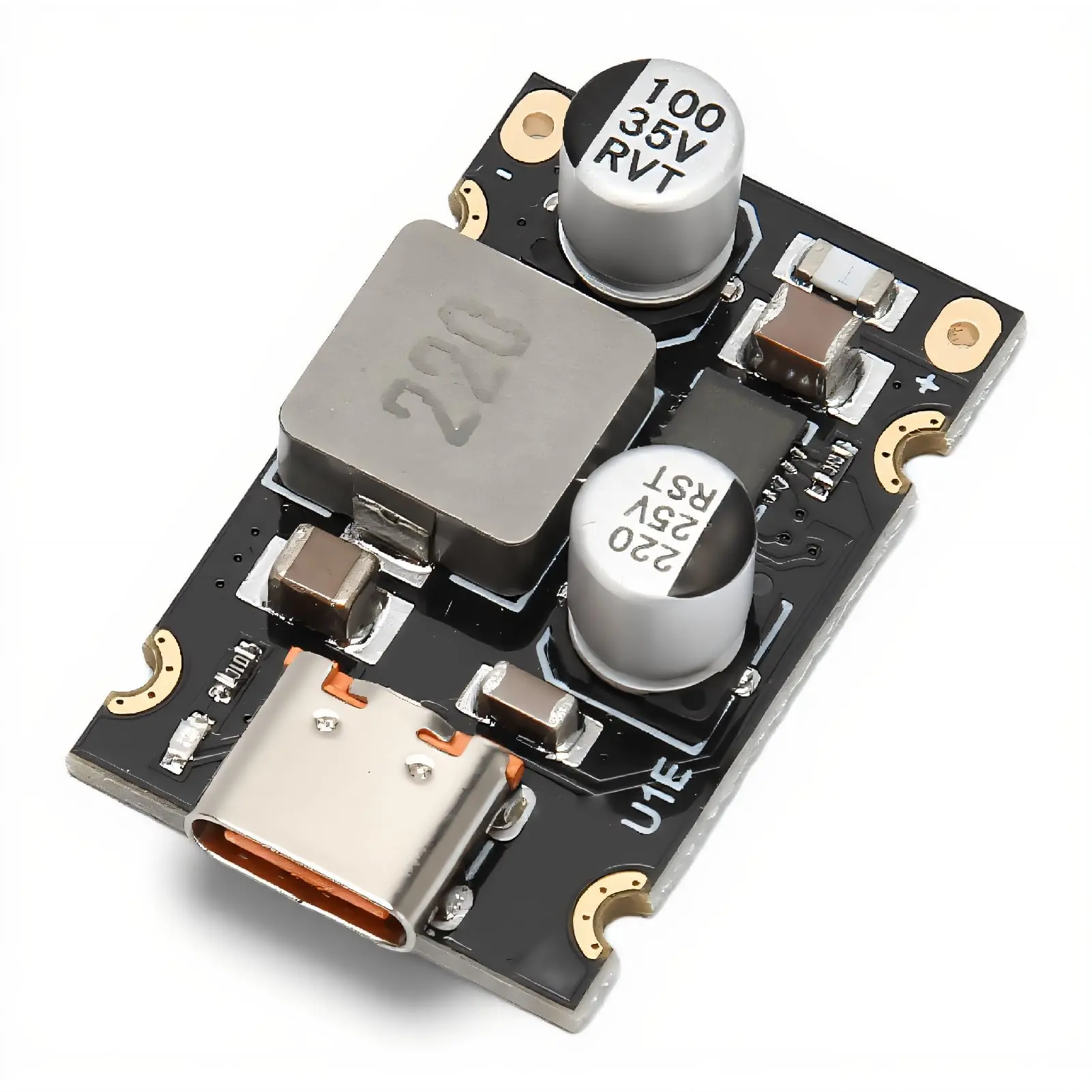

2. PCB Design – Balancing Miniaturization and Power Density
A 65W PCBA must fit in a 50mm × 30mm space while delivering full power. Our approach:
6-layer HDI process – 0.1mm laser vias and 0.15mm buried vias increase layout density by 80% over 4-layer boards, accommodating 01005 passives and QFN packages.
GaN thermal management – Thermal via arrays (0.3mm diameter, 1mm pitch) under the GaN chip, plated with 30μm copper, plus an aluminum heatsink on the back. This reduces chip temperature from 110°C to below 85°C at full 65W load.
Cost-optimized substrate – High-Tg FR-4 for non-critical areas, with localized Rogers RO4350B only for GaN high-frequency traces, achieving ≥94% conversion efficiency at 65W.

II. Breaking Through the Barriers
Developing a 65W fast charging control board is not a simple assembly job. Key barriers include:
Barrier 1: Thermal management vs. power density
Without proper thermal design, the charger may throttle. Our solution – thermal via arrays, optimal component placement, and low-thermal-resistance solder mask – ensures stable full-power operation.
Barrier 2: Protocol compatibility
Over a dozen protocols exist (PD3.1/3.2, QC4.0+, UFCS, AFC, FCP, SCP, Apple 2.4A, etc.). We rigorously verify compatibility to prevent fallback to 5W output.
Barrier 3: EMI suppression
High-frequency switching (1 MHz+) can cause EMI. We place common-mode chokes and X/Y capacitors near the AC input, and keep output filter capacitors close to Type-C VBUS pins, limiting output ripple to <20mV.
Barrier 4: ESD protection
Type-C ports are exposed to electrostatic discharge. We add TVS diodes and design for ±5kV HBM ESD on critical I/O pins.


III.  Factory Capabilities – From Drawing to Mass Production
We provide a full PCBA lifecycle service: design review, component sourcing, SMT assembly, functional testing, and final delivery.
1. High-Precision SMT Lines
Our fully automated SMT lines support 0201 components and 0.3mm-pitch BGA with ±0.03mm placement accuracy. QFN packages and high-power GaN devices are soldered with tight process control.
2. End-to-End Quality System
IQC – Only authorized original components.
IPQC – 3D SPI 100% inspection, visual alignment on pick-and-place, custom reflow profiles.
AOI & X-Ray – 20+ defect types identified; void rate <5% for hidden solder joints.
FCT – 100% functional test (voltage, current, protocol response, protections).
Burn-in & temperature cycling – Eliminate early failures.
3. Turnkey Component Sourcing & Assembly
We handle everything from component procurement (original or authorized channels) to SMT, DIP, conformal coating, and final assembly. Single-point responsibility shortens lead times and reduces costs.
4. NPI and Rapid Prototyping
Our DFM (Design for Manufacturing) review identifies layout and component issues before production. Prototype PCBA can be delivered in 24–72 hours; rush orders in 48 hours.

Conclusion: Accelerate Your 65W Fast Charging Project
The 65W fast charging control board market is booming – global fast charging revenue is set to triple in five years, and 65W is the sweet spot for OEMs and wholesalers alike. A single small PCBA unlocks a multi-billion dollar opportunity.
We go beyond simple "board assembly." We are your R&D partner and volume production engine. From design optimization, component selection, precision SMT, to full functional testing – we offer a one-stop PCBA solution for 65W fast charging protocol control boards.
Whether you need prototype samples or high-volume turnkey production, our advanced equipment, rigorous quality system, and experienced engineering team are ready to help you capture the fast-charging market.
