9-Axis Flight Control PCBA: The Key to Drone Stability

The rapid rise of low-altitude economy has turned drones into indispensable tools across agriculture, inspection, logistics, and aerial photography. At the center of every reliable UAV lies the flight control system – and its heart is the attitude calculation main control board. Today, 9-axis inertial measurement units (IMUs) are setting a new benchmark, moving far beyond traditional 6-axis solutions. For PCBA manufacturers, mastering the production of high-precision 9-axis flight control boards is not just an opportunity – it is a necessity.


I. Core Technologies Behind a Superior Flight Control PCBA
A high-end 9-axis flight control board integrates four key pillars: sensor selection, fusion algorithms, PCB design, and advanced manufacturing.
1. Sensor Selection – The Right Components Make the Difference
The IMU set determines performance limits. For high-vibration industrial drones, Bosch BMI088 is a benchmark – ±2000°/s gyro range with 0.004°/√Hz noise density, excelling under strong vibration. Newer solutions like ICM42688 offer ultra-low power and up to 32 kHz gyro output with built-in self-test. For magnetometers, AKM's AK09918 and Bosch's BMM150 are proven choices, often paired with a high-precision barometer (e.g., BMP388) for altitude fusion. The main MCU (typically STM32F4/F7/H7 series) runs complex attitude algorithms and handles peripheral communication.
2. Sensor Fusion Algorithms – EKF vs. Complementary Filter
Raw sensor data contains noise and bias. The fusion algorithm is the true "soul" of the board. Extended Kalman Filter (EKF) is widely adopted – it probabilistically fuses gyro, accelerometer, magnetometer, barometer, and even GPS data to output quaternions or Euler angles with optimal drift suppression. PX4's EKF2 maintains a 24-state covariance matrix for robust performance. For cost-sensitive or resource-constrained systems, Mahony complementary filter provides lightweight yet accurate attitude tracking. Both run at hundreds of hertz to correct gyro integration drift, ensuring stable hovering.

II. PCB Design – Signal Integrity is the Silent Enforcer
The precision of 9-axis attitude calculation critically depends on PCB layout. Mixed analog/digital signals, high-frequency PWM traces, and power planes must be carefully isolated. A robust design includes:
Split analog and digital ground planes
Metal shielding cans over all IMU sensors
Controlled I²C/SPI routing
6-layer or higher HDI stack-up with dedicated power and ground layers
Impedance control (100Ω differential, 50Ω single-ended) within 20% dielectric thickness tolerance. Any signal disturbance can be magnified by the algorithm, leading to control oscillations.

III. Manufacturing Excellence – Where Precision Meets Production

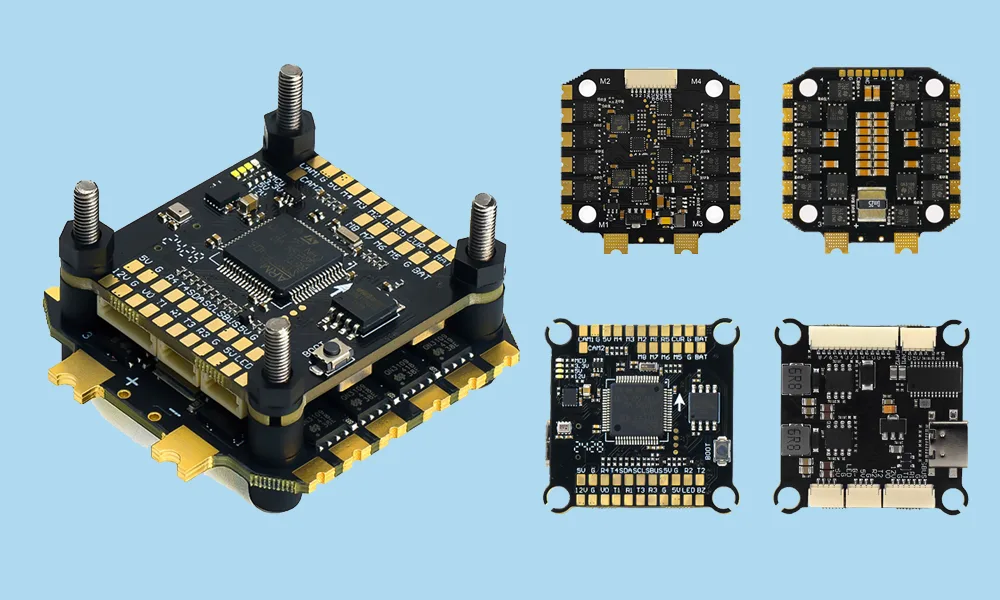

Flight control boards use 0201 or even 01005 passives and BGA-packaged MCUs. Traditional SMT lines often struggle with tombstoning, misalignment, and soldering defects, yielding below 80%. Our factory overcomes these challenges with:
High-speed placement machines supporting 01005 (0.4×0.2mm) components, with placement accuracy of ±25μm (industry average is ±50μm)
3D SPI solder paste inspection, AOI, and X-ray inspection for BGA voids
Nitrogen reflow soldering, reducing defect rates to <50 ppm and post-board test failure rate below 0.1%
Throughput first-pass yield exceeding 99% for 9-axis flight control PCBA

V. Breaking the Barriers: From Lab Prototype to Mass Production
Moving a few hand-built flight control boards to thousands of reliable units requires overcoming four major hurdles – and that is where our PCBA factory delivers real value.
Barrier 1: Ultra-Fine SMT Reliability
Many assemblers cannot achieve acceptable yield with 01005 components and 0.4mm-pitch BGAs. Our ±25μm placement accuracy and nitrogen reflow ensure consistent, void-free joints. We also support underfill for BGAs to enhance vibration resistance.
Barrier 2: Half-Hole (Castellated) and HDI Processes
Modular flight control designs often require half-hole (castellated) edges for daughterboard interconnection. Many PCB houses lack reliable half-hole routing and HDI capabilities. Our factory has mature processes for laser micro-vias, 1st- and 2nd-order HDI, and precision half-hole forming, supporting 4- to 12-layer boards with controlled impedance. Every batch is monitored with SPC data to ensure CPK > 1.33.
Barrier 3: BGA & Complex Assembly
Flight control boards integrate BGAs (0.5mm pitch or finer), shield cans, GPS module bases, and pin headers. We offer X-ray inspection, BGA rework stations, and underfill application to improve mechanical reliability under vibration. Our shop floor follows lead-free, RoHS-compliant processes and holds ISO9001 and ISO14001 certifications.
Barrier 4: One-Stop Service – Shortening Time-to-Market
Managing separate vendors for PCB fabrication, component sourcing, SMT assembly, and testing creates massive communication overhead and delays. We provide vertical one-stop intelligent manufacturing – from PCB layout, prototyping, BOM kitting, precision SMT, DIP through-hole, to system assembly and aging testing. With our DFM (Design for Manufacturability) review, NPI team identifies potential issues before production. MES tracks every step with full traceability. This reduces prototype-to-mass-production time by 30%, slashes procurement costs, and secures faster market entry.


VI. Conclusion: Precision Creates Stability
The 9-axis attitude calculation board is the sensory core of modern drones – and a cornerstone of the low-altitude economy. A well-designed, reliably manufactured PCBA ensures minimal noise, low drift, and exceptional attitude accuracy under real-world vibrations.
Our factory combines high-precision SMT, advanced HDI capabilities, rigorous quality systems, and a true one-stop service model. Whether you need rugged industrial flight control boards for agricultural drones or lightweight 9-axis boards for FPV racers, we deliver design support, prototyping, and flexible mass production with consistent quality.
