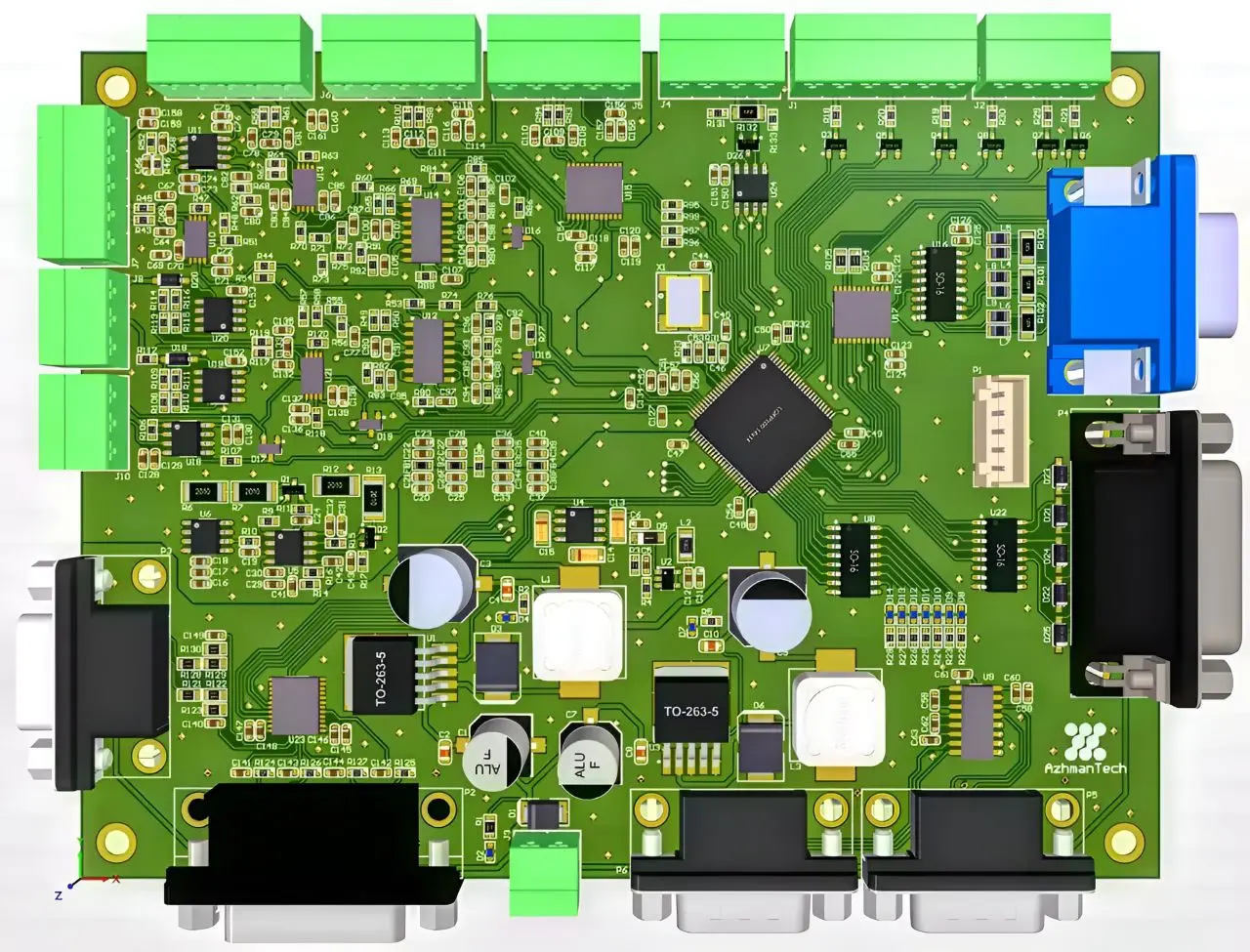

4-axis Industrial CNC Controller PCBA

4-Axis Industrial CNC Controller Board: The Smart Core Behind Modern Precision Machining

In today’s advanced manufacturing environment, precision, automation, and operational stability are no longer optional—they are essential. Whether in metal machining, woodworking, engraving, mold manufacturing, or automated production lines, CNC systems demand a highly reliable control center capable of executing synchronized multi-axis movement with absolute accuracy.
This is where the 4-axis industrial CNC controller board becomes the heart of the machine.
Designed to manage simultaneous motion across X, Y, Z, and A rotational axes, this controller PCB delivers superior machining flexibility, reduced manual intervention, and significantly improved production consistency. Compared with traditional 3-axis solutions, a 4-axis CNC controller enables manufacturers to process more complex geometries, cylindrical parts, angled surfaces, and continuous rotary operations in a single setup.

What Is a 4-Axis Industrial CNC Controller Board?
A 4-axis industrial CNC controller board is an integrated motion control PCB that interprets G-code instructions and converts them into precise electrical pulse signals to drive stepper motors or servo motors on four coordinated axes.
Unlike entry-level hobby CNC boards, industrial-grade CNC controller boards are engineered for:

• continuous 24/7 machine operation,
• anti-interference industrial environments,
• high-speed pulse output,
• advanced I/O expansion,
• spindle automation,
• safety monitoring,
• and closed-loop precision control.

The board acts as the communication bridge between the control software, motor drivers, spindle system, sensors, emergency stop modules, and machine actuators.
Modern industrial CNC boards typically support:

• USB / Ethernet communication
• Mach3 / Mach4 / LinuxCNC / GRBL compatibility
• external stepper or servo driver interfaces
• limit switch and probe inputs
• spindle PWM or relay control
• emergency stop protection
• handwheel MPG control
• coolant and tool-setting automation

High-end industrial controllers even operate on standard 24V industrial power architecture with opto-isolated inputs and hardware-level E-stop response for safer deployment in factory conditions.

Why Manufacturers Are Upgrading to 4-Axis CNC Motion Control
As industrial machining becomes more complex, manufacturers are shifting away from conventional 3-axis platforms because they limit production flexibility and require repeated repositioning. A 4-axis industrial CNC controller board solves these bottlenecks by introducing a synchronized rotary axis (A-axis), allowing:
1. Multi-Surface Machining in One Setup
The workpiece can rotate automatically, enabling side drilling, angular milling, cylindrical engraving, and contour cutting without manual repositioning.
2. Improved Precision Consistency
Fewer manual interventions mean fewer alignment errors, tighter tolerances, and more repeatable finished parts.
3. Faster Production Throughput
Complex parts can be completed in fewer machining cycles, dramatically reducing labor and setup time.
4. Better Automation Integration
Industrial CNC control boards can connect with automatic probing systems, spindle inverters, tool setters, and relay modules for semi-automatic or fully automatic operation.
5. Future Expansion Possibility
Many 4-axis boards are designed with expandable I/O and firmware support, allowing upgrades to 5-axis systems or custom automation functions later.
This is why modern CNC cabinet builders and machine integrators increasingly prioritize industrial-grade signal isolation, Ethernet communication, EMI resistance, and clean control architecture when selecting controller PCBs.

Core Features of a High-Quality 4-Axis Industrial CNC Controller Board
When industrial buyers source CNC control PCBs, not all controller boards offer the same stability or long-term reliability.
A professional industrial CNC motion control board should include the following:
High-Speed 4-Axis Pulse Output
Ensures smooth interpolation and accurate step generation for synchronized motor movement.
Industrial Opto-Isolated I/O Design
Prevents signal distortion caused by electrical noise, spindle inverter interference, and unstable factory power supply.
Wide Voltage Compatibility
Typically supports 12V / 24V industrial control systems for easy machine cabinet integration.
External Driver Compatibility
Can connect with:

• stepper motor drivers,
• closed-loop stepper systems,
• AC servo drives,
• hybrid servo modules.

Multi-Function Digital Inputs & Outputs
For:

• limit sensors,
• home sensors,
• emergency stop,
• coolant,
• spindle relay,
• tool touch probe,
• alarm output.

Stable Communication Protocols
USB is common for basic systems, while Ethernet is preferred in industrial installations because transformer isolation provides stronger anti-noise capability and more reliable long-distance communication.
Firmware and Software Flexibility
Compatible with:

• Mach3/Mach4
• LinuxCNC
• GRBL / GRBLHAL
• customized industrial HMI systems

Typical Applications of 4-Axis CNC Controller Boards
A robust 4-axis industrial CNC PCB is widely used in:
CNC Wood Router Machines
Furniture carving, rotary sculpture, column engraving.
Metal Milling Equipment
Aluminum parts, brass components, light steel precision machining.
Stone Engraving Machines
Rotary relief engraving and cylindrical carving.
Mold Processing Equipment
3D contour milling with indexed rotational machining.
Advertising & Sign Making Machines
Foam cutting, acrylic shaping, cylindrical logo engraving.
Automated Drilling and Tapping Systems
Multi-position indexing production.
Customized Industrial Motion Platforms
OEM machine manufacturers integrating intelligent motion control.

How to Choose the Right 4-Axis Industrial CNC Controller Board
Industrial buyers should evaluate more than just price.
A reliable CNC controller board must be selected based on:
Motion Accuracy Requirement
Pulse frequency, interpolation smoothness, and encoder compatibility.
Machine Electrical Environment
Industrial anti-noise protection is critical in high-voltage spindle/VFD environments.
Driver and Motor Type
Stepper? Closed-loop stepper? Servo?
The board must match the signal standard.
Control Software Ecosystem
Some clients require Mach3 compatibility, while OEM builders may prefer GRBLHAL or LinuxCNC open architecture.
Expansion Need
Additional relays, ATC, probing, handwheel, Ethernet remote diagnosis.
PCB Manufacturing Quality
As a PCBA buyer, customers increasingly care about:

• multilayer board reliability,
• stable SMT assembly,
• industrial-grade IC sourcing,
• burn-in testing,
• conformal coating options.

Because controller board failure does not just mean PCB replacement—it means machine downtime, production loss, and customer complaints.

Why Industrial Equipment Manufacturers Need a Reliable PCBA Partner
A 4-axis CNC controller board is not simply an electronic PCB—it is the decision-making center of the entire machine.
Its performance depends heavily on:

• PCB layout optimization,
• signal integrity design,
• EMI/EMC suppression,
• industrial connector durability,
• precision SMT assembly,
• firmware loading and functional testing.

As a professional PCBA manufacturer, we provide one-stop OEM/ODM production for industrial CNC control boards, including:

• multilayer PCB fabrication,
• SMT & DIP assembly,
• industrial component sourcing,
• firmware programming,
• functional testing,
• burn-in aging test,
• customized enclosure integration.

From prototype development to mass production, we help global CNC equipment manufacturers build stable, scalable, and market-competitive control solutions.
