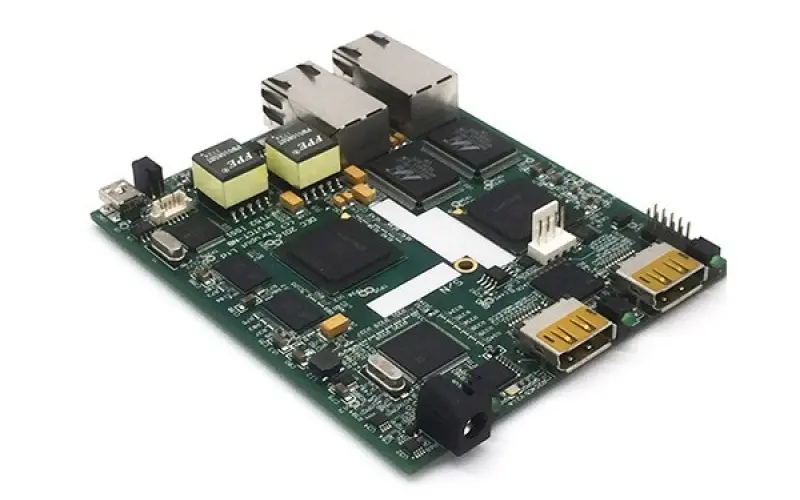

Weeding Robot PCBA

Key Manufacturing Challenges and Solutions for Weeding Robot PCBA

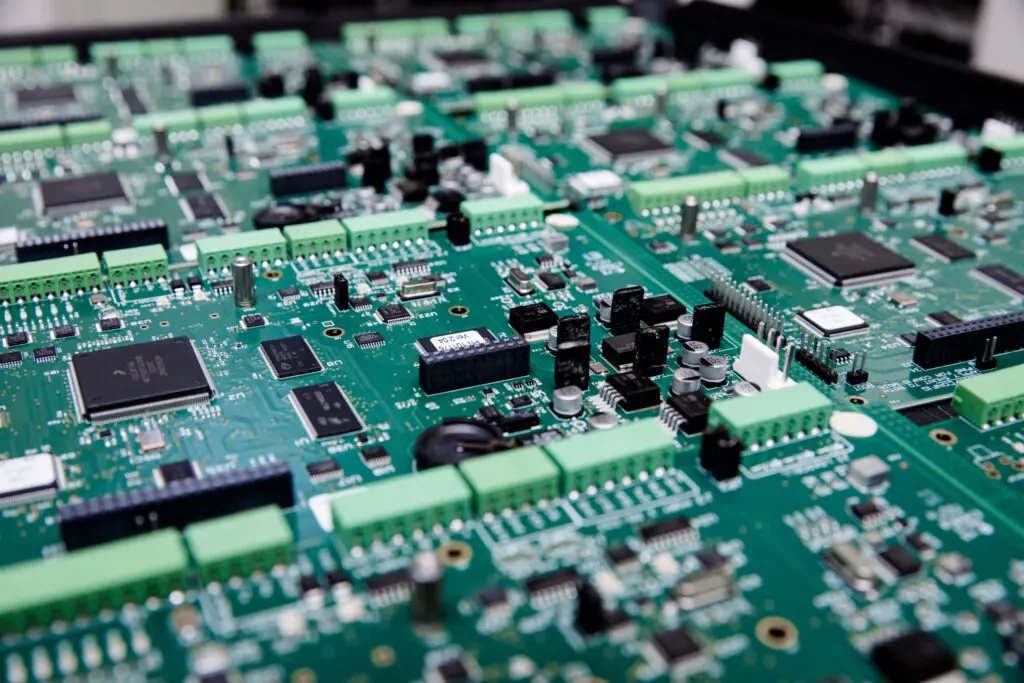

With the growing popularity of smart gardening equipment, weeding robots are emerging as a significant growth segment in the outdoor robotics market. As the core control unit, the quality of the PCBA (Printed Circuit Board Assembly) directly determines the reliability and service life of the entire machine. However, the harsh operating environment of weeding robots imposes demands on the PCBA that far exceed those of consumer electronics. This article combines practical experience from PCBA manufacturing facilities to provide an in-depth analysis of the manufacturing challenges and systematic solutions for weeding robots PCBAs.


I. Environmental Adaptability: Waterproofing, Dustproofing, and Wide Operating Temperature

Challenge:
Weeding robots are exposed to outdoor conditions for extended periods, facing rain, dew, mud, and sand/dust ingress. The operating temperature range typically needs to cover -20°C to 65°C. Traditional conformal coatings are prone to micro-cracks under vibration and alternating thermal cycles, allowing moisture ingress that can lead to ionic migration or short circuits.

Solutions:
1.Selective Conformal Coating: Utilize a dual-cure coating system combining UV and moisture curing. Apply precision spraying to fine-pitch components such as BGAs and QFNs, with coating extension to the connector housings to form a continuous protective layer.
2.Potting of Critical Areas: Encapsulate power modules and wireless communication modules using soft polyurethane potting compound. This not only isolates moisture but also buffers against mechanical shocks.
3.Board-Level Protective Design: During the layout phase, route sensitive signal lines on inner layers and add teardrop pads at critical nodes to reduce corrosion risk. Select connectors with IP67 or higher sealing ratings.

II. Mechanical Reliability: Vibration and Shock Management

Challenge:
Weeding robots move at high speeds across uneven terrains like lawns and gravel paths. The high-frequency vibration generated by the rotating blade transmits through the chassis to the PCBA, which can easily lead to ceramic capacitor cracking, crystal oscillator stoppage, and solder joint fatigue fractures.

Solutions:
1.Component Derating and Selection: Prioritize MLCCs (Multilayer Ceramic Capacitors) made with X7R or X8R materials; avoid using X5R with high dielectric constants in power filtering applications. Apply adhesive reinforcement to crystal oscillators and large inductors. Using underfill can increase impact resistance by more than tenfold.
2.Structural Fixation Optimization: Design multi-point support between the PCBA and the housing to avoid large unsupported spans. Implement a split-board design for the battery, motor drive board, and main control board, connecting them via flexible FPCs (Flexible Printed Circuits) to interrupt vibration transmission paths.
3.Solder Joint Process Control: For power devices, employ extended solder pads or pin-in-paste (through-hole reflow) technology to create a mechanically locked structure similar to riveting, significantly enhancing shear strength.

III. Manufacturability and Testing Strategy Challenge:
Weeding robots PCBAs typically integrate various sensors (ultrasonic, gyroscope, Hall effect, etc.) and feature components with greater height, imposing stringent requirements on placement accuracy and reflow soldering temperature profiles. The outdoor application demands zero-defect quality, as the failure of a single function can cause the entire machine to go "out of control."

Solutions:
1.DFM (Design for Manufacturing) Optimization: Avoid placing large-mass components on both sides of the PCB simultaneously. Reserve adequate spacing around BGA devices to facilitate rework. Design test points on a single side to ensure consistent contact with ICT (In-Circuit Test) fixtures.
2.Comprehensive Test Coverage:

• In-Circuit Test (ICT): 100% coverage for power, open circuits, short circuits, and basic component values.
• Functional Test (FCT): Build test fixtures that simulate actual operating conditions, mimicking motor loads, GPS signals, and sensor responses to ensure each PCBA meets dynamic parameter specifications.
• Aging and Environmental Testing: Conduct sample-based vibration table sweep tests and damp heat cyclic tests to verify process consistency and long-term reliability.

Conclusion
The manufacturing of weeding robots PCBAs is not simply about soldering components onto a board; it is a systematic engineering endeavor. From environmental protection and mechanical reliability planning during the design phase to process selection and testing coverage during manufacturing, every step must be closely aligned with the actual application scenario. For PCB assembly factories, establishing dedicated process specifications for outdoor robotics and collaborating deeply with customers during the DFM phase are key to ensuring the long-term stable operation of products under harsh conditions.
