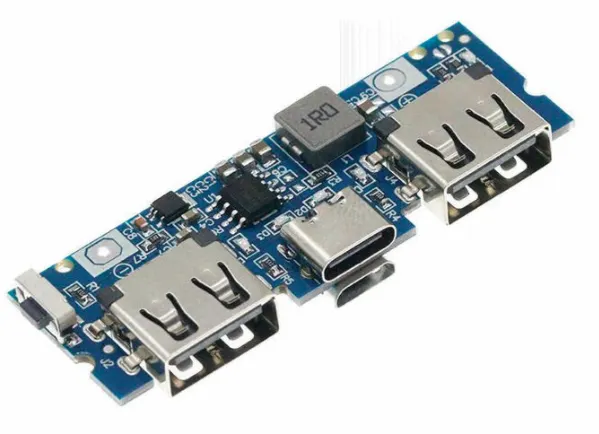

USB Type-C Interface Adapter Board PCBA

In the landscape of modern connectivity, the USB Type-C interface has established itself as the universal standard for data transmission, power delivery, and video output. As the Operations Manager of a leading PCBA manufacturing facility, I am proud to present a product that serves as the vital link in this ecosystem: our USB Type-C Interface Adapter Board PCBA.

This assembled circuit board is engineered to bridge the gap between legacy devices and modern Type-C peripherals, offering seamless connectivity solutions for consumer electronics, industrial hubs, and docking stations.

High-Speed Data & Power Delivery Integration

The defining characteristic of our Type-C Adapter PCBA is its ability to handle the complex requirements of the USB 3.1/3.2 and USB Power Delivery (PD) protocols. Our design supports high-speed data transmission rates of up to 10Gbps or 20Gbps, ensuring rapid file transfers and low-latency performance for external storage and high-bandwidth peripherals.

Furthermore, the board is designed to support PD fast-charging protocols (PD 3.0/PPS). This allows for intelligent power negotiation, enabling devices to charge safely at optimal speeds—up to 100W (20V/5A). To manage the heat generated by high-power currents, we utilize thick copper PCBs and optimized thermal via structures, ensuring the adapter remains cool and efficient even under heavy load.

Advanced Circuit Design for Signal Integrity

Type-C technology, particularly with the inclusion of Alternate Mode for video (DisplayPort/HDMI), demands exceptional signal integrity. Our engineering team utilizes advanced simulation tools to design impedance-controlled traces that minimize signal loss and crosstalk.

The PCBA layout features:

• EMI/EMC Suppression: Strategic grounding and shielding techniques to prevent electromagnetic interference, crucial for maintaining stable video output and data connections.
• ESD Protection: Integrated TVS (Transient Voltage Suppressor) diodes protect the sensitive Type-C port from electrostatic discharge, a common failure point in interface hardware. This ensures the durability required for frequent plugging and unplugging.

Compact Form Factor & Manufacturing Precision

As devices become thinner, the space allocated for internal connectors shrinks. Our USB Type-C Adapter PCBA is manufactured using High-Density Interconnect (HDI) technology. This allows for finer line widths and micro-vias, significantly reducing the board size without compromising functionality.

Our manufacturing process adheres to strict IPC-A-610 Class 2 and Class 3 standards. We employ 4-layer to 6-layer stack-ups to ensure robust mechanical strength and electrical stability. Every board undergoes rigorous Automated Optical Inspection (AOI) and functional testing to verify pin-to-pin continuity and protocol compliance before leaving the factory floor.

Versatile Application Scenarios

The versatility of this PCBA makes it an ideal component for a wide range of products:

• Laptop Docking Stations: Expanding a single Type-C port into multiple USB-A ports, HDMI outputs, and Ethernet jacks.
• Industrial Hubs: Connecting legacy industrial machinery to modern Type-C enabled industrial PCs.
• Mobile Accessories: Adapters allowing smartphones to interface with flash drives, keyboards, or external displays (OTG support).

Turnkey Solution for Global Partners

We understand that speed to market is critical. Our factory offers a comprehensive turnkey service, handling everything from PCB fabrication and component sourcing to SMT assembly and final testing. Whether you require a standard off-the-shelf adapter design or a custom solution with specific pin configurations, our R&D team is ready to support your project.

Conclusion

The USB Type-C Interface Adapter Board PCBA represents our commitment to engineering excellence and manufacturing reliability. It is the invisible hero that ensures your devices connect, charge, and communicate flawlessly. We invite global electronics brands to partner with us in building a more connected future.

Shenzhen Kingsheng Technology Co., Ltd. has rich experience and a professional technical team in PCBA. Contact KingshengPCBA today to request a quote or discuss your PCBA project.
