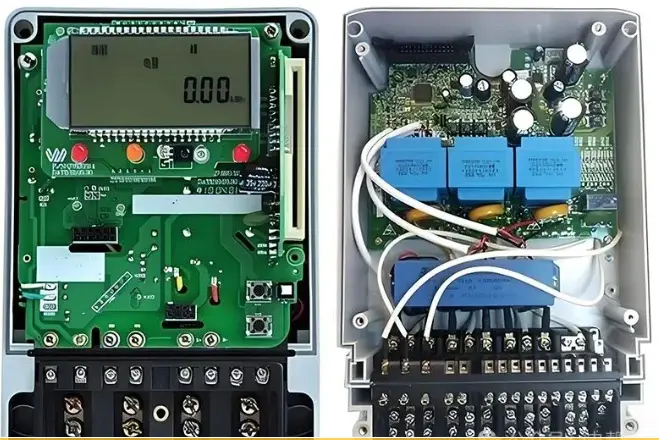

Smart Meter PCBAssembly

Inside Smart Meter PCBA Manufacturing: Professional Insights from KINGSHENG PCBA

As the global energy landscape evolves toward greater efficiency, reliability, and sustainability, smart meters have become a cornerstone of modern power infrastructure. At the heart of every smart meter is a sophisticated Printed Circuit Board Assembly (PCBA) that integrates metering accuracy, communication capabilities, and robustness to environmental stress. In this blog, we take a professional look at smart meter PCBA manufacturing — and how KINGSHENG PCBA stands out in production capability, advanced equipment, quality control, and technological expertise.

Why Smart Meter PCBAs Matter

Smart meter PCBAs serve as the brain and nervous system of smart meters. They handle:
Precision energy measurement and data acquisition
Secure communication with grid networks
Power management and compliance with regulatory standards
Protection against electrical surges and environmental factors

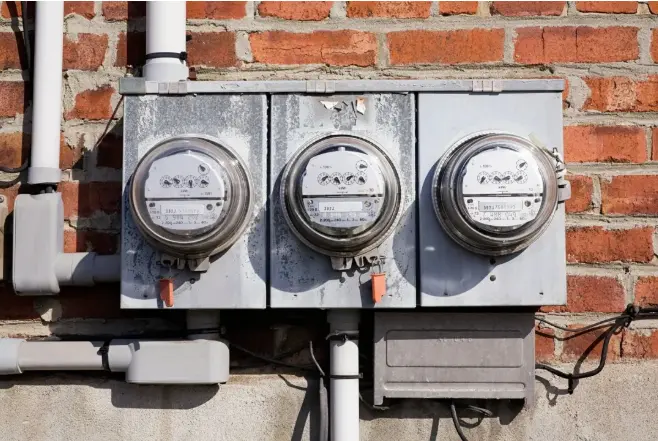

Because smart meters operate in diverse conditions — from residential panel boxes to outdoor installations — their PCBAs must meet stringent electrical, mechanical, and reliability requirements.

Production Capabilities at KINGSHENG PCBA

KINGSHENG PCBA is equipped to handle the unique demands of smart meter manufacturing with both flexibility and scale. The factory supports everything from R&D proto builds to large-volume production runs, ensuring seamless transitions from concept to mass deployment.
Key production capabilities include:
Flexible Volume Manufacturing: Accommodating prototype batches, pilot runs, and mass production without compromising lead times or quality.
Dedicated Engineering Support: Cross-functional teams in hardware design, firmware integration, and test development collaborate early in the product lifecycle — improving manufacturability and reducing time-to-market.
Assembly Lines Optimized for Mixed Technologies: Smart meter boards often combine high-speed digital chips, analog front-ends for measurement, power modules, and communication modules (e.g., RF, PLC). KINGSHENG’s lines are configured to handle these diverse requirements efficiently.
With a focus on stable supply chain management and production planning, KINGSHENG ensures that even high-volume orders are delivered on schedule.

State-of-the-Art Manufacturing Equipment

To maintain high yields and consistency in smart meter PCBA production, KINGSHENG PCBA utilizes advanced manufacturing platforms:
Automated SMT Lines: High-speed placement machines ensure precise mounting of tiny components such as microcontrollers, precision resistors, and sensor ICs.
AOI (Automated Optical Inspection): Detects placement and solder defects early in the process.
SPI (Solder Paste Inspection): Ensures right volume and placement of solder paste — critical for reliable connections.
Selective and Wave Soldering Systems: For boards incorporating both surface-mount and through-hole components.
X-Ray Inspection: Provides visibility into hidden solder joints, particularly for BGAs and other complex packages.
Environmental Stress Screening (ESS): Simulates thermal cycling and humidity to test board robustness.
These tools help KINGSHENG deliver PCBAs that meet performance expectations in demanding smart grid environments.

Rigorous Quality Control Standards

Quality control is a core pillar of KINGSHENG’s production philosophy — especially for smart meter PCBA, where accuracy and reliability are non-negotiable. Quality practices include:
Incoming Material Inspection (IQC): Verification of all components and materials against specifications.
In-Process Monitoring: Real-time checks during assembly to catch defects early.
Functional Testing: PCBA-specific tests, including measurement accuracy validation, communication protocol testing, and power management verification.
Final Quality Audit (FQA): Ensures that assembled boards meet performance benchmarks and compliance requirements.
KINGSHENG adheres to ISO-aligned quality management systems that guarantee traceability and consistency across every batch.

Advanced Technology and DFM Expertise

Early collaboration in Design for Manufacturability (DFM) is another area where KINGSHENG excels. By engaging during the design phase, engineers can optimize layouts for signal integrity, power distribution, and thermal performance — reducing the risk of costly revisions later in production.
Simulation tools, prototype validation, and iterative feedback loops help customers refine smart meter designs that are not only accurate but also manufacturable at scale.

Conclusion

Smart meter PCBA manufacturing demands precision, flexibility, and technological depth. With its robust production capacity, cutting-edge equipment, stringent quality control, and deep engineering expertise, KINGSHENG PCBA is well-positioned to support the evolving needs of smart grid OEMs and system integrators worldwide. Whether delivering pilot builds or full-scale production, KINGSHENG ensures smart meter PCBAs that are reliable, accurate, and ready for the challenges of modern energy networks.

Shenzhen Kingsheng Technology Co., Ltd. has rich experience and a professional technical team in PCBA. Contact KingshengPCBA today to request a quote or discuss your PCBA project.
