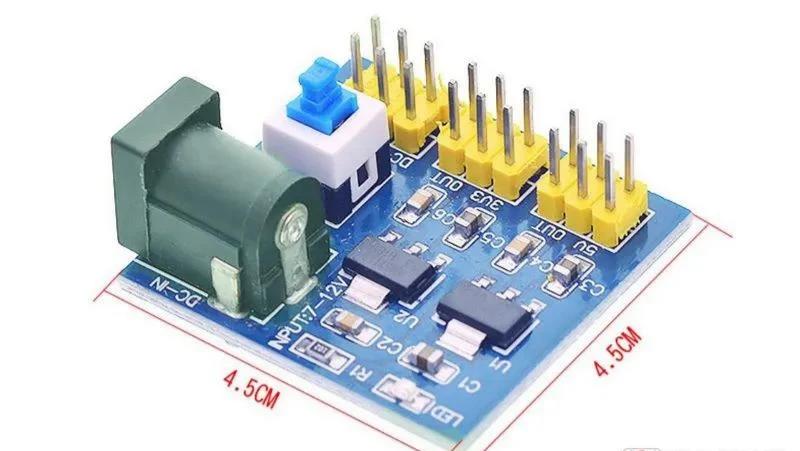

Military PCBA: The Cornerstone of Defence Equipment, PCB Specifications and Ultimate Reliability Design

In the skies where fighter jets soar, the depths where warships plough through, the cosmos where satellites orbit, and battlefields where missiles strike with precision, military PCBA (printed circuit board assemblies) serve as the ‘nerve centre’ of defence equipment, bearing the core responsibilities of signal transmission, command processing, and system control. The extreme operating conditions and zero-tolerance requirements of the military domain dictate that its PCBA must surpass the performance boundaries of conventional electronic equipment. Rigorous PCB specification standards form the core support ensuring equipment's long-term stable operation under harsh environments such as extreme temperatures, intense vibration, and high radiation. Every parameter design directly impacts national defence security and equipment combat effectiveness.

Core Specification Standards for Military PCBs: The Technical Foundation for Defence-Grade Requirements

The specification design of military PCBs centres on ‘adaptation to extreme environments, zero-fault operation, and full-lifecycle reliability’. It strictly adheres to both the National Military Standard (GJB) and international military standards, covering critical dimensions such as material selection, structural design, and manufacturing processes. This forms a comprehensive technical assurance system:


1.Base Materials and Physical Specifications
• Base Material Selection: Prioritise high-temperature-resistant, halogen-free FR-4 substrates with elevated glass transition temperature (Tg ≥ 170°C), dielectric constant ε_r = 4.2 ± 0.2, and dielectric loss tangent tanδ ≤ 0.009; For high-frequency radar and satellite communication equipment, select Rogers RO4350B/RO3010 low-loss substrates (Dk=3.38-3.48). Aerospace-grade equipment employs aluminium nitride (AlN) ceramic substrates or polyimide (PI) substrates, reducing the coefficient of thermal expansion (CTE) by 50% and achieving radiation resistance ≥100 krad (Si).
• Layer count and thickness: Ground equipment control boards typically employ 6-12 layer boards with thicknesses of 1.6-2.4mm; Aerospace equipment employs 12-30 layer high-density HDI boards, 1.2-2.0mm thick; lightweight applications may utilise rigid-flex boards, reducing thickness to 0.8mm. Missile-borne equipment, designed for extreme shock resistance, uses 4-8 layer compact designs, 1.0-1.6mm thick. • Copper thickness and surface treatment: Standard signal layers require ≥2 oz (70μm) copper thickness; power circuits and modules utilise 3-6 oz (105-210μm) copper. Aerospace-grade micro-blind via copper plating must be ≥18μm with ≥18% elongation. Surface treatment prioritises electroless nickel-palladium-gold (ENEPIG) or hard gold plating, with gold thickness ≥0.05μm. Critical contact areas may be thickened to 3-10μm to meet corrosion resistance and wear requirements. Restricted substances including halogens and lead are prohibited.

2.Precision Manufacturing and Process Specifications
• Routing and Hole Diameters: Standard military boards require minimum line width/spacing ≥0.1mm (4mil), aerospace grade may be reduced to 0.076mm (3mil), with line width tolerance ±5μm; Minimum mechanical aperture ≥0.2mm, micro-blind via minimum diameter 0.15mm, BGA pad minimum pitch 0.25mm. Laser Direct Imaging (LDI) technology ensures routing precision.
• Solder Mask and Protection: Utilises halogen-free, high-abrasion-resistant solder mask with ≥20μm thickness, adhesion verified via cross-hatch adhesion test; full-board coating with military-grade conformal coating (polystyrene or polyurethane-based) achieving IP67 protection rating, ≥500 hours salt spray corrosion resistance, meeting demands of marine, humid, and other extreme environments.
• Specialised Processes: Vacuum resin via filling achieves porosity <1.5%, complemented by thermal vias enhancing thermal conductivity to 1.8 W/m·K. Critical signal layers employ back-drilling to eliminate stub residues, with 40GHz high-frequency insertion loss ≤0.3dB/inch. All solder joints must pass metallographic section inspection with void content ≤25%, free from cracks or delamination defects.

3.Electrical and Reliability Specifications
• Impedance Control: RF link impedance 50Ω ±5%, differential signal lines (e.g., radar signals) 90Ω ±3%, millimetre-wave radar board impedance fluctuation ≤5%. Ensures high-frequency signal transmission without distortion, achieving detection accuracy of ±0.1°.
• Environmental Adaptability: Withstands over 300 cycles of wide-temperature cycling tests (-55°C to 125°C), maintains stable short-term performance at 200°C; passes 20-2000Hz random vibration testing (PSD 0.04g²/Hz) with acceleration tolerance ≥20G; airborne equipment withstands 10,000g overload shock. Following 168 hours of high-temperature/high-humidity testing (85°C/85% RH), insulation resistance remains ≥500MΩ.
• Electromagnetic Compatibility and Redundancy Design: Incorporates an internal copper shielding layer with a ground via array (Via Fence), achieving ≥40dB radiation interference attenuation and ESD immunity ≥±25kV (air discharge); Core signals employ dual-path redundant routing with a breakage rate <0.01%, reducing fault switching time to microsecond levels and achieving Mean Time Between Failures (MTBF) exceeding 100,000 hours.
Scenario-Specific Specification Adaptation and Industry Compliance Requirements
The operational environments and functional requirements of diverse military equipment necessitate differentiated PCB specification adaptations. Concurrently, all products must undergo rigorous standard certification and quality control to ensure security and reliability for defence applications:

4.Typical Scenario Specification Adaptation
• Aerospace equipment (fighter avionics, satellite payloads): 12-20 layer mixed-voltage HDI boards (FR4 + Rogers), thickness 1.2-1.6mm, employing 3oz thick copper combined with ceramic substrates; Impedance controlled to 50Ω ±3%, radiation resistance ≥150krad; passes 2000-hour HALT accelerated life testing, meeting 15+ years of in-orbit operational requirements.
• Ground weapon systems (tanks, missile guidance): 6-10 layer high-Tg FR4 boards, thickness 1.6-2.0mm, 4oz copper thickness for power loops; incorporates sand and dust resistance design, passes 500-hour salt spray testing; redundant power design with overvoltage/overcurrent protection, response latency ≤10ms, ensuring precise command execution.
• **Naval equipment (shipboard communications, sonar systems)**: 8-12 layer moisture-proof and salt-fog resistant PCBs, thickness 2.0-2.4mm, with hard gold plating surface finish; incorporates electromagnetic shielding structure to withstand complex shipboard electromagnetic interference; withstands 500 hours of humid heat ageing testing, adapted for marine environments with high humidity and salt fog.
• Individual soldier equipment (communication terminals, night vision devices): 4-6 layer lightweight rigid-flex boards, ≤1.0mm thick, achieving 15% weight reduction; low-power design with standby consumption ≤30mW; operates across -55°C to 70°C temperature range, withstands 10G vibration/shock, suitable for demanding field conditions.

5.Industry Compliance and Certification Standards
Military PCBA must strictly adhere to core national defence standards, including GJB 362C-2021 General Specification for Rigid Printed Circuit Boards, GJB 5807A-2019 Design Requirements for Printed Circuit Boards in Military Electronic Equipment, GJB 548B-2005 ‘Test Methods and Procedures for Microelectronic Devices’, whilst referencing the requirements of US military standard MIL-PRF-31032 Class 3.
Manufacturers must hold GJB9001C military quality management system certification, AS9100D aerospace quality system certification, and NADCAP critical process accreditation. A comprehensive traceability system must be established, with raw material batches, process parameters, and inspection data retained for ≥15 years. Products involving classified information must meet Level 3 or higher security clearance certification. The inspection process implements a three-tier verification system, encompassing 100% electrical performance testing and visual inspection. Periodic sampling is conducted for destructive testing such as thermal stress and mechanical shock, ensuring ‘zero-defect’ product delivery.

Technical Trends: Specification Upgrades Driving Intelligent Innovation in Military Equipment

Amid rapid advancements in defence technology, military PCB specifications are evolving towards four key directions: high-frequency capability, integration, extreme environment resistance, and domestic production. Regarding high-frequency performance, PCB technology supporting 6G terahertz bands is maturing, with impedance control precision enhanced to ±3% to meet signal transmission demands for next-generation radar and communication systems. Integration sees 26-layer or higher multilayer boards combined with System-in-Package (SiP) technology, enabling 1024-channel RF link integration and reducing equipment volume by over 30%. Extreme environment resistance extends temperature tolerance to -65°C to 250°C and radiation resistance to 200 krad, adapting to more demanding scenarios like deep space exploration.

Domestic substitution has become a core trend, with breakthroughs achieved in key technologies such as high-Tg substrates, low-loss high-frequency materials, and thick-copper processes. The domestic sourcing rate for critical materials exceeds 85%. Concurrently, the transition to green manufacturing accelerates, with bio-based epoxy resin applications rising to 30% and wastewater recycling rates reaching 75%. Looking ahead, AI-driven electromagnetic simulation and process optimisation will see widespread adoption. Combined with micro-CT scanning and automated defect repair technology, yield rates will rise to 99.8%, providing robust hardware support for the intelligent, lightweight, and long-life characteristics of military equipment.

The specifications and standards of military PCBA directly reflect national defence technological prowess and serve as the core guarantee for equipment combat effectiveness. From micron-level routing precision to reliability validation under extreme conditions, each stringent parameter requirement demonstrates the utmost reverence for national defence security. Amidst the wave of strengthening the military through technology, military PCBs will empower defence equipment to evolve towards higher precision, extended range, and enhanced adaptability with more advanced specifications and more reliable performance, fortifying the electronic core barrier safeguarding national sovereignty and territorial integrity.
