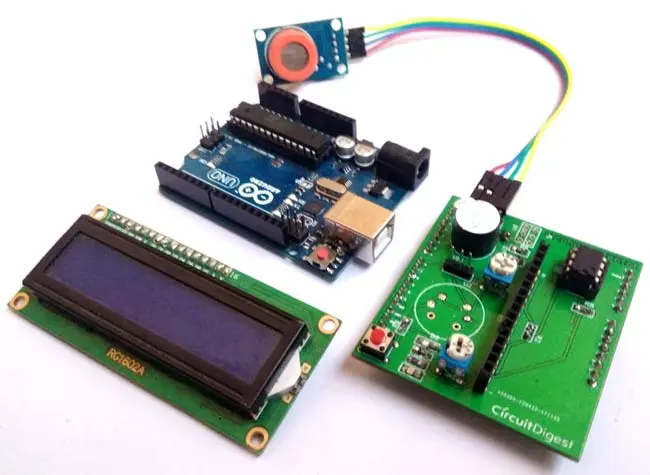

Alcohol Breath Analyser PCB Assembly

What's Key Challenges in Precision PCBA Manufacturing for Alcohol Breath Analyzers?

With years of experience in the PCB assembly industry, we recently completed several orders for core PCBAs used in alcohol breath analyzers. These medical-grade electronic products, which relate to public safety and health, impose far more stringent requirements on production and manufacturing than ordinary consumer electronics. Today, I would like to share three key production challenges and our strategies for addressing them.

Challenge 1: Micro-Precision Soldering of Sensor Interfaces

The core of an alcohol breath analyzer is an electrochemical sensor (for high-precision law enforcement/medical models) or a semiconductor sensor (for civilian models). The connection points between the sensor and the PCBA often use miniaturized interfaces, and the pad size can be as small as 0.3mm, making them extremely sensitive to thermal stress.
Our Solutions:
*By adopting high-precision solder paste printing technology and using laser-cut steel meshes (with a thickness of 0.08mm), the amount of solder paste on the micro pads can be precisely controlled. *A dedicated carrier is designed for the sensor module to achieve local insulation during reflow soldering, preventing the sensors from being subjected to thermal shock.

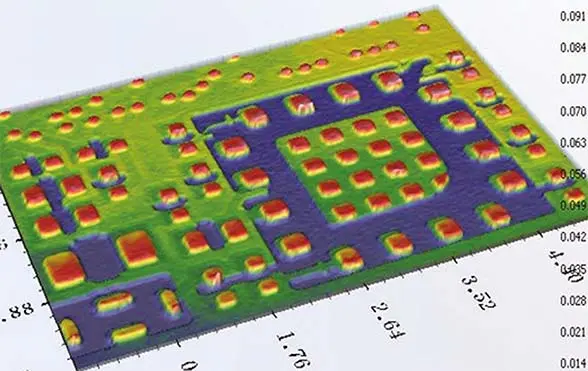

*3D SPI (Solder Paste Inspection) is introduced for comprehensive inspection to ensure that the volume, area and height of the solder paste at each solder joint are within the tolerance range.

Challenge 2: Anti-Interference Layout of Analog Signal Chain

The sensor output of the breathalyzer is a weak analog signal (typically in the nA current or mV voltage range), which is extremely susceptible to noise interference from digital circuits. The PCBA layout directly affects the accuracy and stability of the final measurement.
Our Design and Manufacturing Collaboration Strategy:
*During the early stage of collaboration with the client, it was recommended to adopt the "simulation island" layout - concentrating the front-end amplification circuits of the sensors in a continuous grounded plane area, and physically isolating it from the digital power domain.
*At the production stage, strict control is exercised over the continuity of impedance, and impedance tests are conducted on key analog traces.
* After assembly, a basic noise spectrum test report is provided for each unit, not limited to on-off tests only.

Challenge 3: Full Traceability for Regulatory Compliance

As a Class II medical device (or equivalent), the alcohol breathalyzer PCBA must meet traceability requirements of the FDA, CFDA, or equivalent agencies.
A minor process deviation can cause an entire batch of products to fail certification testing.
Our traceability system is structured as follows:
*Each PCBA is laser-etched with a unique QR code, including production batch, date, and process parameter codes.
*Key materials (such as ADC chips, reference voltage sources) enable two-way traceability from supplier batches to finished PCBA products.
*SMT process parameters (such as furnace temperature curves, mounting pressure, etc.) are automatically associated with production batch files.
*Provide customers with manufacturing records that comply with ISO 13485 standards, directly supporting their system certification.

Production Insights

Through these projects, we have gained a deep understanding that the success of medical electronics PCBA begins with design, is achieved through manufacturing, and is solidified by the system. Simply relying on high-end equipment is not enough to solve problems. What is more needed is a deep understanding of device characteristics by process engineers and the persistent control of every detail by the quality system.
Today, this batch of PCBAs is used in pre-driving screening programs and portable self-testing devices in multiple cities. Every time we see our work ultimately serving public safety, the weight of this profession feels particularly real. On the road of precision manufacturing, every microampere of accuracy and every solder joint of reliability is our silent commitment.
